Factory Configuration
What Comes with the OMI5000 Series Open HMI?
The OMI5000 Series Open HMI arrives from the factory with the following:

One OMI5000 Series Open HMI, preloaded with Microsoft Windows CE 5.0.
Not included with the OMI5000 Series Open HMI:

HMI configuration software must be purchased separately. The OMI5000 Series can be
configured with any CE-compatible HMI configuration software, such as WebStudio.

Power supply and cabling must be purchased separately. Contact Maple Systems for more
information.

Development tools for creating Windows CE applications.

USB Driver, Software Development Kit (SDK) and the Operations Manual are available for
download from the Drivers and Tools section of the Support Center on the Maple Systems
website.

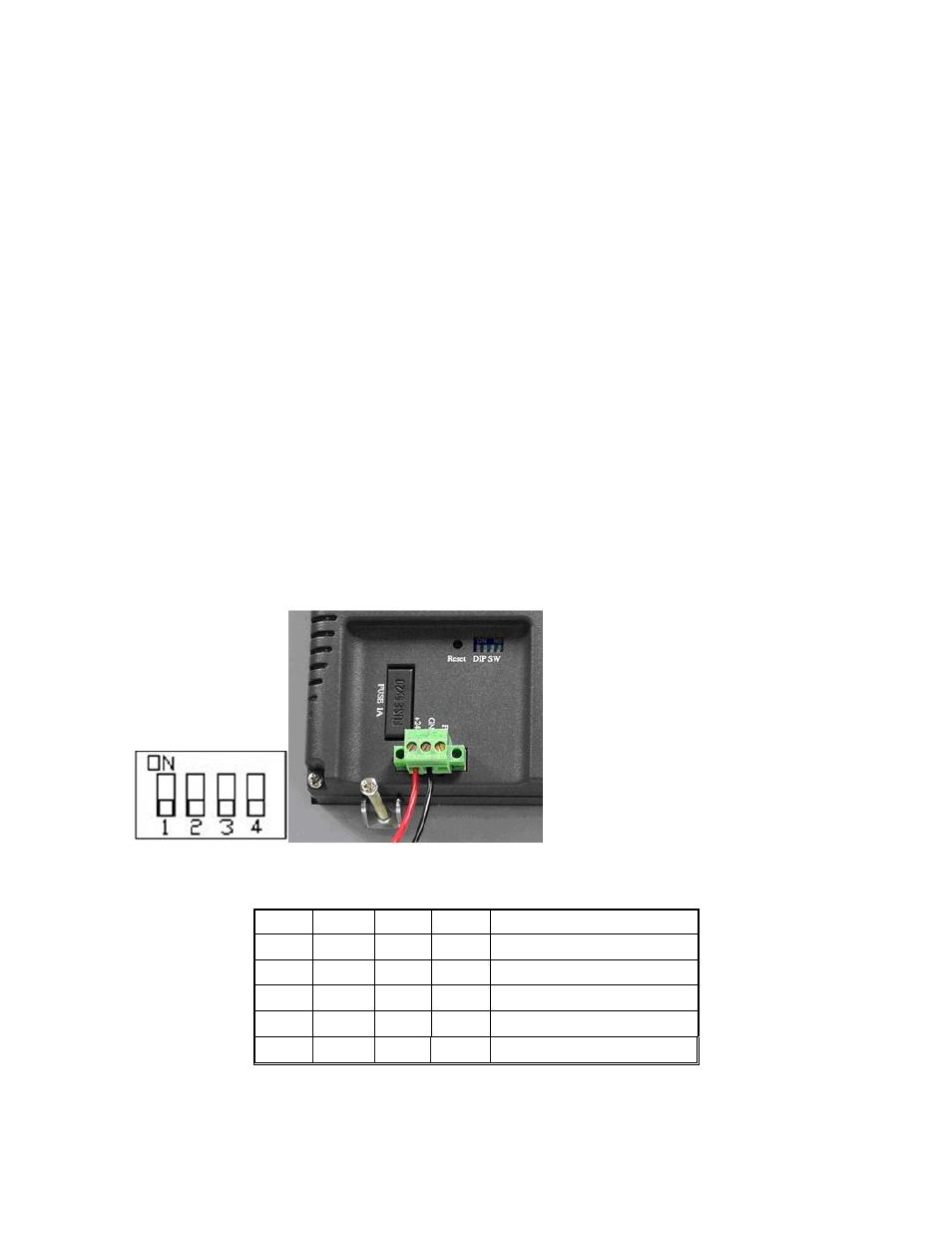

DIP Switch Settings
The following table shows factory-configured DIP switch settings of the OMI5000 Series
DIP Switch Modes
SW1 SW2 SW3 SW4 Mode
ON OFF OFF OFF Touchscreen Calibration
OFF ON OFF OFF Reserved
OFF OFF ON OFF Boot loader mode
OFF OFF OFF ON Reserved
OFF OFF OFF OFF Normal Operation
