PIcon Program & Report
Rev 2.0 June 2006 Page 30

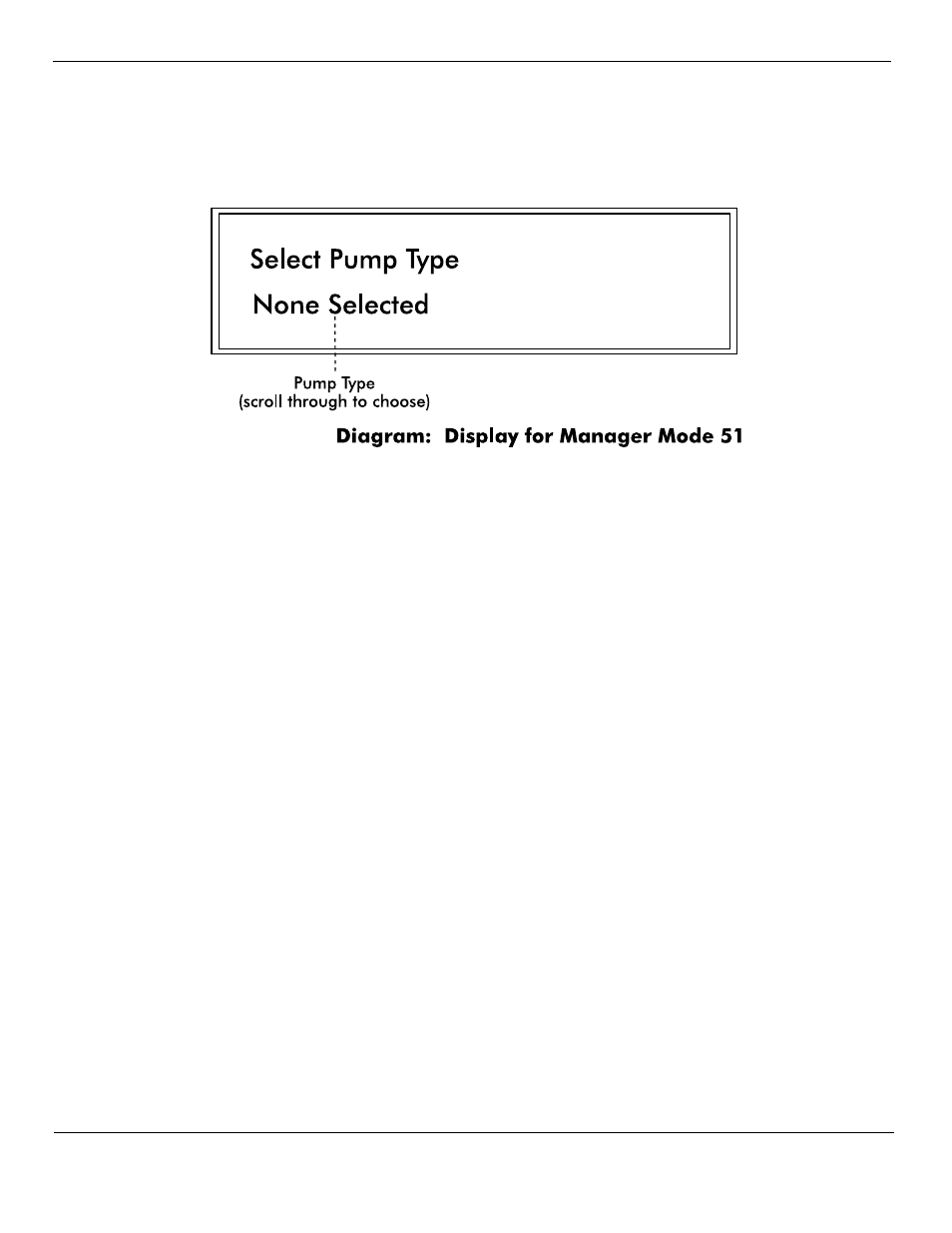

Mode 51 — Select Dispenser Type (Manager only)
To enter this mode from the M 0, mode number prompt, enter <51> on the keypad and press
. The default, indicated on the screen, is None Selected for dispenser type.
Select Pump — To select the dispenser brand, press to scroll through thebrands, stopping when your dispenser’s brand name appears. Press to exit this mode. You will be prompted for the option of clearing memoryback to factory defaults. Press to clear all totals or to decline thisoption and exit the mode. The PIcon will reset.Mode 60 — Pump Configuration (Manager only)Pump specific, advanced configuration. To enter Pump Configuration mode from the M0,mode number prompt, enter <60> on the keypad and press <ENTER>. Press <0>, <1>, etc.on the numeric keypad to select the configurable item and then press <A/B> to togglebetween the options for the selected item.Contact your dealer for assistance.Mode 70 — ATG Activation (Manager only)To enter Automatic Tank Gauging mode from the M 0, mode number prompt, enter <70> onthe keypad and press . Press to toggle between Enable and Disableselection. This mode available only on PIcons configured with AUX Port. Pages: 1 … 32 33 34 35 36 37 wrong Brand wrong Model non readable See also other documents in the category Progressive International Electronics Sensors: PI DBox (35 pages) FuelDirect (4 pages) Omega Lite (16 pages) Omega JR (15 pages) PIcon II Console (44 pages) #1 (19 pages) C2000 (54 pages) Configurator (10 pages) PCXZ (55 pages) RLM (60 pages) RLM 2 (42 pages) Sitemap
brands, stopping when your dispenser’s brand name appears.
Press to exit this mode. You will be prompted for the option of clearing memory
back to factory defaults. Press to clear all totals or to decline this
option and exit the mode. The PIcon will reset.
Mode 60 — Pump Configuration (Manager only)
Pump specific, advanced configuration. To enter Pump Configuration mode from the M0,
mode number prompt, enter <60> on the keypad and press <ENTER>. Press <0>, <1>, etc.
on the numeric keypad to select the configurable item and then press <A/B> to toggle
between the options for the selected item.
Contact your dealer for assistance.
Mode 70 — ATG Activation (Manager only)
To enter Automatic Tank Gauging mode from the M 0, mode number prompt, enter <70> on
the keypad and press . Press to toggle between Enable and Disable
selection. This mode available only on PIcons configured with AUX Port.
