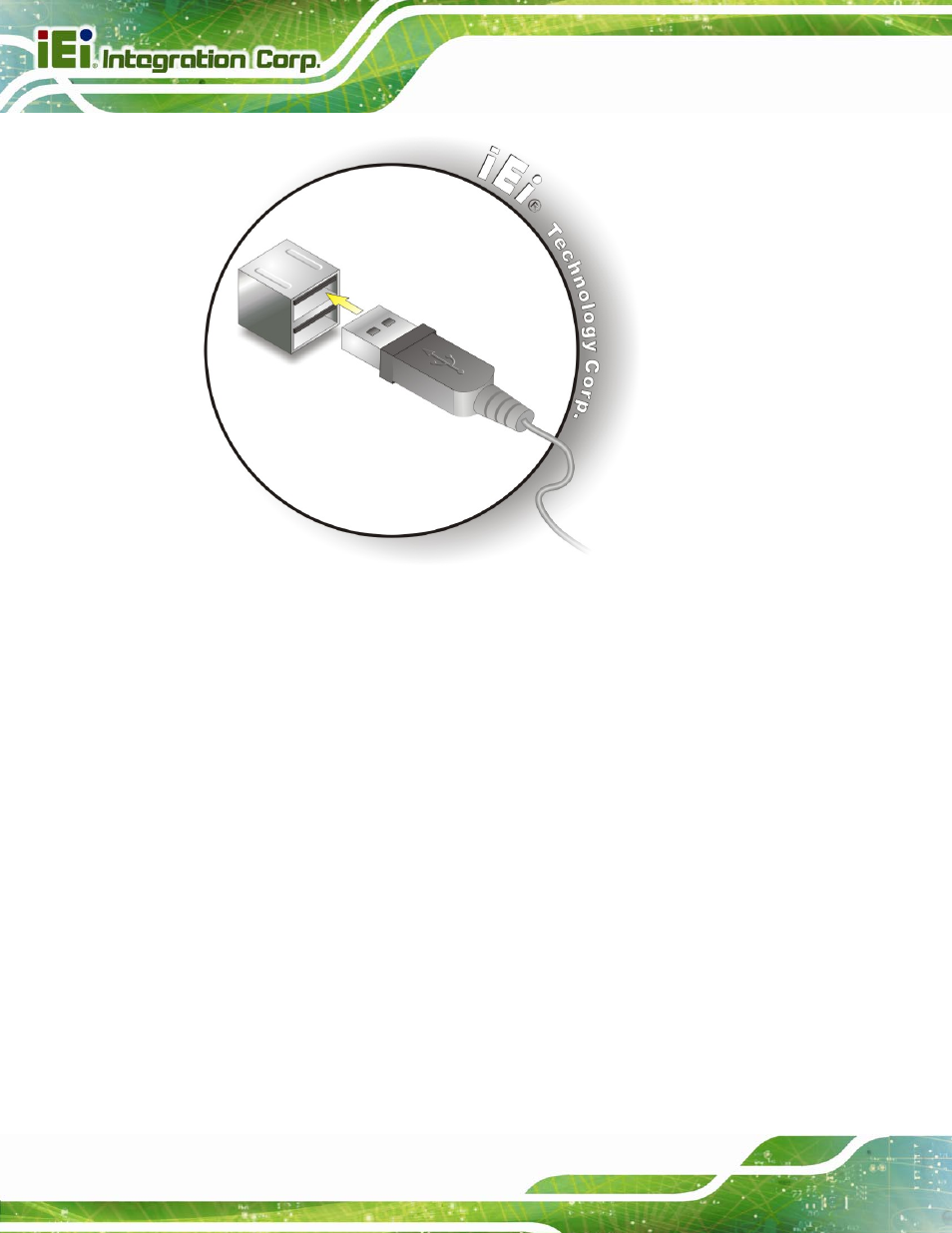

Figure 3-26: USB Device Connection

Step 3:

Insert the device connector. Once aligned, gently insert the USB device

connector into the onboard connector.

Step 0:

3.13.7 VGA Monitor Connection

The AFL2-15A-H61 has a single female DB-15 connector on the external peripheral

interface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect

a monitor to the AFL2-15A-H61, please follow the instructions below.

Step 1:

Locate the female DB-15 connector. The location of the female DB-15

connector is shown in Chapter 1.

Step 2:

Align the VGA connector. Align the male DB-15 connector on the VGA screen

cable with the female DB-15 connector on the external peripheral interface.

Step 3:

Insert the VGA connector. Once the connectors are properly aligned with the

insert the male connector from the VGA screen into the female connector on the
