AFL2-15A-H61

Page 123

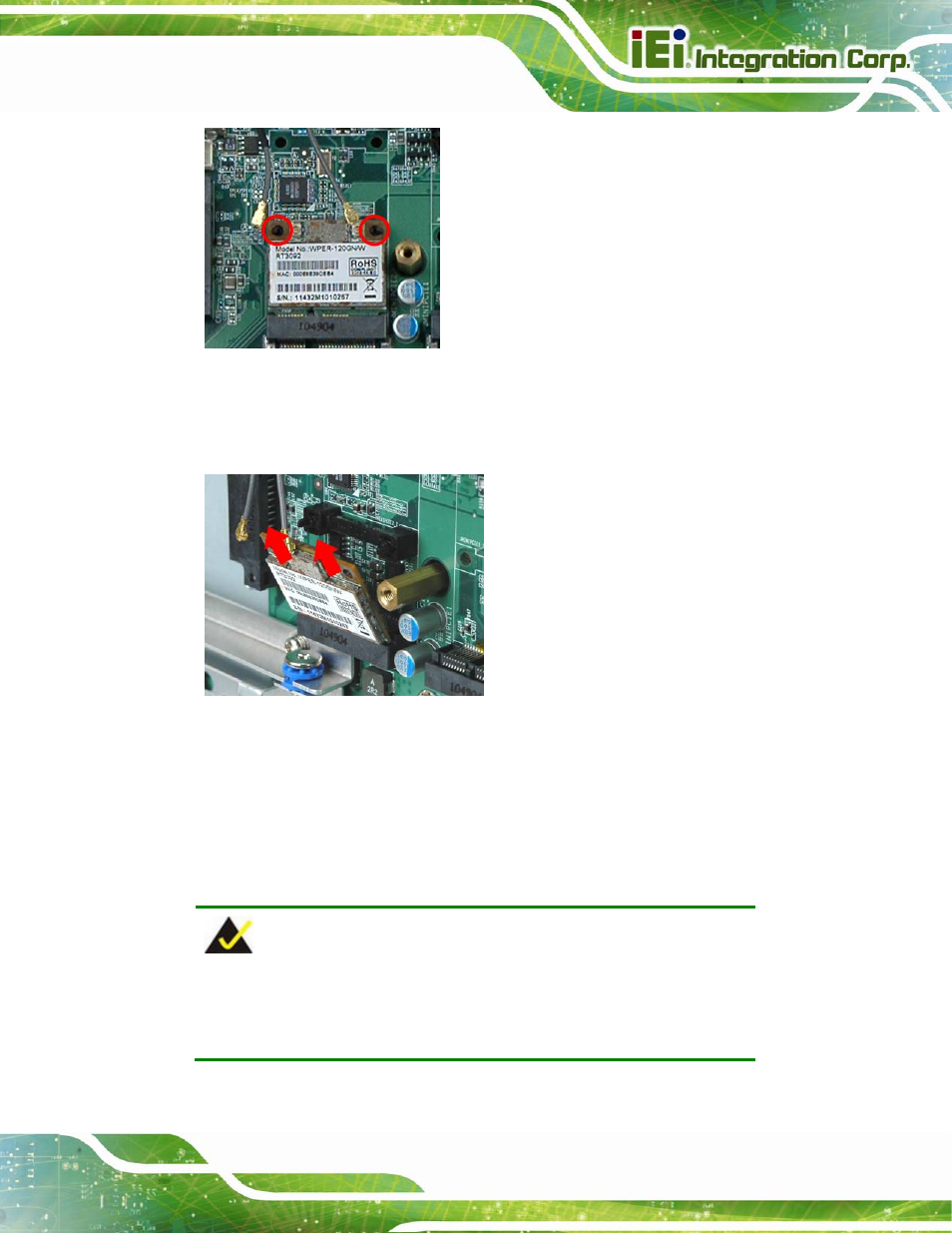

Figure 7-6: Releasing the WLAN Card

Step 8:

Grasp the WLAN card by the edges and carefully pull it out of the socket (Figure

7-7).

Figure 7-7: Removing the WLAN card

Step 9:

Install a new WLAN card by inserting the card into the slot at an angle

Step 10:

Push the WLAN card down until the spring retainer clips lock into place.

Step 11:

Connect the main (1) and auxiliary (2) antennas. The main antenna is indicated

with a strip of black electrical tape. See Figure 7-8.

NOTE:

To ensure the WLAN module functions correctly, please make sure the

WLAN antennas are attached in the proper configuration.
