3.12.2 Arm Mounting

The AFL2-15A-H61 is VESA (Video Electronics Standards Association) compliant and can

be mounted on an arm with a 100mm interface pad. To mount the AFL2-15A-H61 on an

arm, please follow the steps below.

Step 1:

The arm is a separately purchased item. Please correctly mount the arm onto

the surface it uses as a base. To do this, refer to the installation documentation

that came with the mounting arm.

NOTE:

When purchasing the arm please ensure that it is VESA compliant and that

the arm has a 100 mm interface pad. If the mounting arm is not VESA

compliant it cannot be used to support the AFL2-15A-H61 flat bezel panel

PC.

Step 2:

Once the mounting arm has been firmly attached to the surface, lift the flat bezel

panel PC onto the interface pad of the mounting arm.

Step 3:

Align the retention screw holes on the mounting arm interface with those in the

flat bezel panel PC (Figure 3-17).

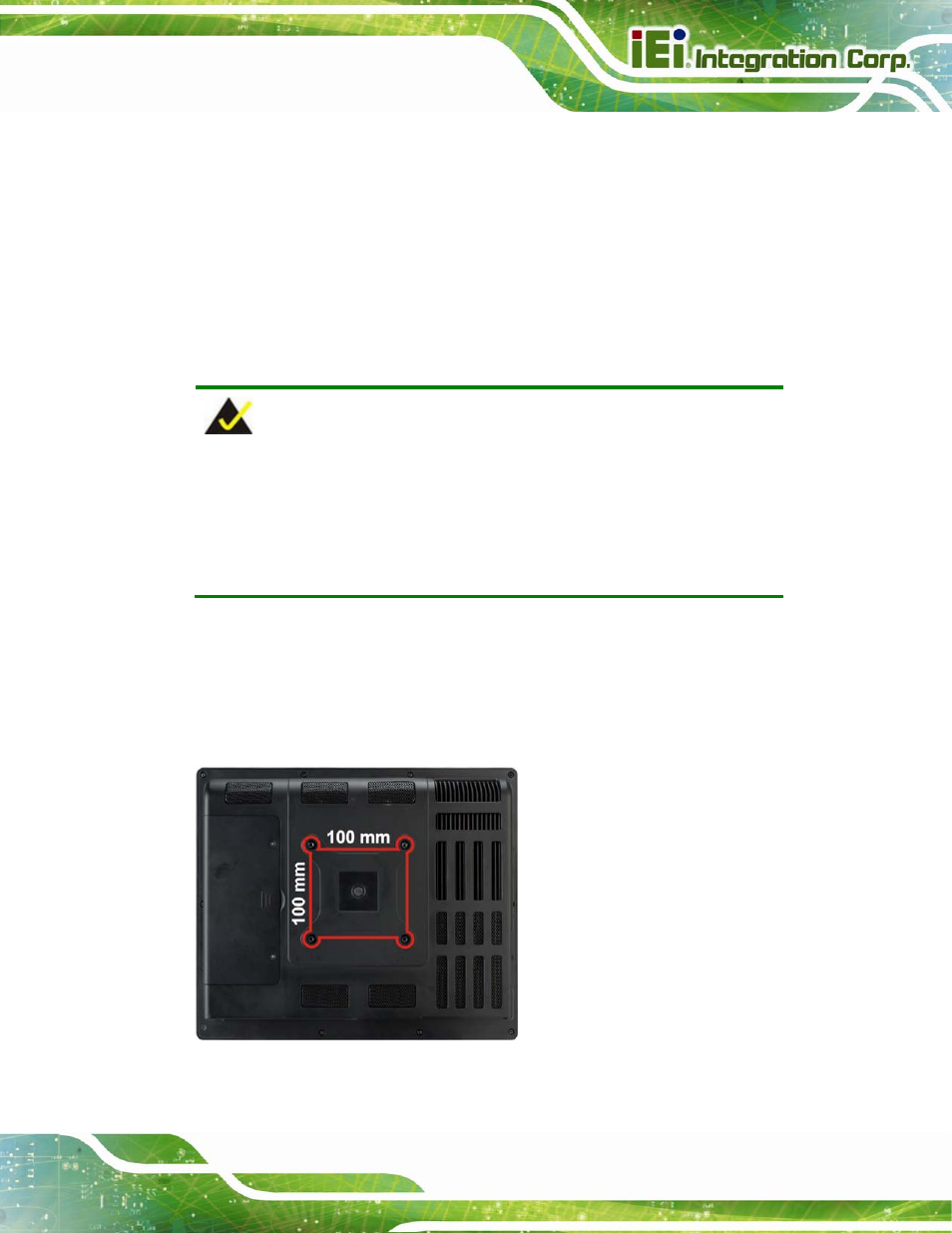

Figure 3-17: Arm Mounting Retention Screw Holes
