AFL2-15A-H61

Page 32

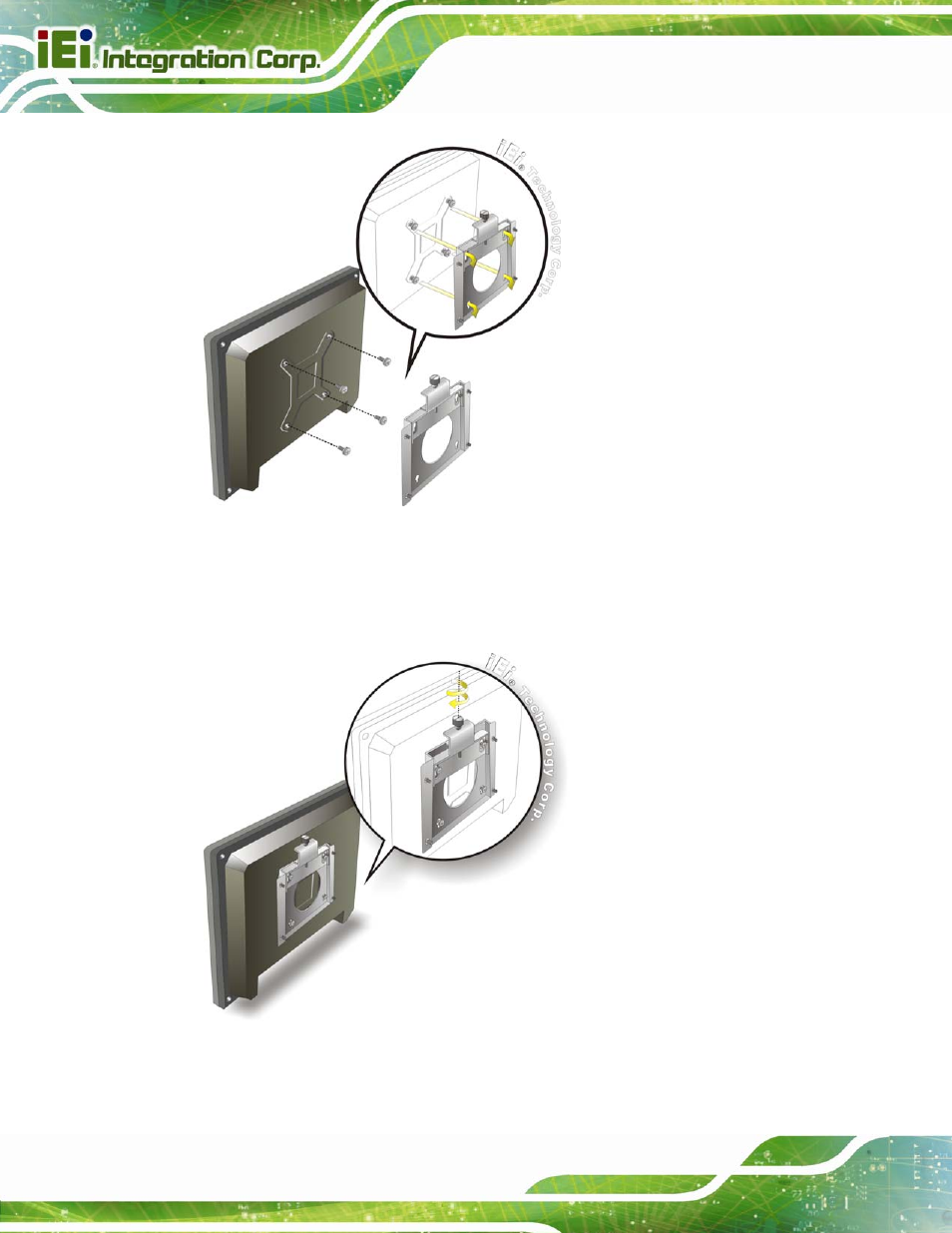

Figure 3-15: Chassis Support Screws

Step 9:

Secure the panel PC by fastening the retention screw of the wall-mounting

bracket. (Figure 3-16).

Figure 3-16: Secure the Panel PC
