AFL2-15A-H61
Page 35

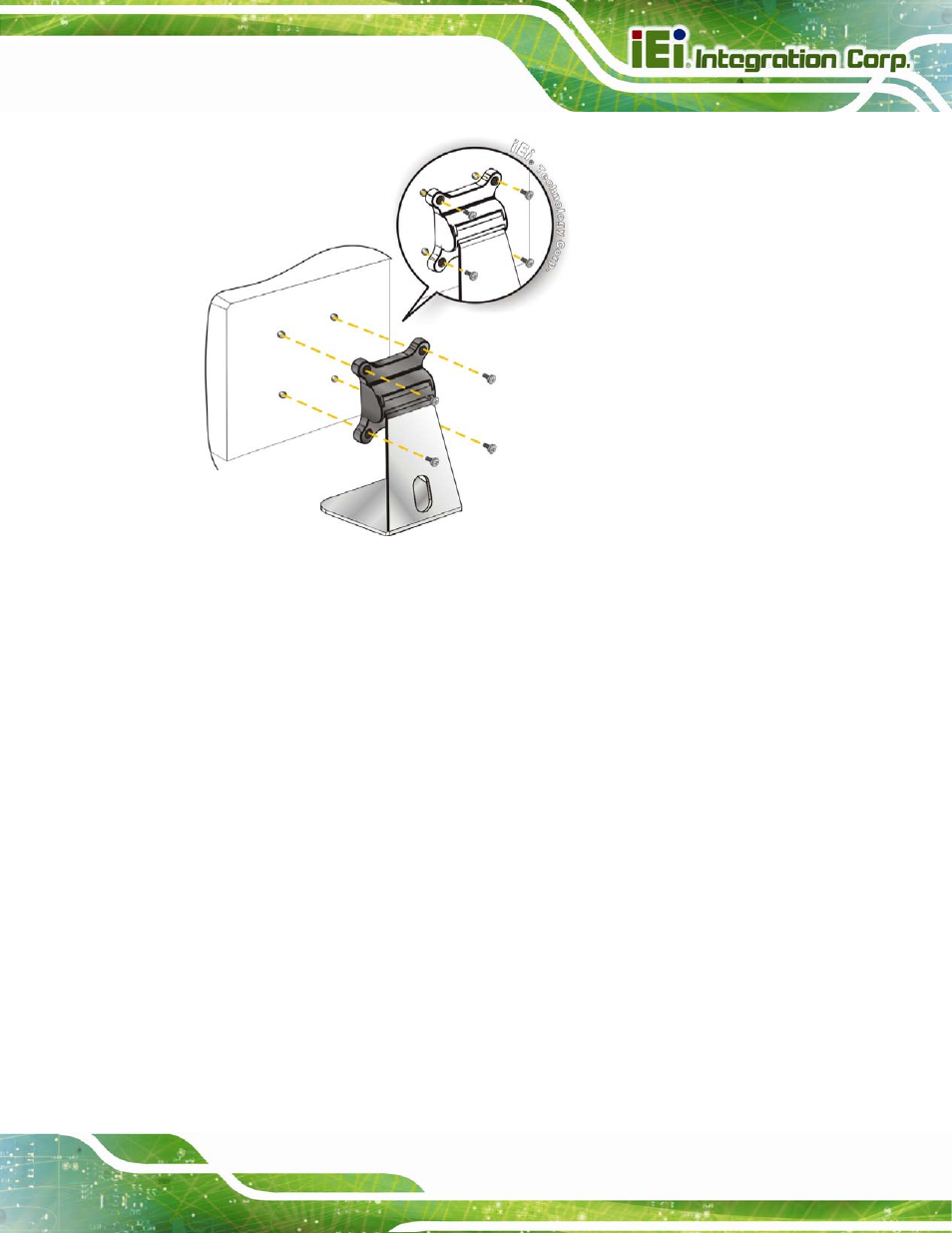

Figure 3-19: Stand Mounting (Stand-A/Bxx)
3.13 External Peripheral Device Connection
The following external peripheral devices can be connected to the external peripheral
interface connectors.
ƒ Audio devices
ƒ HDMI devices
ƒ RJ-45 Ethernet cable connector
ƒ Serial port devices
ƒ USB devices
ƒ VGA monitor
To install these devices, connect the corresponding cable connector from the actual
device to the corresponding AFL2-15A-H61 external peripheral interface connector
making sure the pins are properly aligned.
