AFL2-15A-H61

Page 24

3.5 CF Card Installation

The AFL2-15A-H61 has one CF Type II slot under the HDD bay. To install the CF card,

follow the instructions below.

Step 1:

Remove two (2) retention screws from the HDD cover (Figure 3-1).

Step 2:

Remove the HDD cover from the device.

Step 3:

Locate the CF slot (Figure 3-5).

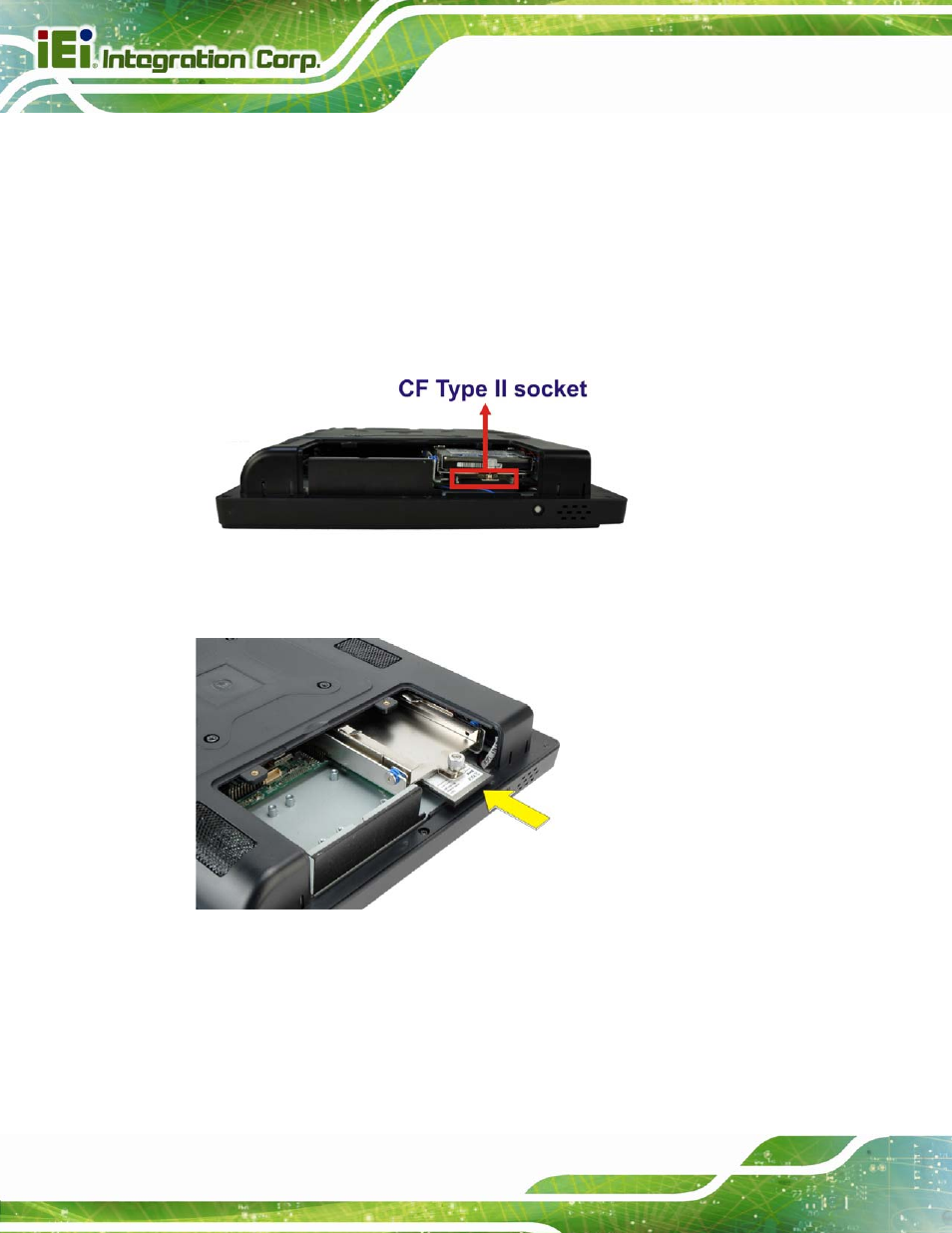

Figure 3-5: CF Card Location

Step 4:

Insert a CF card into the slot (Figure 3-6).

Figure 3-6: Insert CF Card

Step 5:

Replace the HDD cover and secure it using two (2) retention screws.
