Step 4:

Secure the AFL2-15A-H61 to the interface pad by inserting four retention screws

through the mounting arm interface pad and into the AFL2-15A-H61.

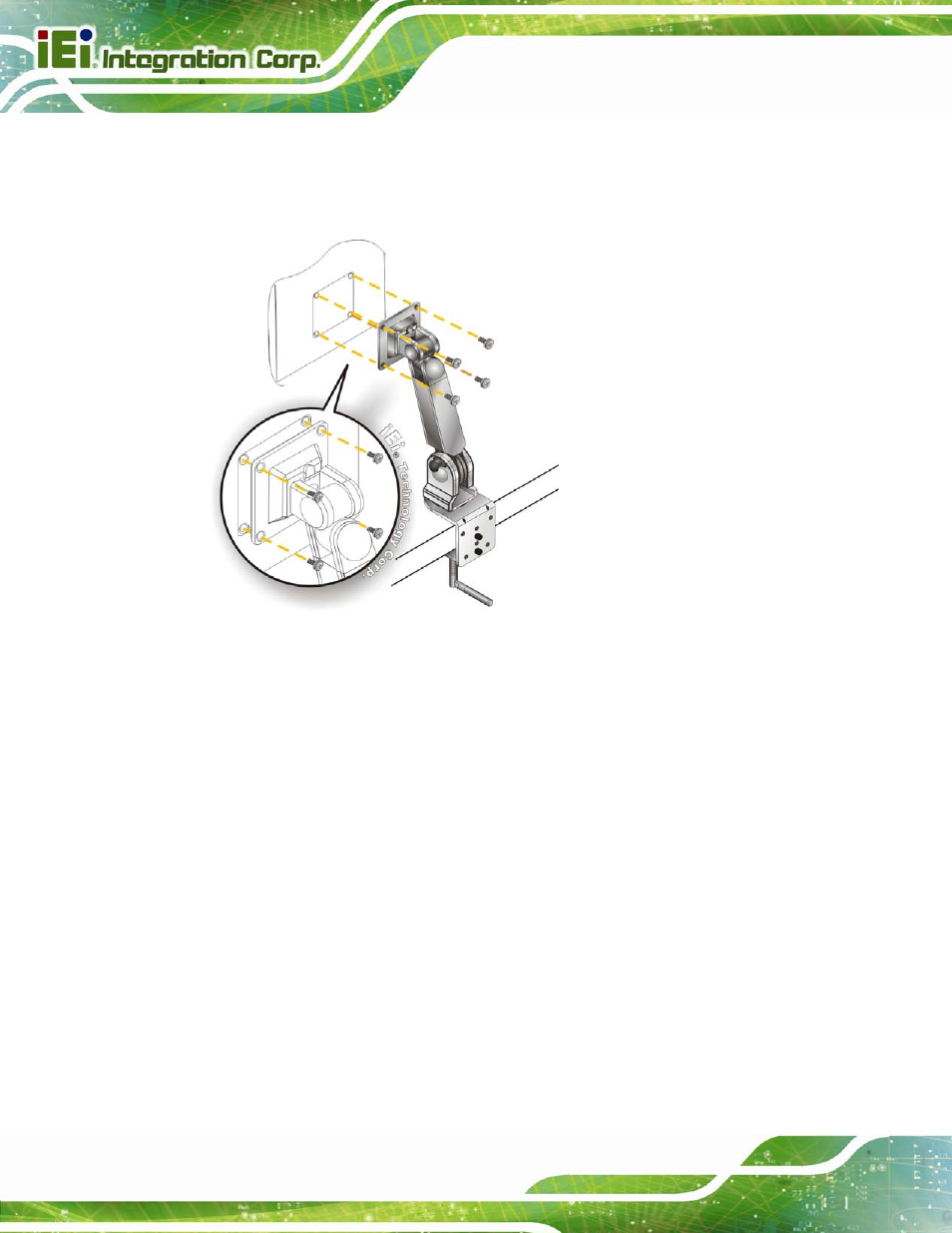

Figure 3-18: Arm Mounting (ARM-11-RS)

3.12.3 Stand Mounting

To mount the AFL2-15A-H61 using the stand mounting kit, please follow the steps below.

Step 1:

Locate the screw holes on the rear of the AFL2-15A-H61. This is where the

bracket will be attached.

Step 2:

Align the bracket with the screw holes.

Step 3:

To secure the bracket to the AFL2-15A-H61 insert the retention screws into the

screw holes and tighten them.
