AFL2-15A-H61

Page 38

the RJ-45 connectors on the AFL2-15A-H61. See Figure 3-22.

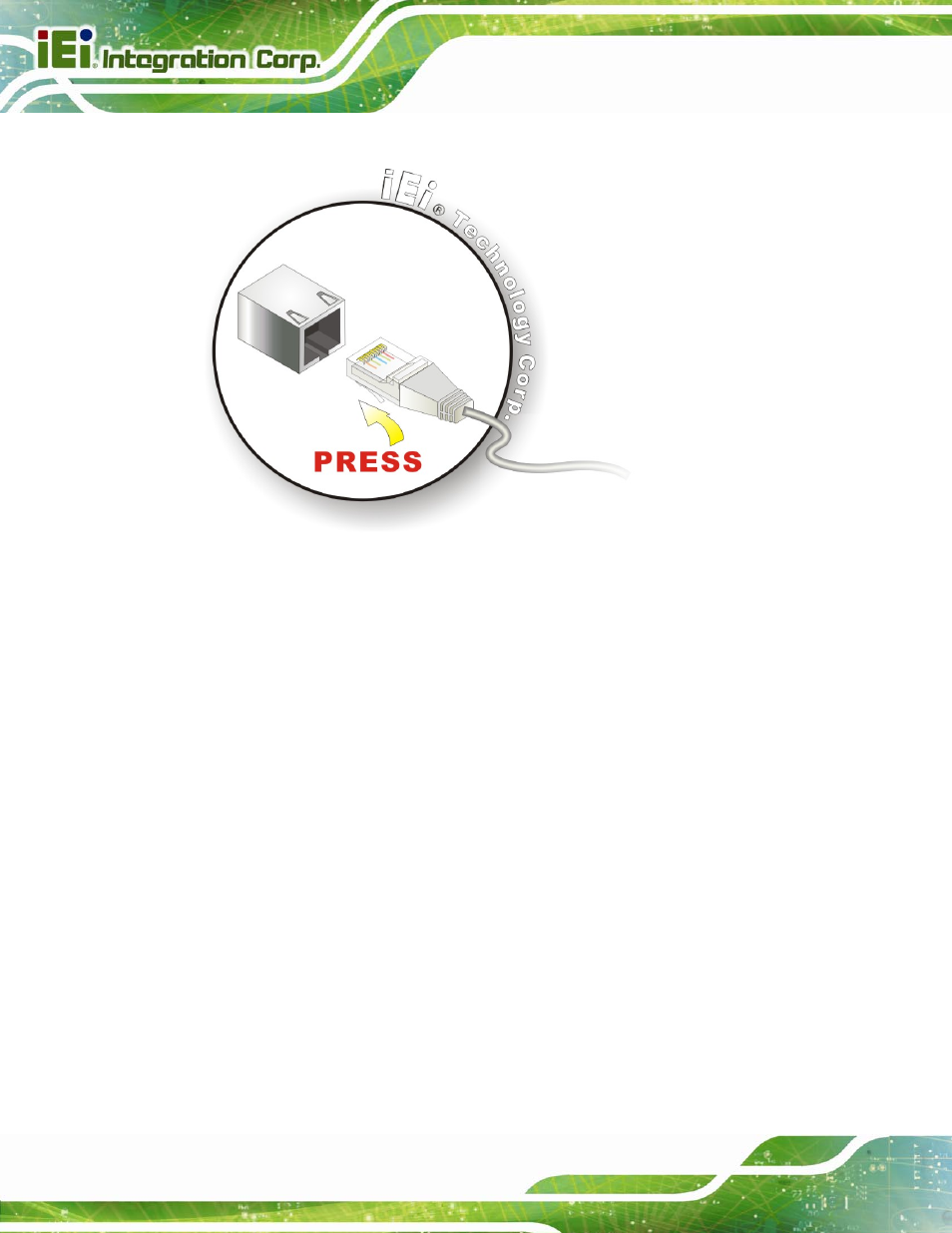

Figure 3-22: LAN Connection

Step 3:

Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN

cable RJ-45 connector into the external interface.

3.13.4 Serial Device Connection

There are two external RS-232 DB-9 connectors and one RS-422/485 RJ-45 connector for

serial device connection. Follow the steps below to connect a serial device to the

AFL2-15A-H61.

3.13.4.1 DB-9 Serial Port Connection

Follow the steps below to connect a serial device to the DB-9 connector of the

AFL2-15A-H61 panel PC.

Step 1:

Locate the DB-9 connector. The locations of the DB-9 connectors are shown

in Chapter 1.
