Step 3:

Install the RFID reader module in the location shown in Figure 3-9 by two

retention screws.

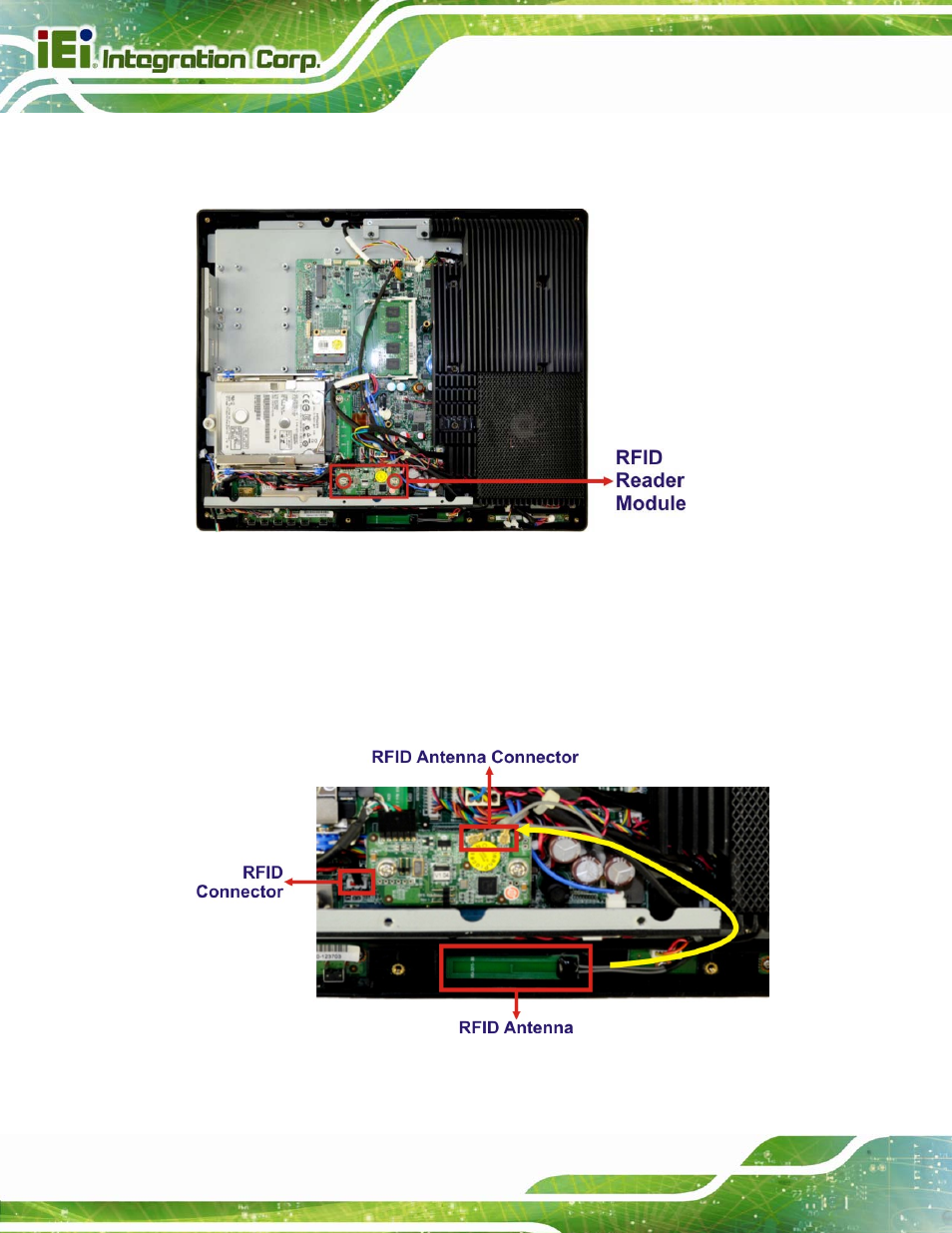

Figure 3-9: RFID Reader Module Installation

Step 4:

Connect the RFID module to the RFID connector on the main board (Figure

3-10). The RFID connector pinouts are listed in Section 8.2.17.

Step 5:

Place the RFID antenna on the location shown in Figure 3-10. Connect the

RFID antenna to the RFID antenna connector on the RFID module.

Figure 3-10: RFID Reader Connection
