Step 1:

Undo the CompactFlash® cover fastening screw.

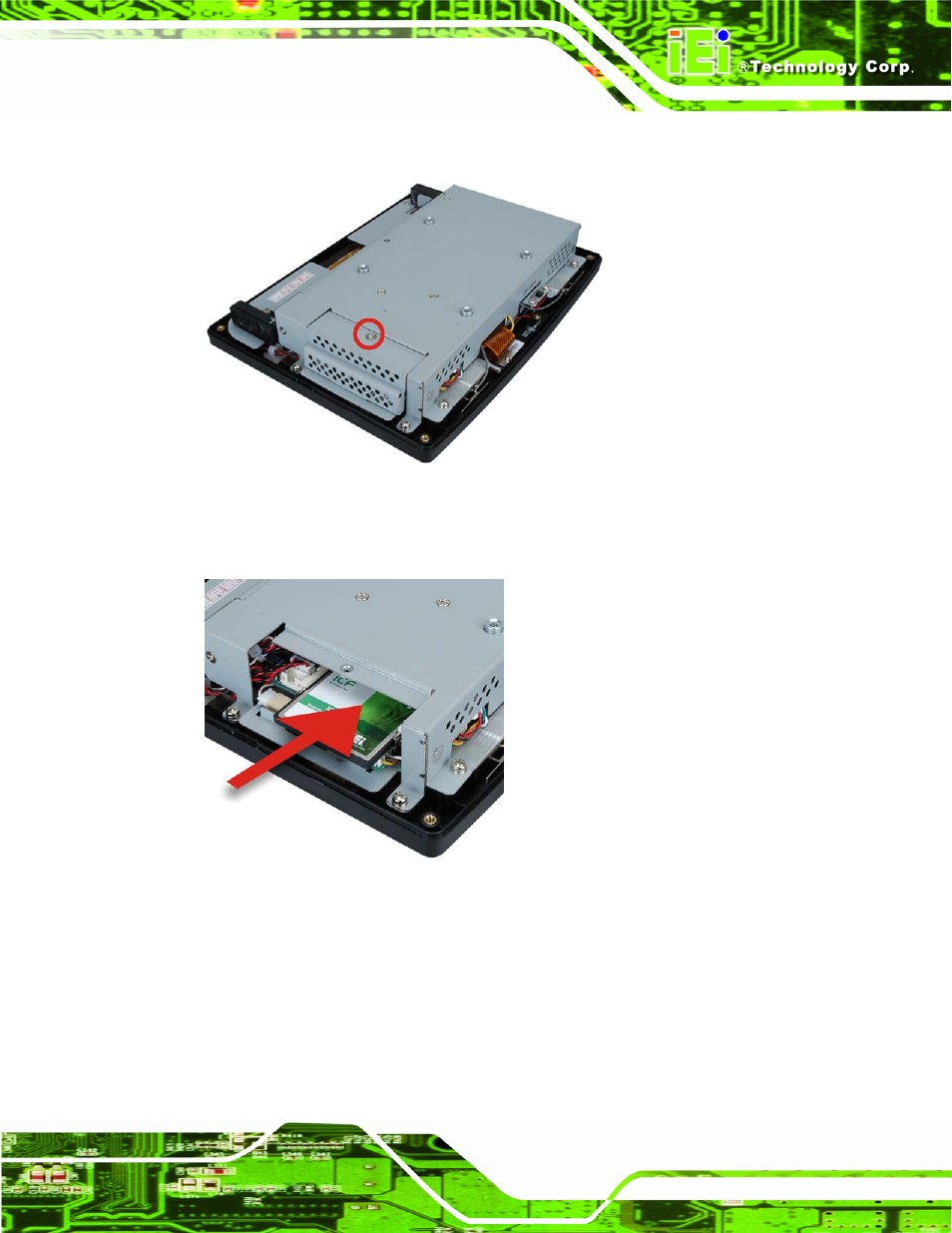

Figure 4-3: CompactFlash® Card Cover

Step 2:

Slide the CompactFlash® card into the slot under the cover.

Figure 4-4: CompactFlash® Install

Step 3:

Once installed, replace the cover and screw.

Step 4:

Install the drivers as required.
