Figure 3-5: internal cover removal, Figure 3-6: internal components – IEI Integration AFL-F08A v1.01 User Manual

Page 30

AFL-F08A Panel PC

Page 18

Step 1:

Undo the fastening screws indicated by the arrows and circles below.

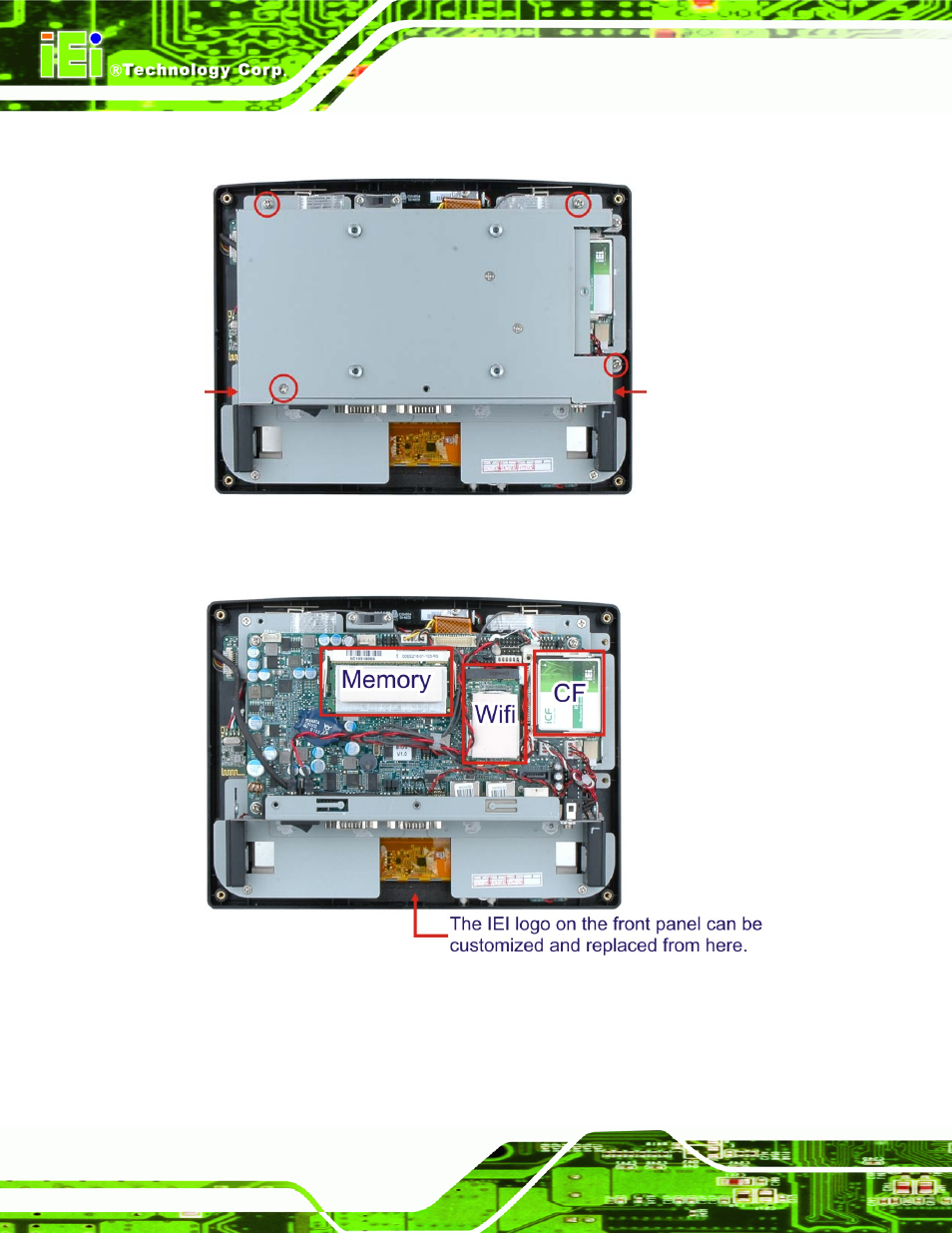

Figure 3-5: Internal Cover Removal

Step 2:

The internal parts will all be viewable.

Figure 3-6: Internal Components

Step 3:

To reinstall the cover, just replace it and fasten the screws.

Step 0:
