AFL-F08A Panel PC

Page 42

Step 2:

Remove the DDR memory module by pulling both the spring retainer clips

outward from the socket.

Step 3:

Grasp the DDR memory module by the edges and carefully pull it out of the

socket.

Step 4:

Install the new DDR memory module by pushing it into the socket at an angle

Step 5:

Gently pull the spring retainer clips of the SO-DIMM socket out and push the

rear of the DDR memory module down (Figure 4-2).

Step 6:

Release the spring retainer clips on the SO-DIMM socket. They clip into place

and secure the DDR memory module in the socket.

Step 0:

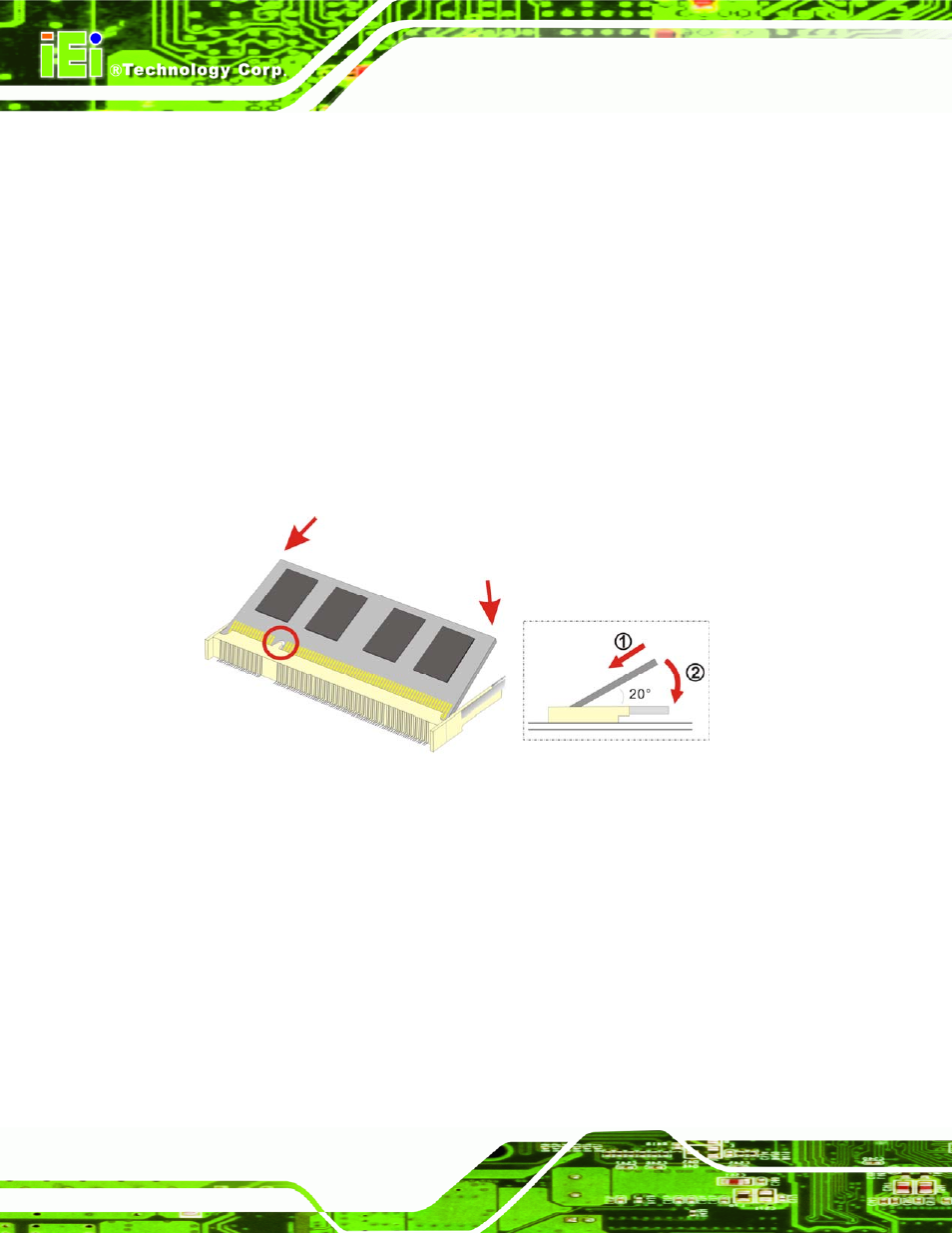

Figure 4-2: DDR SO-DIMM Module Installation

4.5.2 CF Card Replacement

To install the CompactFlash® card, the cover plate must be removed. To remove the

cover plate and install the CompactFlash® card, follow the instructions below.
