AFL-F08A Panel PC
Page 2
1.1 Overview

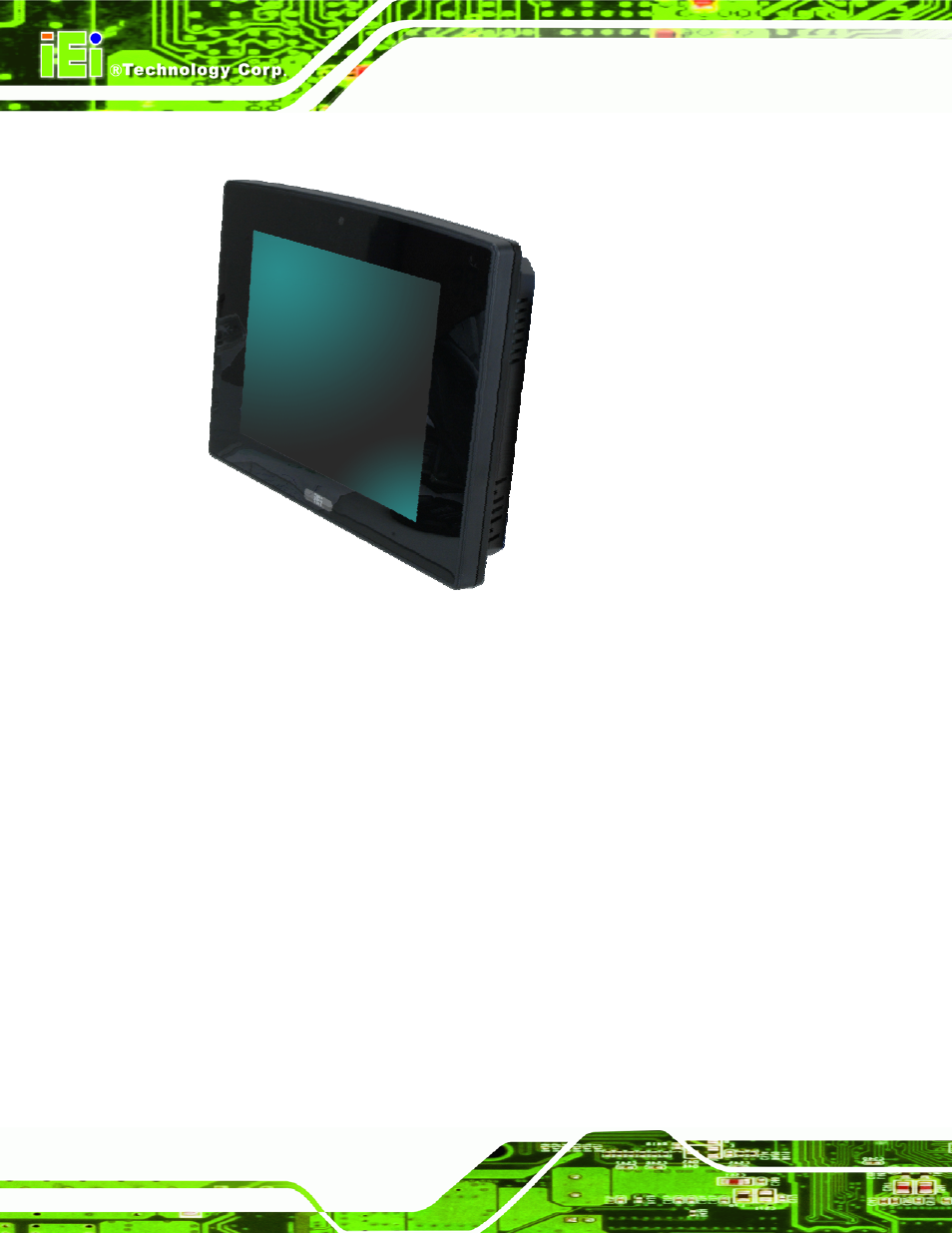

Figure 1-1: AFL-F08A Flat Panel PC
The AFL-F08A is an 8" panel PC with a frameless front panel, designed to fit in any office,
business or home and featuring all the inputs and outputs for full integration. The version
with multitouch screen allows complex onscreen activities to be performed by simply using
both fingers to indicate movements and actions.
At the heart of the system is the 1.6 GHz Intel® Atom™ N270 processor, offering low
power in a powerful package. The chipset is rounded off with the Intel® 945GSE and
Intel® 945GSE.
The system also offers a multimedia experience with a built-in camera, microphone and
speakers. Other peripherals include two USB ports, an RS-232 port, an RS-232/422/485
port, two LAN ports and an audio output. Wireless networking capabilities include
Bluetooth 2.0 and 802.11 b/g.
