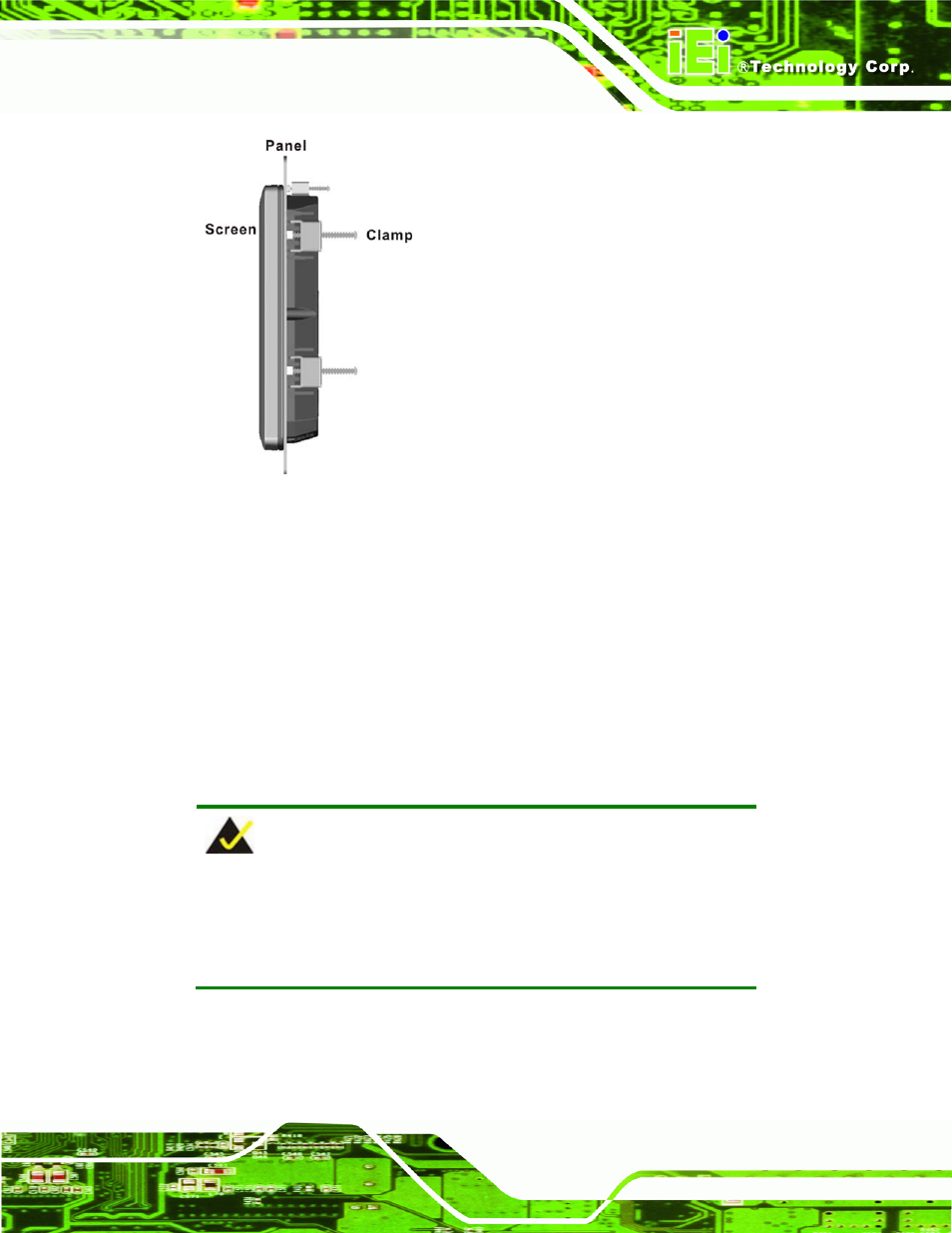

Figure 3-16: Tighten the Panel Mounting Clamp Screws
3.8.3 Arm Mounting
The AFL-F08A is VESA (Video Electronics Standards Association) compliant and can be
mounted on an arm with a 75mm interface pad. To mount the AFL-F08A on an arm,
please follow the steps below.
Step 1: The arm is a separately purchased item. Please correctly mount the arm onto
the surface it uses as a base. To do this, refer to the installation documentation
that came with the mounting arm.
NOTE:
When purchasing the arm please ensure that it is VESA compliant and
that the arm has a 75 mm interface pad. If the mounting arm is not
VESA compliant it cannot be used to support the AFL-F08A.
Step 2: Once the mounting arm has been firmly attached to the surface, lift the system
onto the interface pad of the mounting arm.
