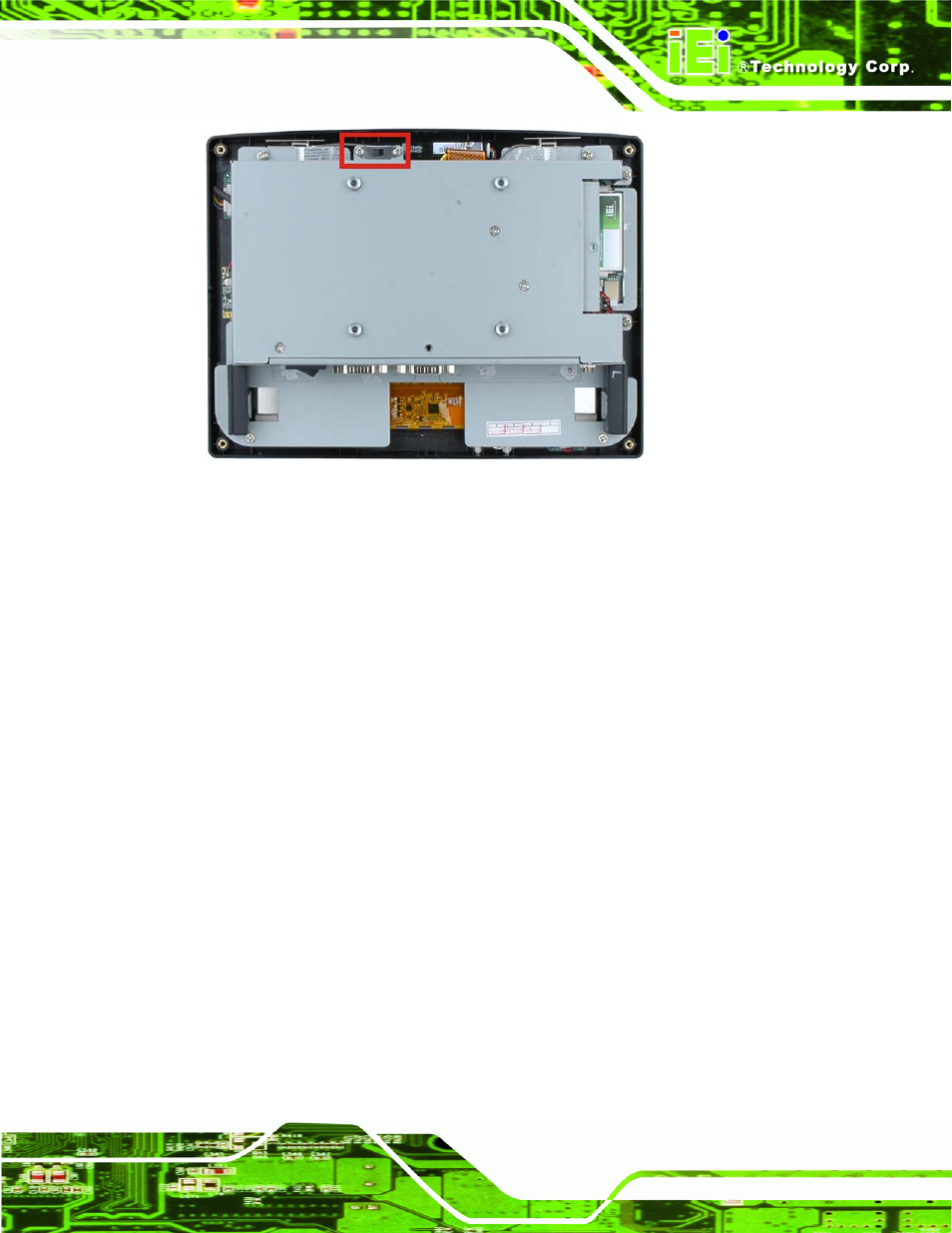

Figure 3-7: AT/ATX Power Selection Switch
3.7.4 Clear CMOS Jumper
Jumper Label: J_CMOS1
Jumper Type: 2-pin header
Jumper Settings: See Table 3-3
Jumper Location: See Figure 3-8
If the AFL-F08A fails to boot due to improper BIOS settings, the clear CMOS jumper
clears the CMOS data and resets the system BIOS information. To do this, use the jumper
cap to close the pins for a few seconds then remove the jumper clip.
If the “CMOS Settings Wrong” message is displayed during the boot up process, the fault
may be corrected by pressing the F1 to enter the CMOS Setup menu. Do one of the
following:
ƒ Enter the correct CMOS setting
ƒ Load Optimal Defaults
ƒ Load Failsafe Defaults.
After having done one of the above, save the changes and exit the CMOS Setup menu.
The clear CMOS jumper settings are shown in Table 3-3.
