AFL-F08A Panel PC

Page 41

4.3 Turn off the Power

WARNING:

Failing to turn off the system before opening can cause permanent

damage to the system and serious or fatal injury to the user.

Before any maintenance procedures are carried out on the system, make sure the system

is turned off.

4.4 Opening the System

Remove the rear cover as shown in Chapter 3.4.

Remove the internal cover as shown in Chapter 3.6.

4.5 Replacing Components

4.5.1 Memory Module Replacement

If the memory module fails, follow the instructions below to replace the memory module.

Step 1:

Locate the memory module indicated below.

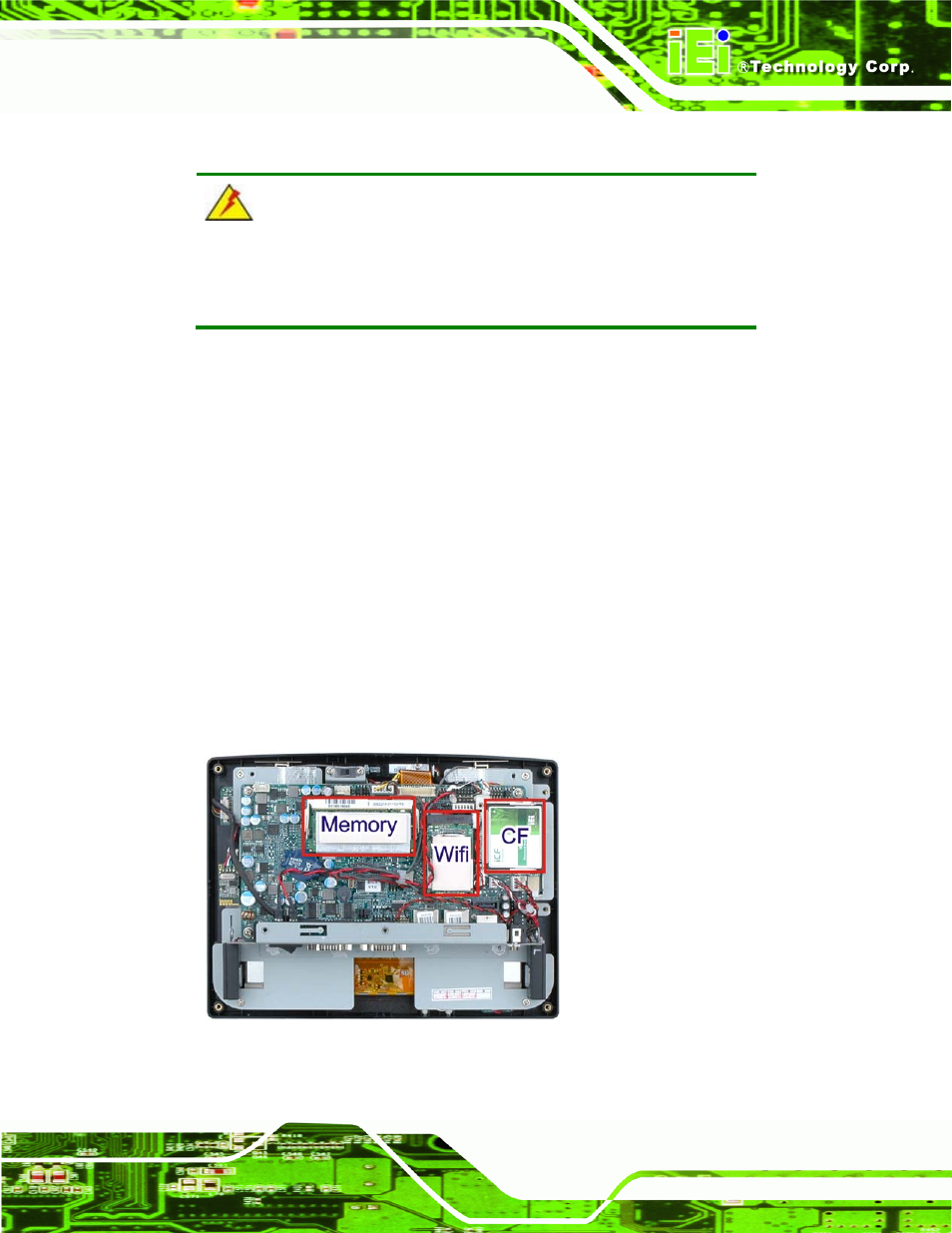

Figure 4-1: AFL-F08A SO-DIMM Socket Location
