AFL-F08A Panel PC

Page 30

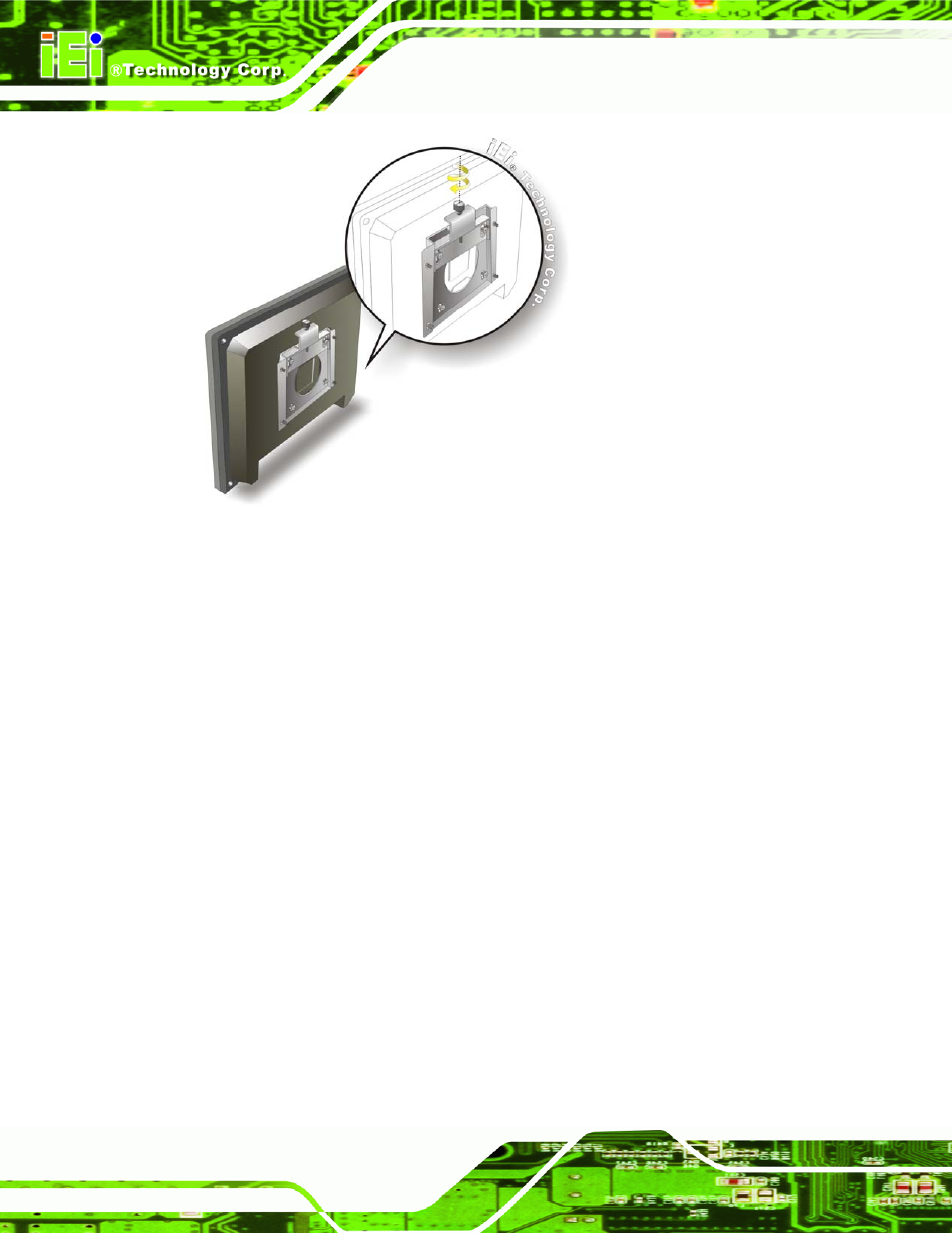

Figure 3-15: Secure the Panel PC

3.8.2 Panel Mounting

To mount the AFL-F08A into a panel, please follow the steps below.

Step 10:

Select the position on the panel to mount the flat panel PC.

Step 11:

Cut out a section from the panel that corresponds to the rear panel dimensions

of the flat panel PC. Take care that the panel section that is cut out is smaller

than the overall size of the frame but larger than the rear part of the system

body.

Step 12:

Slide the system through the hole until the frame is flush against the panel.

Step 13:

Insert the panel mounting clamps into the pre-formed holes along the edges of

the chassis, behind the frame.

Step 14:

Tighten the screws that pass through the panel mounting clamps until the plastic

caps at the front of all the screws are firmly secured to the panel.

Step 0:
