AFL-F08A Panel PC

Page 36

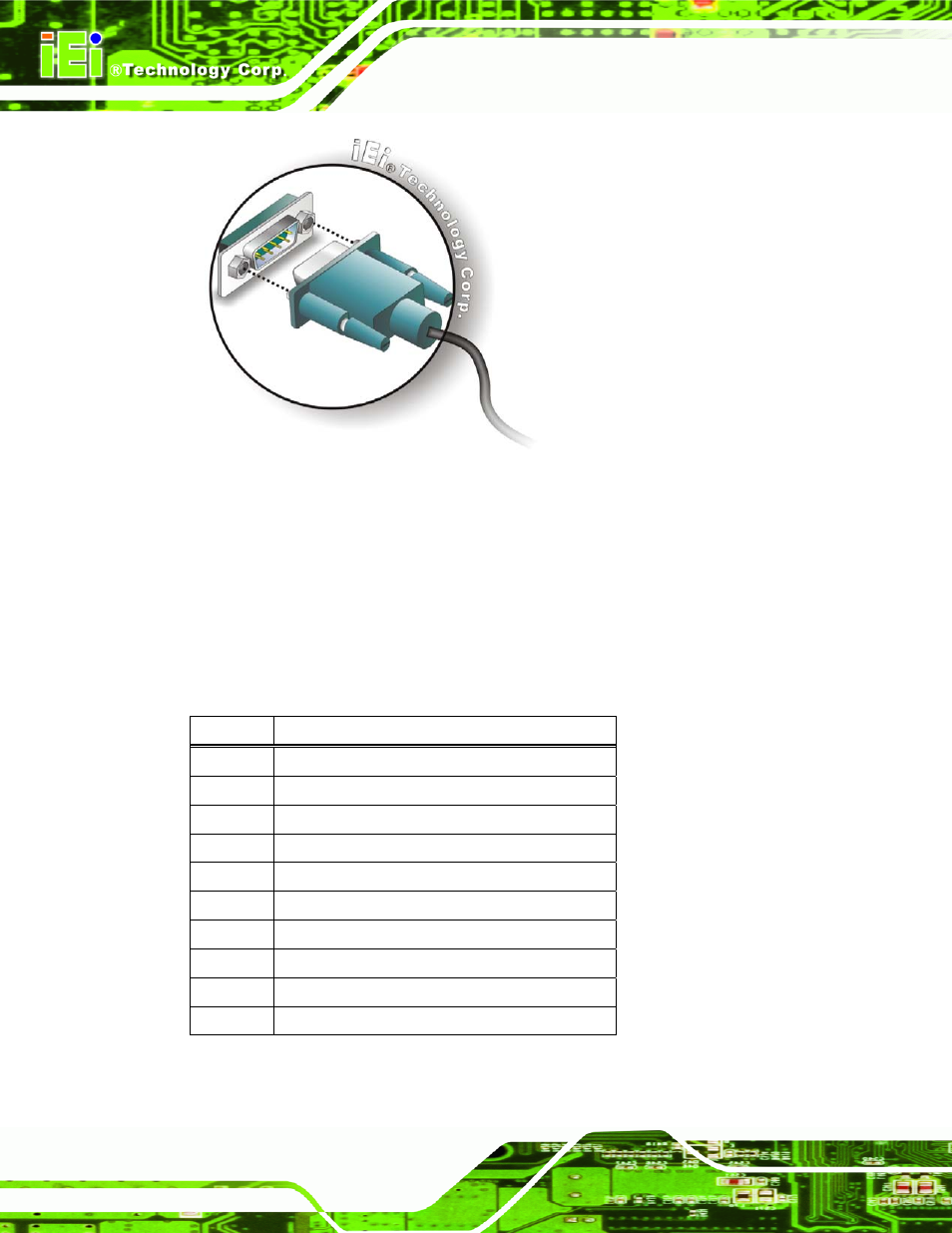

Figure 3-22: Serial Device Connector

Step 3:

Secure the connector

. Secure the serial device connector to the external

interface by tightening the two retention screws on either side of the connector.

Step 0:

3.9.2.1 COM1 Pinouts

The pinouts for COM1 are listed in the table below.

Pin Description

1 NDCD1

2 NRX1

3 NTX1

4 NDTR1

5 GND

6 NDSR1

7 NRTS1

8 NCTS1

9 COM_RI1

10 GND

Table 3-11: COM1 Connector Pinouts
