AFL-F08A Panel PC
Page 4
1.4 Rear Panel
The rear panel provides access to retention screw holes that support the wall mounting.
Refer to Figure 1-3.

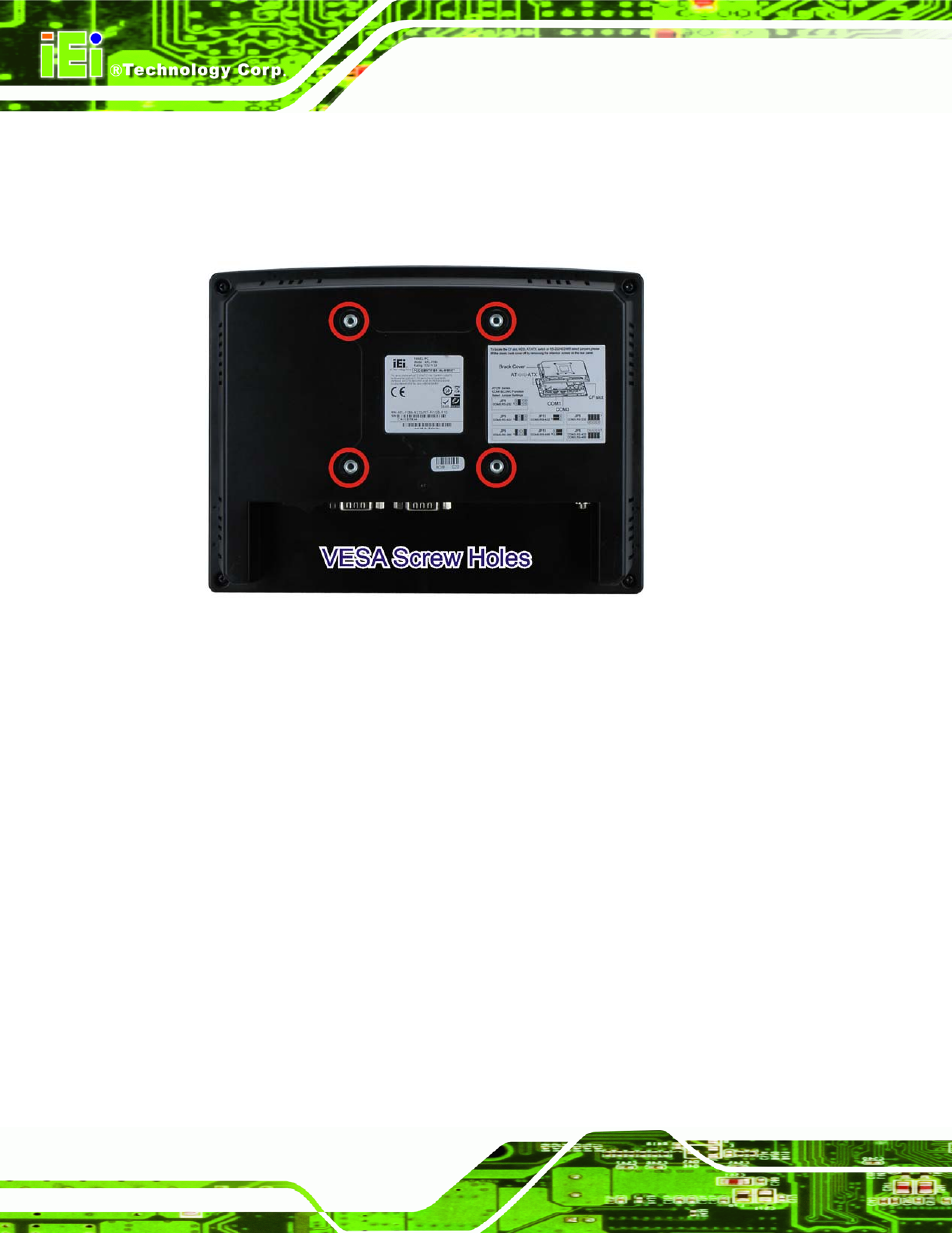

Figure 1-3: AFL-F08A Rear View
1.5 I/O Interface Panel
The I/O interface panel located on the bottom of the AFL-F08A has the following I/O
interface connectors:
ƒ 1 x Audio connector
ƒ 1 x 12 V DC In connector
ƒ 1 x External SATA connector
ƒ 1 x RS-232 connector
ƒ 1 x RS-232/422/485 connector
ƒ 2 x LAN connectors
ƒ 2 x USB 2.0 connectors
ƒ 1 x Power switch
ƒ 1 x Reset button
The external I/O interface connector panel is shown in Figure 1-4.
