AFL-F08A Panel PC

Page 24

Pin 2

Data+

Table 3-7: RS-485 Pinouts

3.7.6 COM3 RX Function Select Jumper

Jumper Label:

JP9

Jumper Type:

8-pin header

Jumper Settings:

See Table 3-8

Jumper Location:

See Figure 3-10

The COM3 RX Function Select jumper sets the communication protocol used by the RX

serial communications port COM3 as RS-232, RS-422 or RS-485. The COM3 RX

Function Select jumper settings are shown in Table 3-8.

COM3 RX Function Select

Description

Short 3-4

RS-232

Default

Short 1-2, 5-6

RS-422

Short 1-2, 7-8

RS-485

Table 3-8: COM3 RX Function Select Jumper Settings

The COM3 RX Function Select jumper location is shown in Figure 3-10.

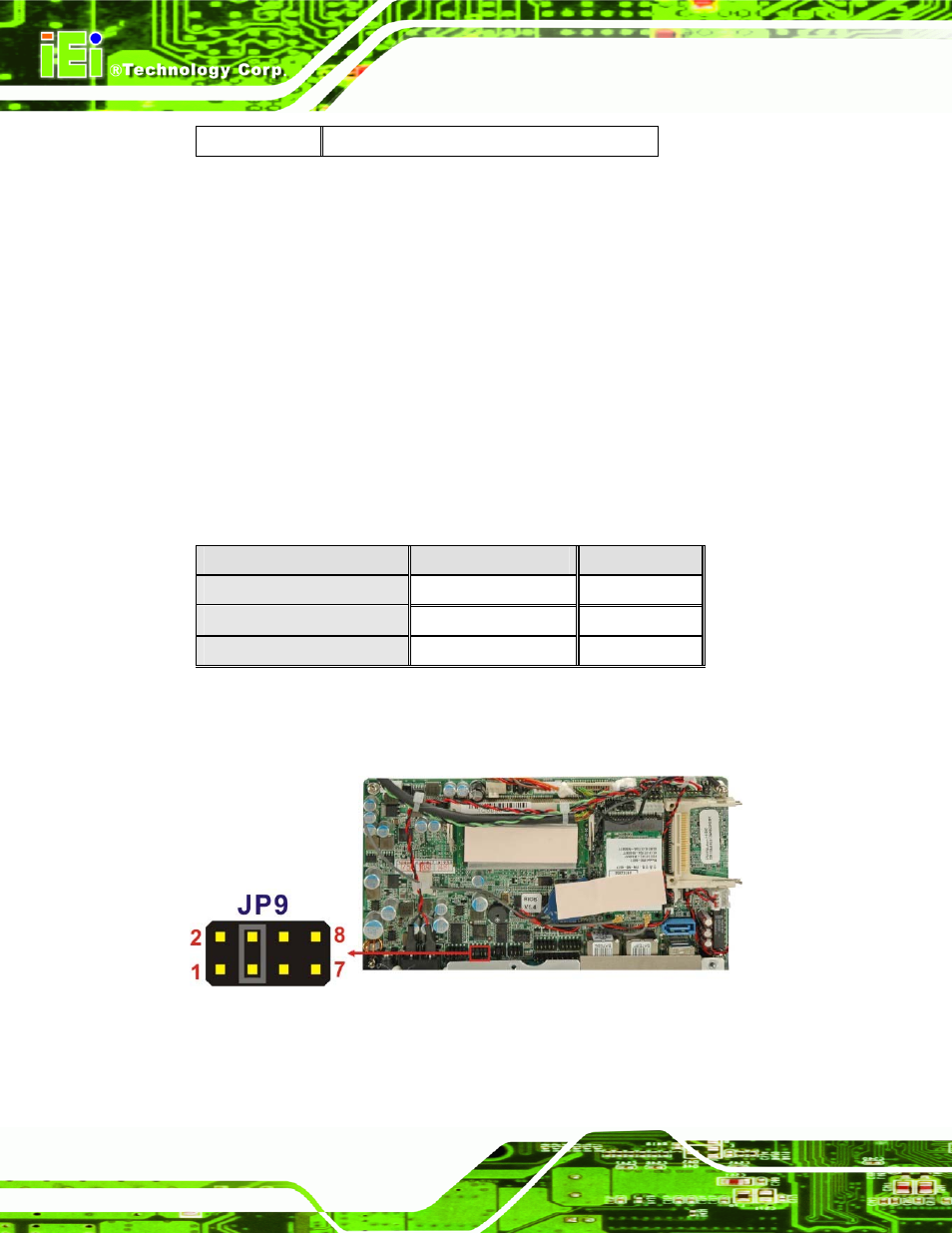

Figure 3-10: COM3 RX Function Select Jumper Location
