Page 67

ECN-360A-HM65 Em b e d d e d S ys te m

P a g e 54

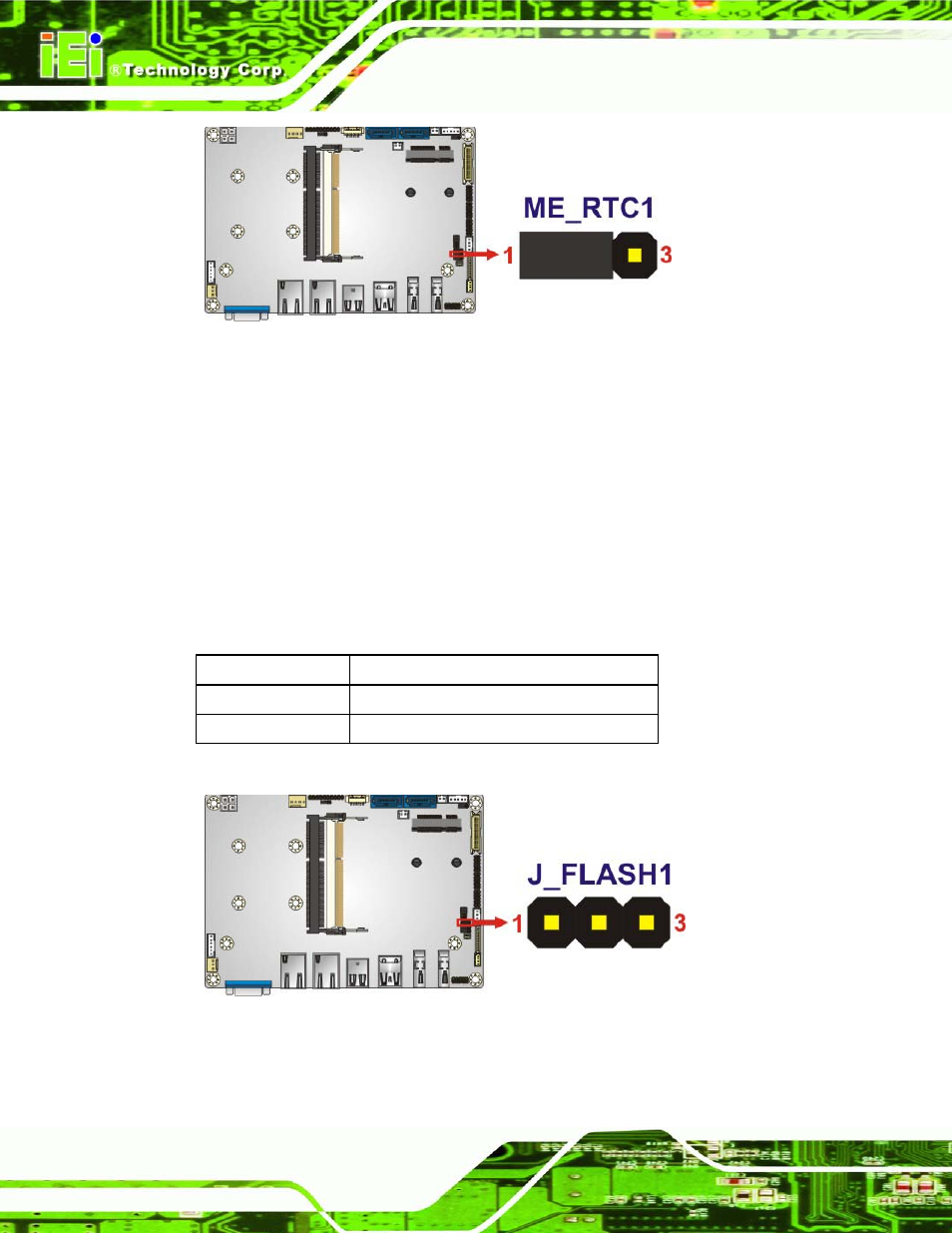

Figure 4-28: TPM Setting Jumper Location

4.4.6 Fla s h De s c rip to r S e c u rity Ove rrid e J u m p e r

J u m p e r La b e l:

J _FLAS H1

J u m p e r Typ e :

3-pin header

J u m p e r S e ttin g s :

J u m p e r Lo c a tio n :

The Flash Descriptor Security Override jumper specifies whether to override the flash

descriptor.

Setting

Description

Short 1-2

Disabled (No override)

Short 2-3

Enabled (Override)

Table 4-34: Flash Descriptor Security Override Jumper Settings

Figure 4-29: Flash Descriptor Security Override Jumper Location
