ECN-360A-HM65 Em b e d d e d S ys te m

P a g e 20

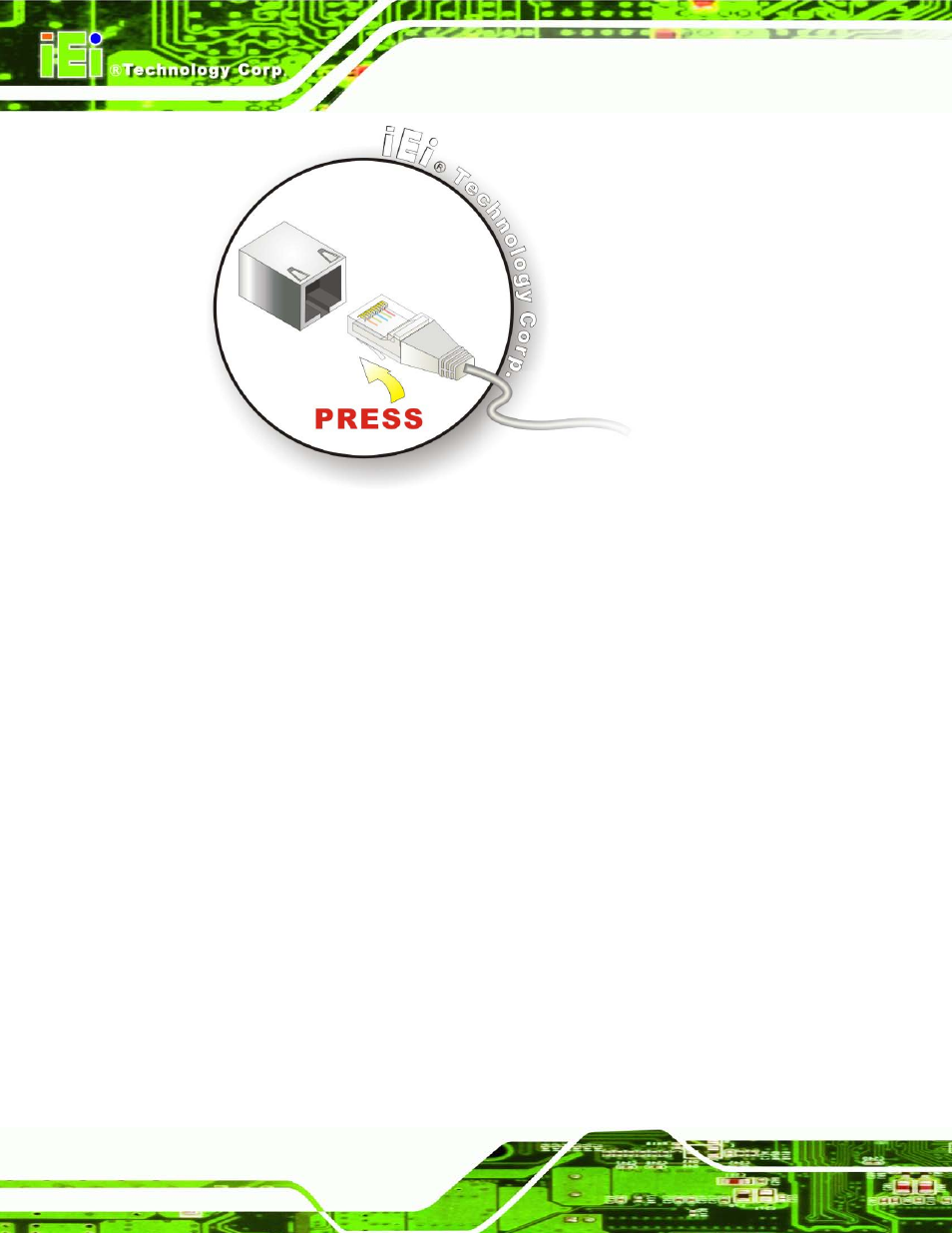

Figure 3-8: LAN Connection

S te p 3:

Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN

cable RJ-45 connector into the RJ-45 connector.

S te p 0:

3.6.4 DB-9 S e ria l P o rt Co n n e c tio n

There are two RS-232 DB-9 connectors and one RS-422/485 DB-9 connector of the

ECN-360A-HM65 for serial device connection. Follow the steps below to connect a serial

device to the DB-9 connector of the ECN-360A-HM65.

S te p 1:

Locate the DB-9 connector. The locations of the DB-9 connectors are shown

in Chapter 1.

S te p 2:

Insert the serial connector. Insert the DB-9 connector of a serial device into

the DB-9 connector on the rear panel. See Figure 3-9.
