ECN-360A-HM65 Em b e d d e d S ys te m
P a g e 46
4.3.2 HDMI Co n n e c to rs
CN La b e l: HDMI1, HDMI2
CN Typ e : HDMI connector
CN Lo c a tio n : See Figure 4-20
CN P in o u ts : See Table 4-24 and Figure 4-22
The HDMI connector connects to a display device with HDMI interface.
Pin Description Pin Description
1 HDMI_DATA2 13 N/C
2 GND 14 N/C
3 HDMI_DATA2# 15 HDMI_SCL
4 HDMI_DATA1 16 HDMI_SDA
5 GND 17 GND
6 HDMI_DATA1# 18 +5V
7 HDMI_DATA0 19 HDMI_HPD
8 GND 20 HDMI_GND
9 HDMI_DATA0# 21 HDMI_GND
10 HDMI_CLK 22 HDMI_GND
11 GND 23 HDMI_GND
12 HDMI_CLK#
Table 4-24: HDMI Connector Pinouts

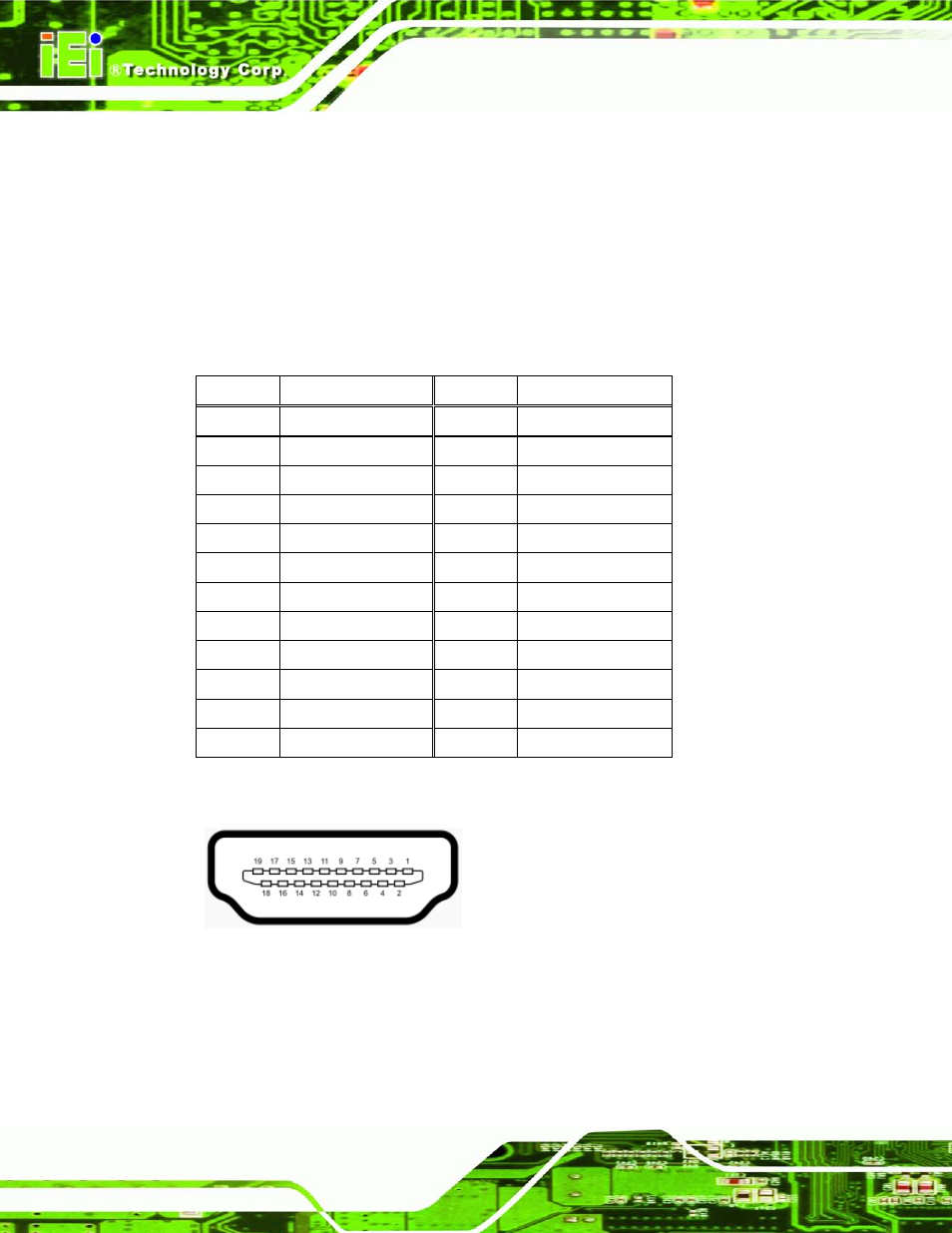

Figure 4-22: HDMI Connector
4.3.3 US B 2.0 Co n n e c to rs
CN La b e l: US B_CON2
CN Typ e : USB 2.0 port
