ECN-360A-HM65 Em b e d d e d S ys te m
P a g e 49
4.4 J u m p e r S e ttin g s

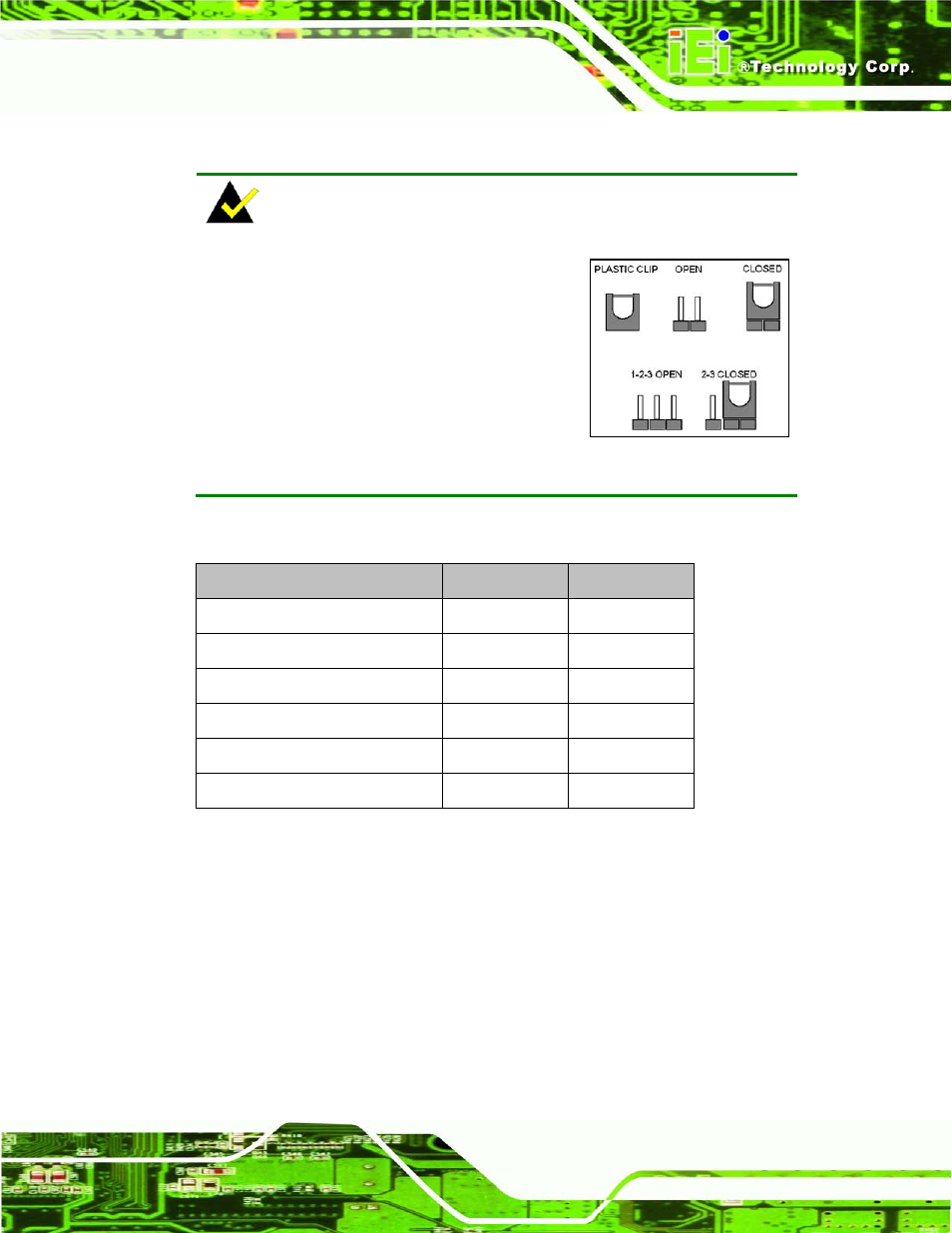

NOTE:
A jumper is a metal bridge used to close an
electrical circuit. It consists of two or three
metal pins and a small metal clip (often
protected by a plastic cover) that slides over
the pins to connect them. To CLOSE/SHORT
a jumper means connecting the pins of the
jumper with the plastic clip and to OPEN a
jumper means removing the plastic clip from a jumper.
The jumpers on the motherboard are listed in Table 4-28.
De s c rip tio n La b e l Typ e
AT/ATX power mode select J_ATXCTL1 3-pin header
Clear CMOS J_CMOS1 3-pin header
LVDS voltage select J_VLVDS1 3-pin header
LVDS panel resolution select J_PID1 8-pin header
TPM setting ME_RTC1 3-pin header
Flash descriptor security override J_FLASH1 3-pin header
Table 4-28: Jumpers
4.4.1 AT/ATX P o we r Mo d e S e le c t J u m p e r
J u m p e r La b e l: J _ATXCTL1
J u m p e r Typ e : 3-pin header
J u m p e r S e ttin g s : See Table 4-29
J u m p e r Lo c a tio n : See Figure 4-24
The AT/ATX Power Select jumper specifies the systems power mode as AT or ATX.
