3.8.7 VGA Mo n ito r Co n n e c tio n
The uIBX-210-CV-N2600 has a single female DB-15 connector on the rear panel. The
DB-15 connector is connected to a CRT or VGA monitor. To connect a monitor to the
uIBX-210-CV-N2600, please follow the instructions below.
S te p 1:
Locate the female DB-15 connector. The location of the female DB-15
connector is shown in Chapter 1.
S te p 2:
Align the VGA connector. Align the male DB-15 connector on the VGA screen
cable with the female DB-15 connector on the uIBX-210-CV-N2600.
S te p 3:
Insert the VGA connector. Once the connectors are properly aligned with the
insert the male connector from the VGA screen into the female connector on the
uIBX-210-CV-N2600. See Figure 3-27.

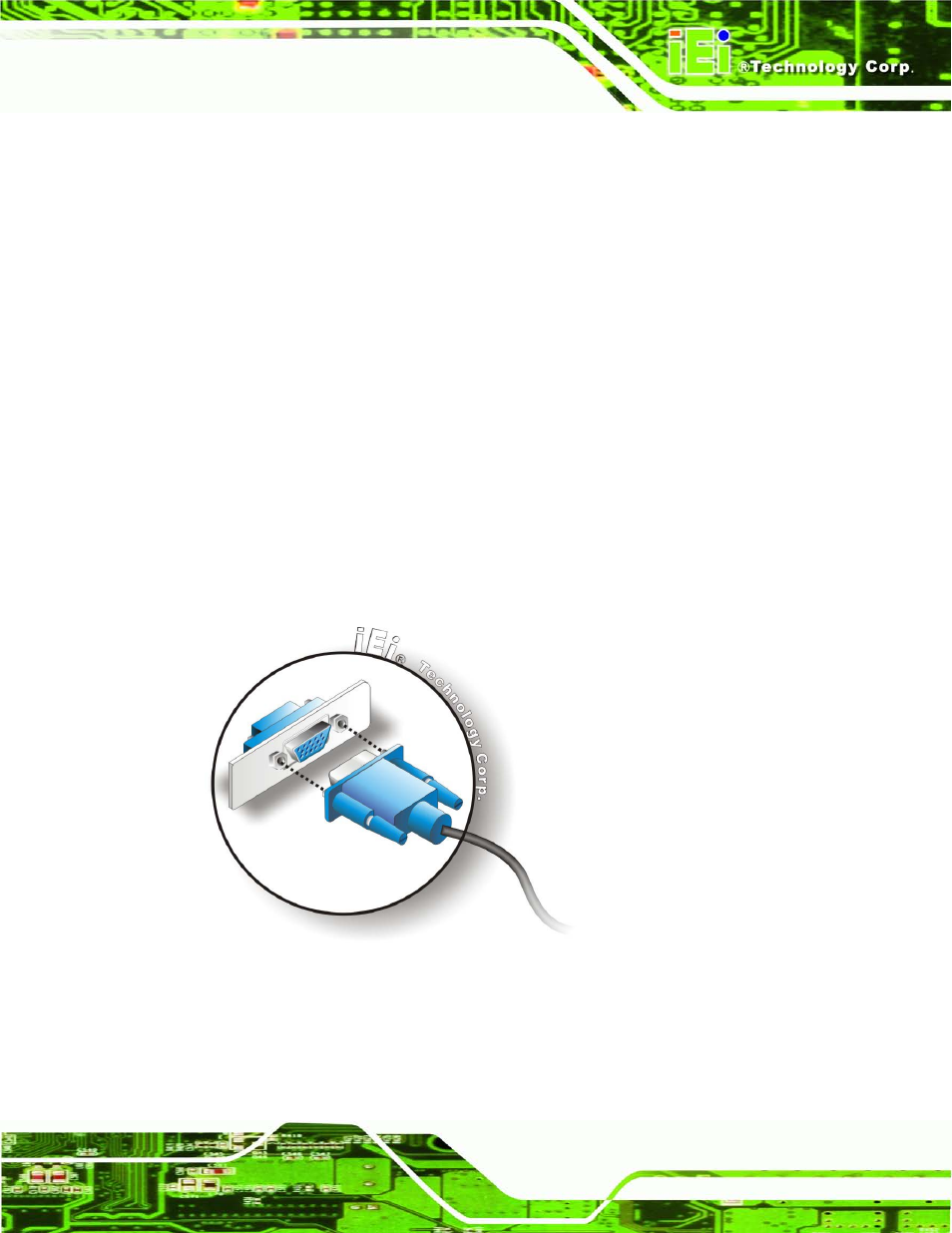

Figure 3-27: VGA Connector
S te p 4:
Secure the connector. Secure the DB-15 VGA connector from the VGA
monitor to the external interface by tightening the two retention screws on either
side of the connector.
