Page 39

u IBX-210-CV-N2600 Em b e d d e d S ys te m

P a g e 26

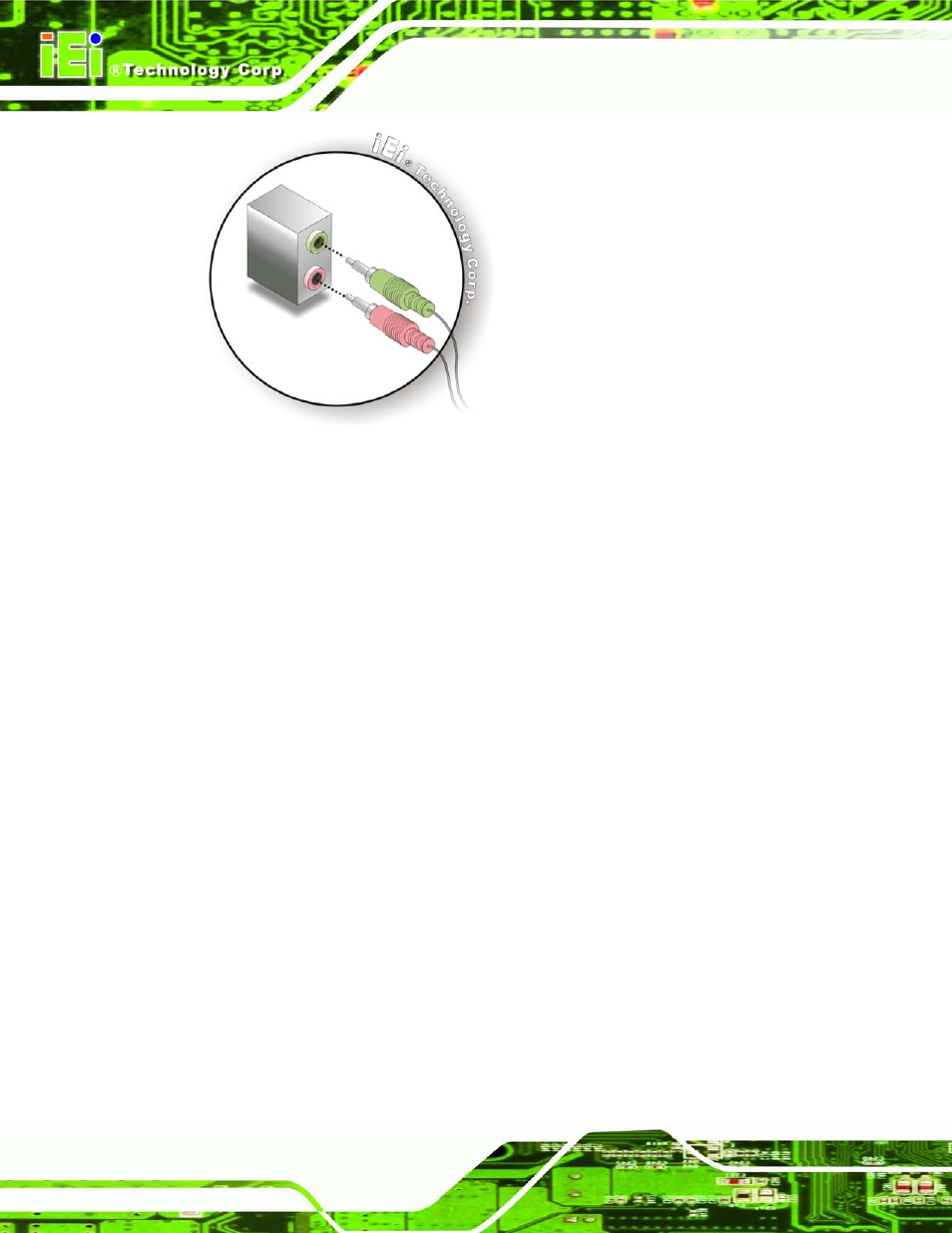

Figure 3-21: Audio Connector

S te p 3:

Check audio clarity. Check that the sound is coming through the right speakers

by adjusting the balance front to rear and left to right.

3.8.2 HDMI De vic e Co n n e c tio n

The HDMI connector transmits a digital signal to compatible HDMI display devices such

as a TV or computer screen. To connect the HDMI cable to the uIBX-210-CV-N2600,

follow the steps below.

S te p 1:

Locate the HDMI connector. The location is shown in Chapter 1.

S te p 2:

Align the connector. Align the HDMI connector with the HDMI port. Make sure

the orientation of the connector is correct.
