u IBX-210-CV-N2600 Em b e d d e d S ys te m
P a g e 16
3.7.1 Wa ll Mo u n t
To mount the embedded system onto a wall using the optional VESA 75 wall mount kit,
please follow the steps below.
S te p 1: Select the location on the wall for the wall-mounting bracket.
S te p 2: Carefully mark the locations of the four brackets screw holes on the wall.
S te p 3: Drill four pilot holes at the marked locations on the wall for the bracket retention
screws.
S te p 4: Align the wall-mounting bracket screw holes with the pilot holes.
S te p 5: Secure the mounting-bracket to the wall by inserting the retention screws into
the four pilot holes and tightening them (Figure 3-5).

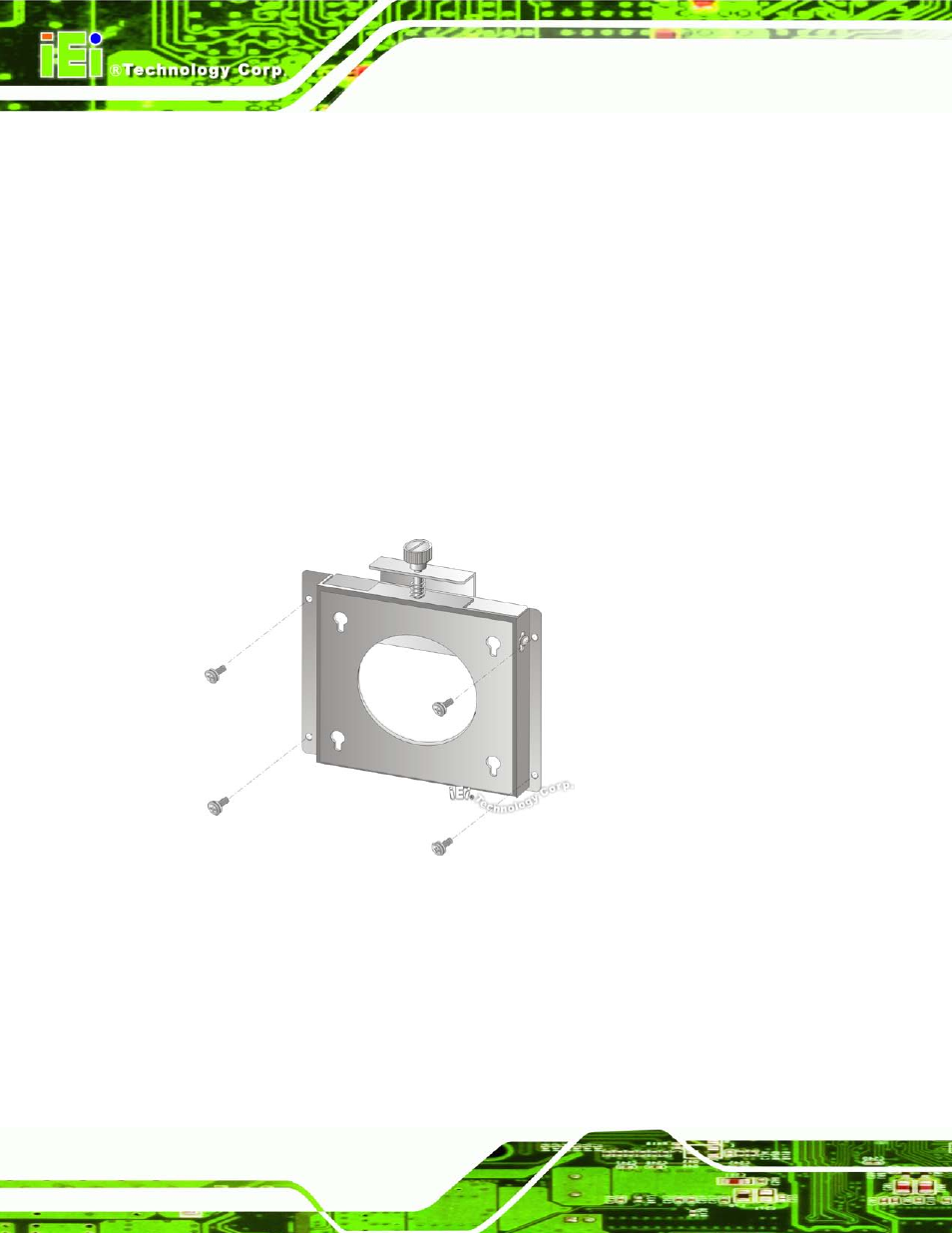

Figure 3-5: Wall-mounting Bracket
S te p 6: Insert the four mounting screws provided in the package into the four screw
holes on the bottom panel of the uIBX-210-CV-N2600 and tighten until the screw
shank is secured against the bottom panel (Figure 3-6).
S te p 7: Align the mounting screws on the bottom panel with the mounting holes on the
bracket.
