ECW-281B Embedded System
Page 53

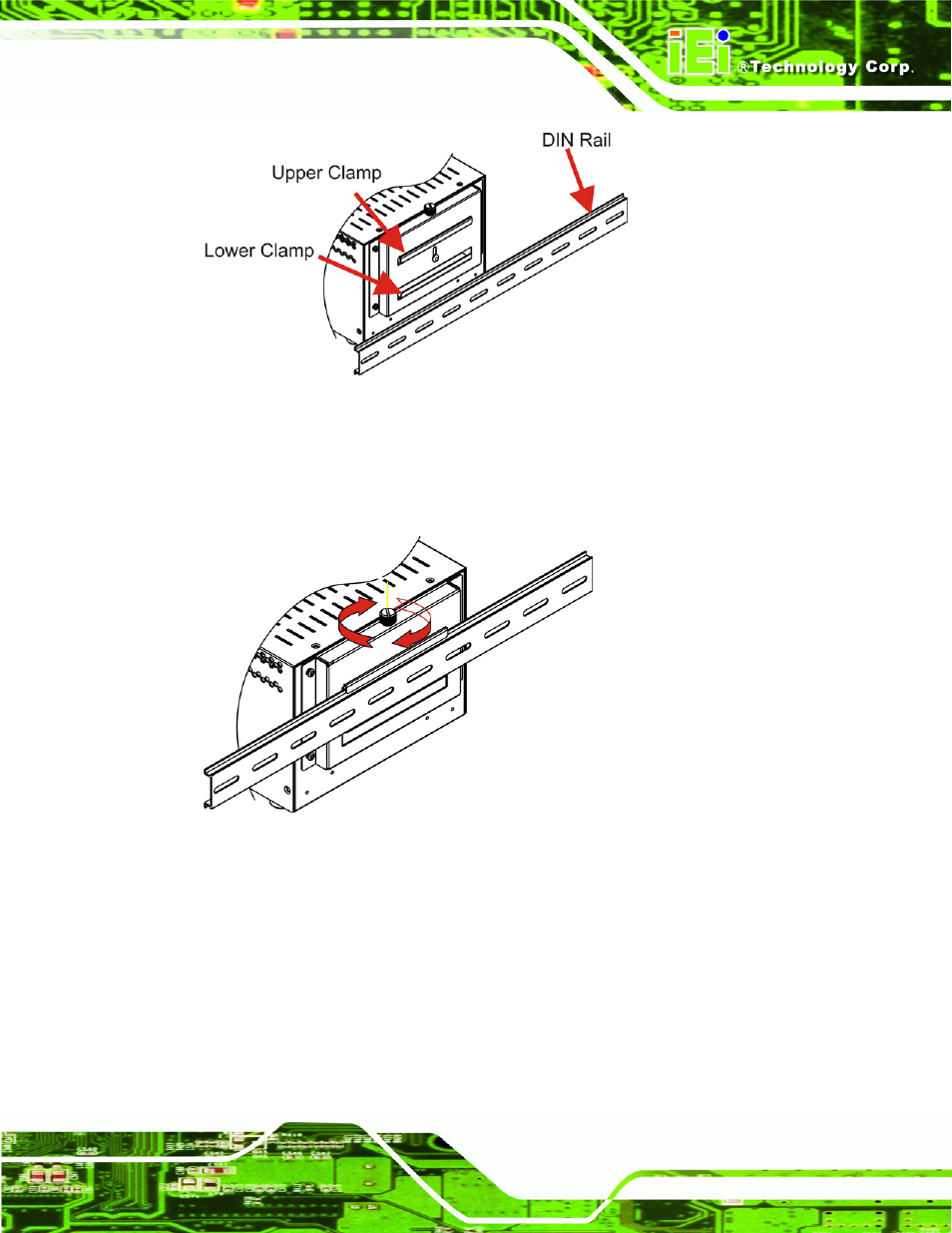

Figure 4-11: Mounting the DIN RAIL
Step 4: Secure the DIN rail to the mounting bracket by turning the top screw clockwise.
This draws the lower clamp up and secures the embedded system to the DIN
rail (
765H765H765H
Figure 4-12).
Figure 4-12: Secure the Assembly to the DIN Rail
4.2.9 Wireless Antenna Installation (Wireless Models Only)
To install an antenna to the wireless ECW-281B/281B2-R20 series for efficient wireless
network transmission, follow the steps below.
Step 1: Locate the antenna connector on the rear panel of the embedded system (refer
to
766H766H766H
Figure 2-5).
Step 2: Install the antenna to the antenna connector (
767H767H767H
Figure 4-13).
