ECW-281B Embedded System
Page 50
Step 1:
Select the location on the wall for the wall-mounting bracket.
Step 2:
Carefully mark the locations of the four bracket screw holes on the wall.
Step 3:
Drill four pilot holes at the marked locations on the wall for the bracket retention
screws.
Step 4:
Align the wall-mounting bracket screw holes with the pilot holes.
Step 5:
Secure the mounting-bracket to the wall by inserting the retention screws into
the four pilot holes and tightening them (
759H759H
Figure 4-7).

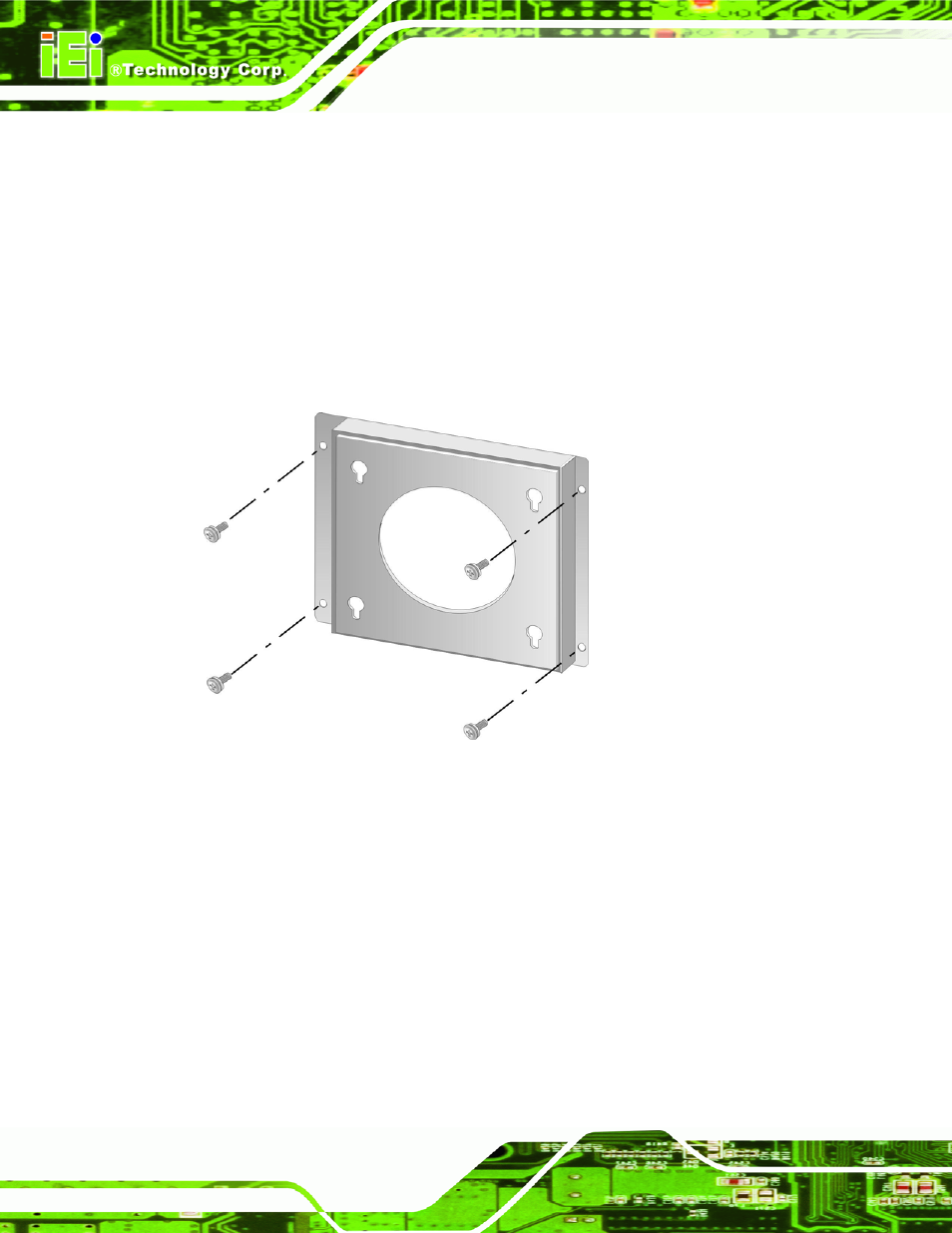

Figure 4-7: Wall-mounting Bracket
Step 6:
Insert the four monitor mounting screws provided in the wall mounting kit into the
four screw holes on the bottom panel of the system and tighten until the screw
shank is secured against the bottom panel (760H760H
760H
Figure 4-8).
Step 7:
Align the mounting screws on the ECW-281B/281B2-R20 bottom panel with the
mounting holes on the bracket.
Step 8:
Carefully insert the screws through the holes and gently pull the monitor
downwards until the ECW-281B/281B2-R20 rests securely in the slotted holes
