ECW-281B Embedded System
Page 94
5.7 Chipset
Use the Chipset menu (
889H797H797H797H
BIOS Menu 18) to access the NorthBridge and SouthBridge
configuration menus
WARNING!
Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS
menu may cause the system to malfunction.

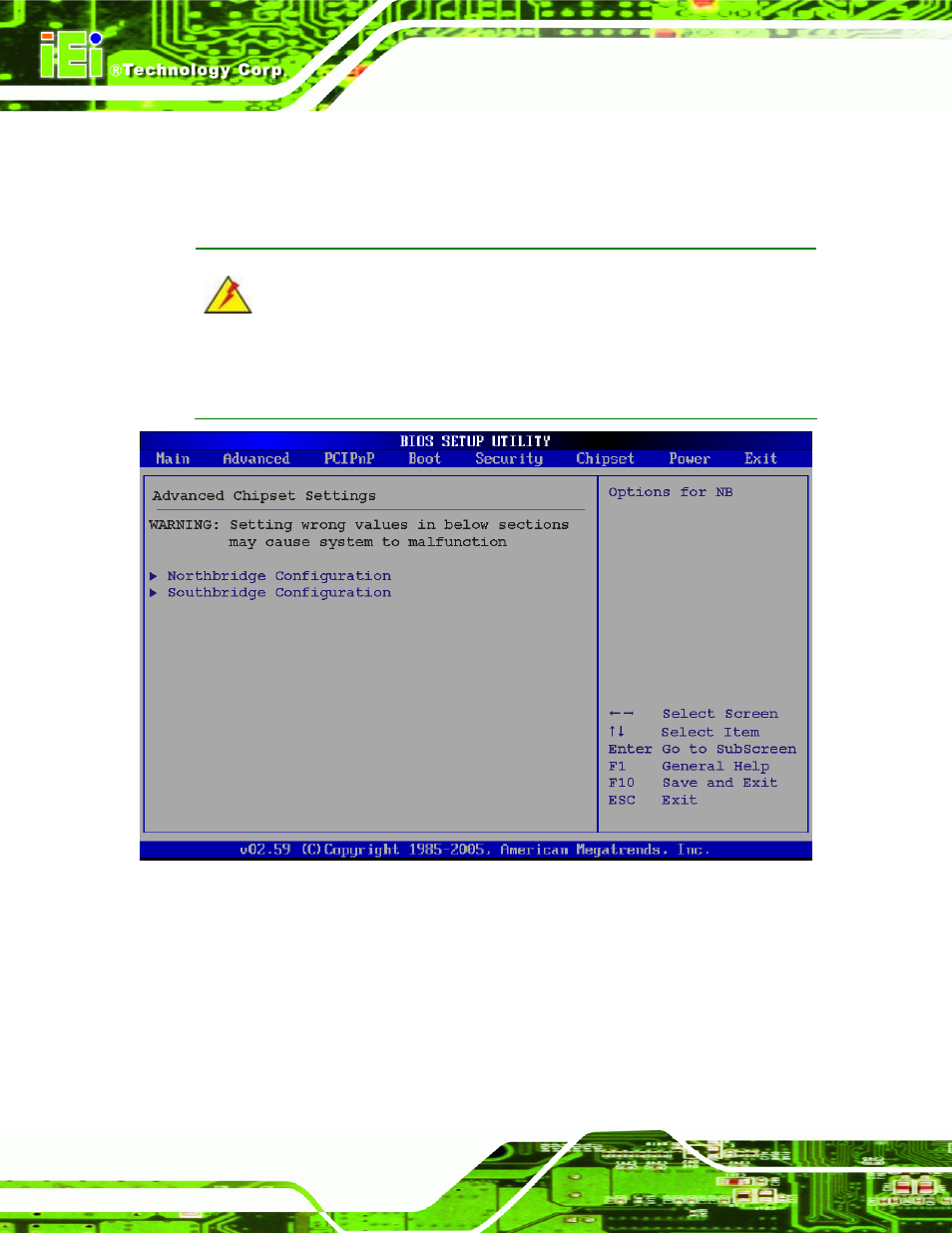

BIOS Menu 18: Chipset
5.7.1 North Bridge Chipset Configuration
Use the North Bridge Chipset Configuration menu (
890H798H798H798H
BIOS Menu 18) to configure the
Northbridge chipset settings.
