ECW-281B Embedded System
Page 28
3.3.8 Reset Button Connector
CN Label: RESET1
CN Type: 2-pin wafer (1x2)
CN Location: See
713H713H713H
Figure 3-9
CN Pinouts: See
714H714H714H
Table 3-9
The reset button connector is connected to a reset switch on the system chassis to enable
users to reboot the system when the system is turned on.

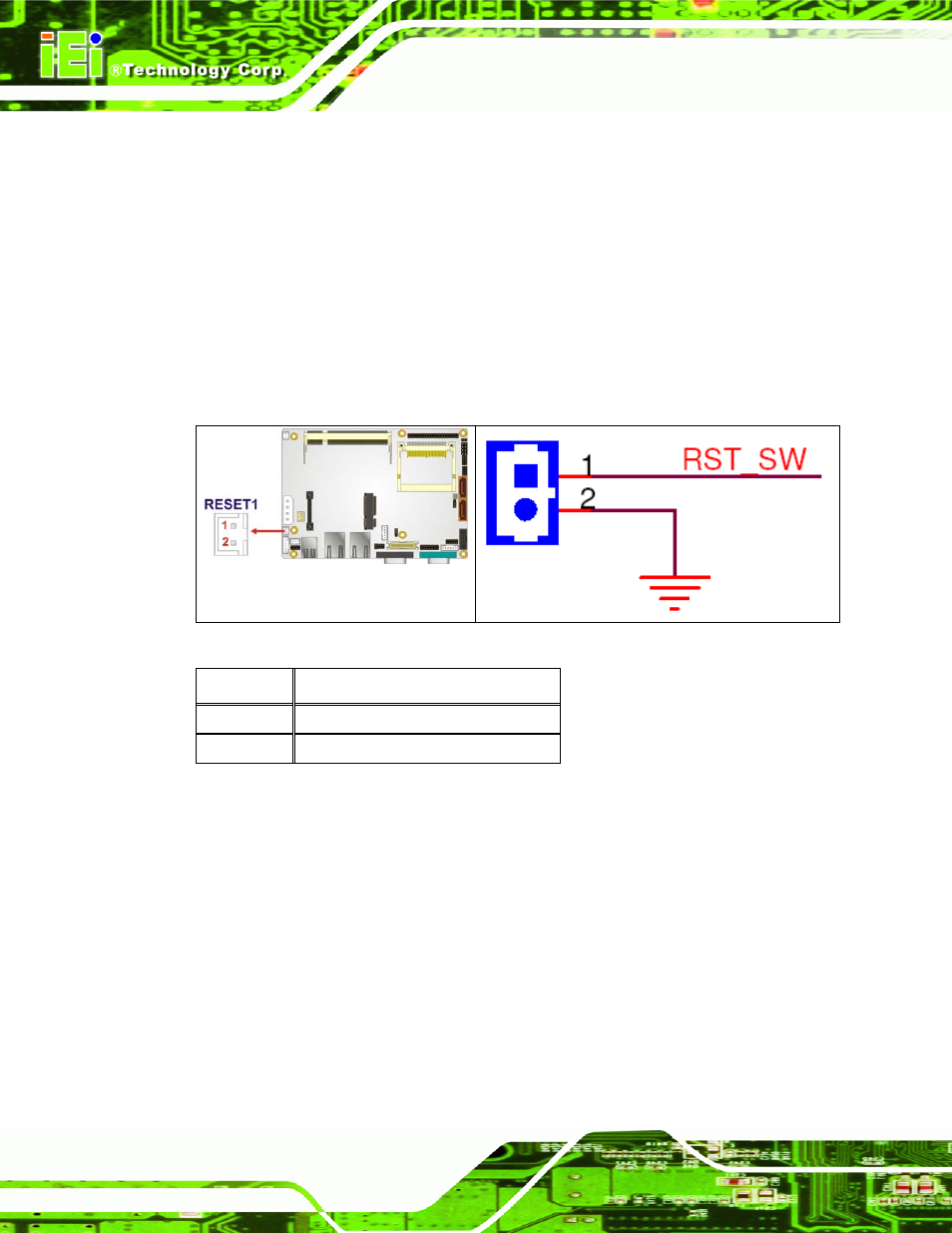

Figure 3-9: Reset Button Connector Locations
PIN NO. DESCRIPTION
1 Reset Switch
2 GND
Table 3-9: Reset Button Connector Pinouts
3.3.9 SATA Drive Connectors
CN Label: SATA1, SATA2
CN Type: 7-pin SATA drive connectors
CN Location: See
793H715H715H715H
Figure 3-10
CN Pinouts: See
794H716H716H716H
Table 3-10
