ECW-281B Embedded System
Page 52

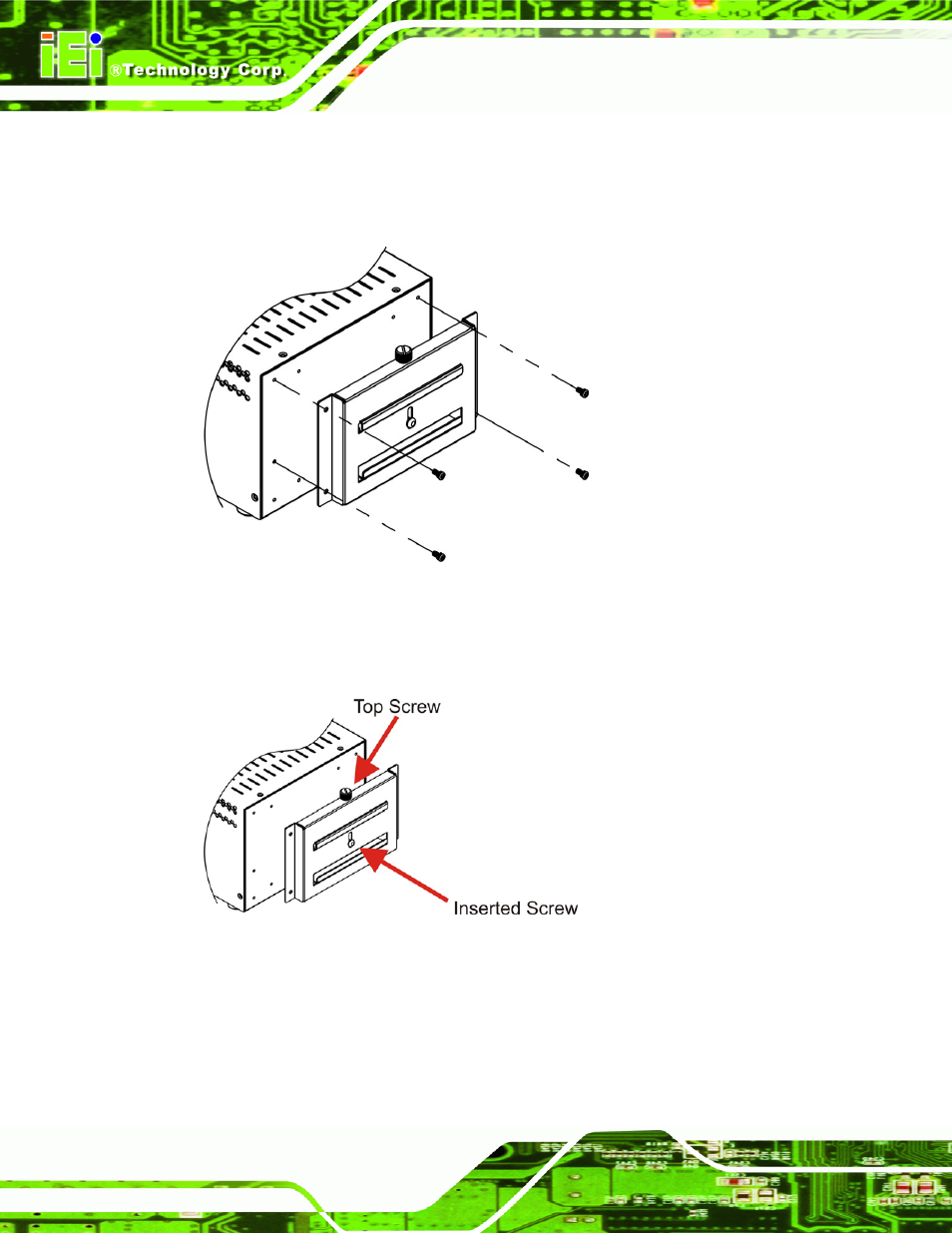

Step 1: Attach the DIN rail mounting bracket to the bottom panel of the embedded
system. Secure the bracket to the embedded system with the supplied retention
screws (
762H762H762H
Figure 4-9).
Figure 4-9: DIN Rail Mounting Bracket
Step 2: Make sure the inserted screw in the center of the bracket is at the lowest
position of the elongated hole (
763H763H763H
Figure 4-10).
Figure 4-10: Screw Locations
Step 3: Place the DIN rail flush against the back of the mounting bracket making sure
the edges of the rail are between the upper and lower clamps (
764H764H764H
Figure 4-11).
