KINO-G410 Mini-ITX Motherboard

Page 45

Pin Description

Short 1-2

Normal (Default)

Short 2-3

Clear BIOS

Table 4-2: Clear BIOS Jumper Settings

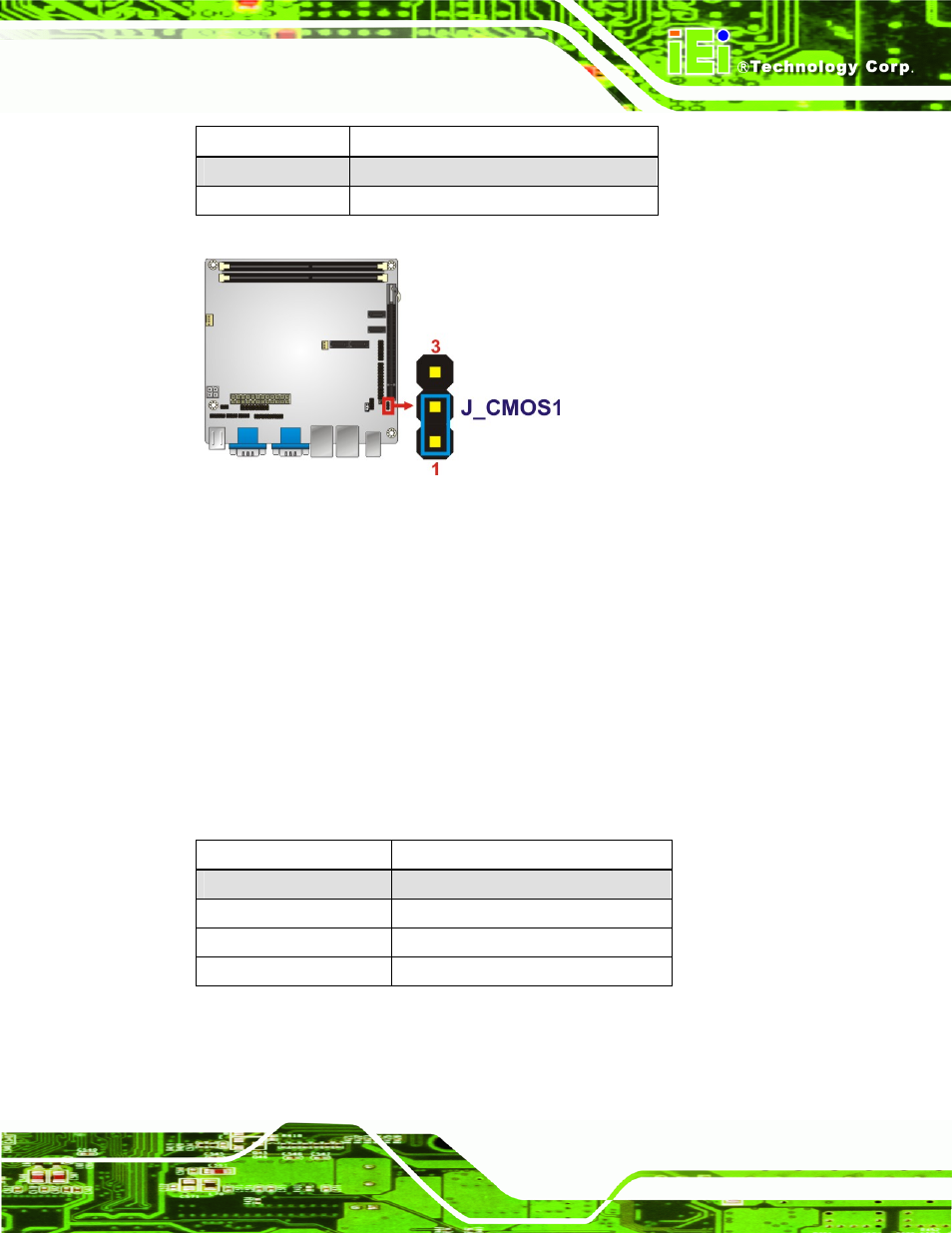

Figure 4-8: Clear BIOS Jumper Location

4.4.2 COM 6 Function Select Jumper

Jumper Label:

JP2

Jumper Type:

8-pin header

Jumper Settings:

See Table 4-3

Jumper Location:

See Figure 4-9

The COM 6 Function Select jumper sets the communication protocol used by the second

serial communications port (COM 6) as RS-232, RS-422 or RS-485. The COM 6 Function

Select settings are shown in Table 4-3.

Setting Description

Short 1-2

RS-232 (Default)

Short 3-4

RS-422

Short 5-6

RS-485

Short 7-8

RS-485 with RTS control

Table 4-3: COM 6 Function Select Jumper Settings
