KINO-G410 Mini-ITX Motherboard
Page 33

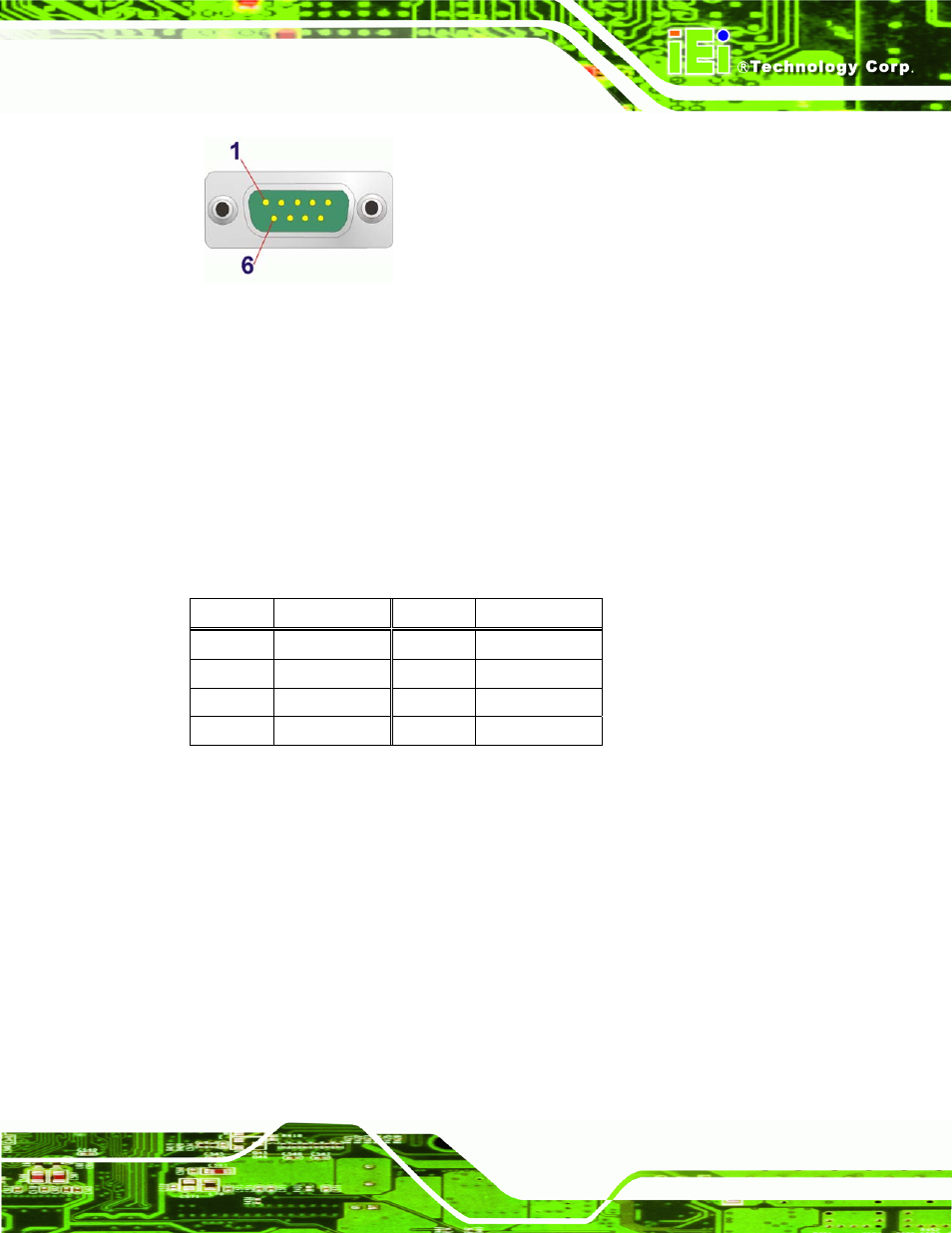

Figure 3-21: Serial Port Pinouts
3.3.5 USB Connector
CN Label: USB01, USB23
CN Type: USB port
CN Location: See Figure 3-18
CN Pinouts: See Table 3-20
The USB connector can be connected to a USB device.
Pin Description Pin Description
1 +5 V 2 +5 V
3 DATA- 4 DATA-
5 DATA+ 6 DATA+
7 GND 8 GND
Table 3-20: USB Port Pinouts
3.3.6 VGA Connector
CN Label: VGA1
CN Type: 15-pin Female
CN Location: See Figure 3-18
CN Pinouts: See Figure 3-22 and Table 3-21
The VGA connector connects to a monitor that accepts a standard VGA input.
