KINO-G410 Mini-ITX Motherboard
Page 26
3.2.12 SATA Drive Connectors
CN Label: SATA1, SATA2, SATA3, SATA4
CN Type: 7-pin SATA drive connectors
CN Location: See Figure 3-13
The SATA drive connectors can be connected to SATA 3Gb/s drives.

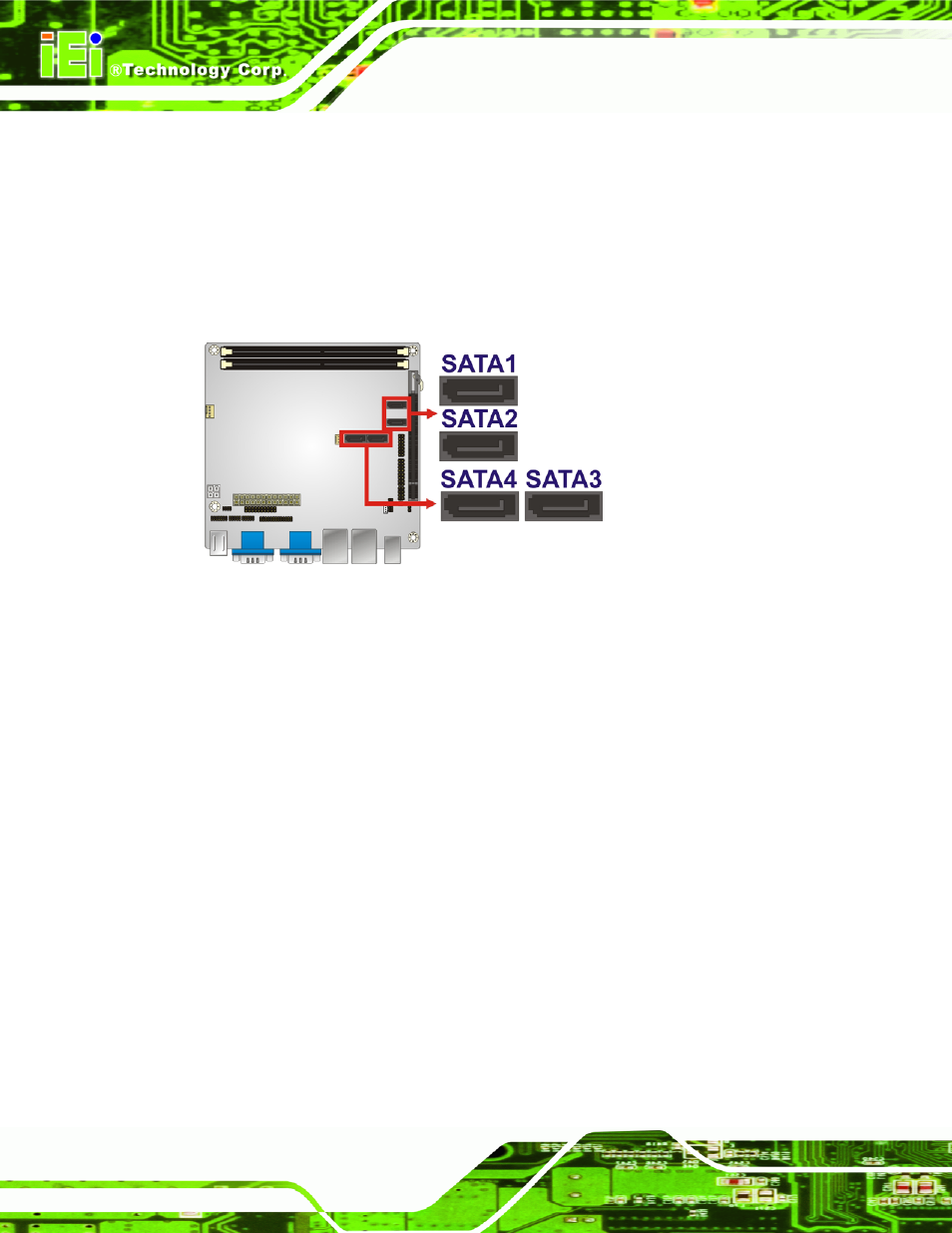

Figure 3-13: SATA Drive Connector Location
3.2.13 SMBus Connector
CN Label: CN1
CN Type: 4-pin wafer
CN Location: See Figure 3-14
CN Pinouts: See Table 3-13
The SMBus (System Management Bus) connector provides low-speed system
management communications.
