KINO-G410 Mini-ITX Motherboard

Page 29

3.2.16 VGA to LVDS Connector

CN Label:

JP4

CN Type:

20-pin header

CN Location:

See Figure 3-17

CN Pinouts:

See Table 3-16

This connector connects to the optional VGA to LVDS converter module and provides the

24-bit LVDS interface.

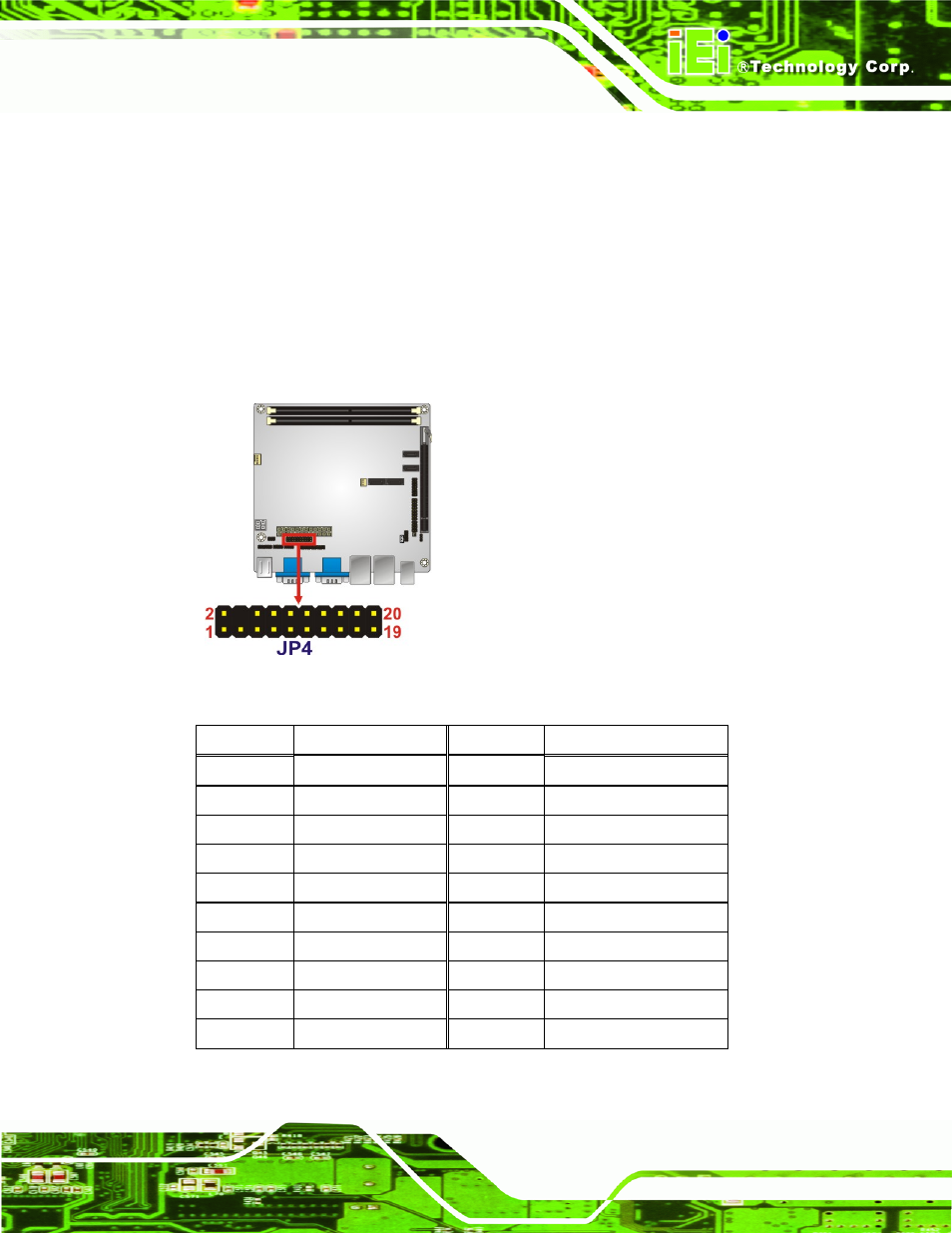

Figure 3-17: VGA to LVDS Connector Location

Pin Description Pin Description

1 GND

2 +5V

3 H-SYNCBUF-OUT_R

4 NC

5 V-SYNCBUF-OUT_R

6 +5V

7 GND

8 GND

9 CH1BUF-OUT_RED

10

+3.3V

11 CH1BUF-OUT_GREEN

12 +3.3V

13 CH1BUF-OUT_BLUE

14 +3.3V

15 GND

16 GND

17 5VDDCDA 18 +12V

19 5VDDCCLK 20 +12V

Table 3-16: VGA to LVDS Connector Pinouts
