KINO-G410 Mini-ITX Motherboard

Page 19

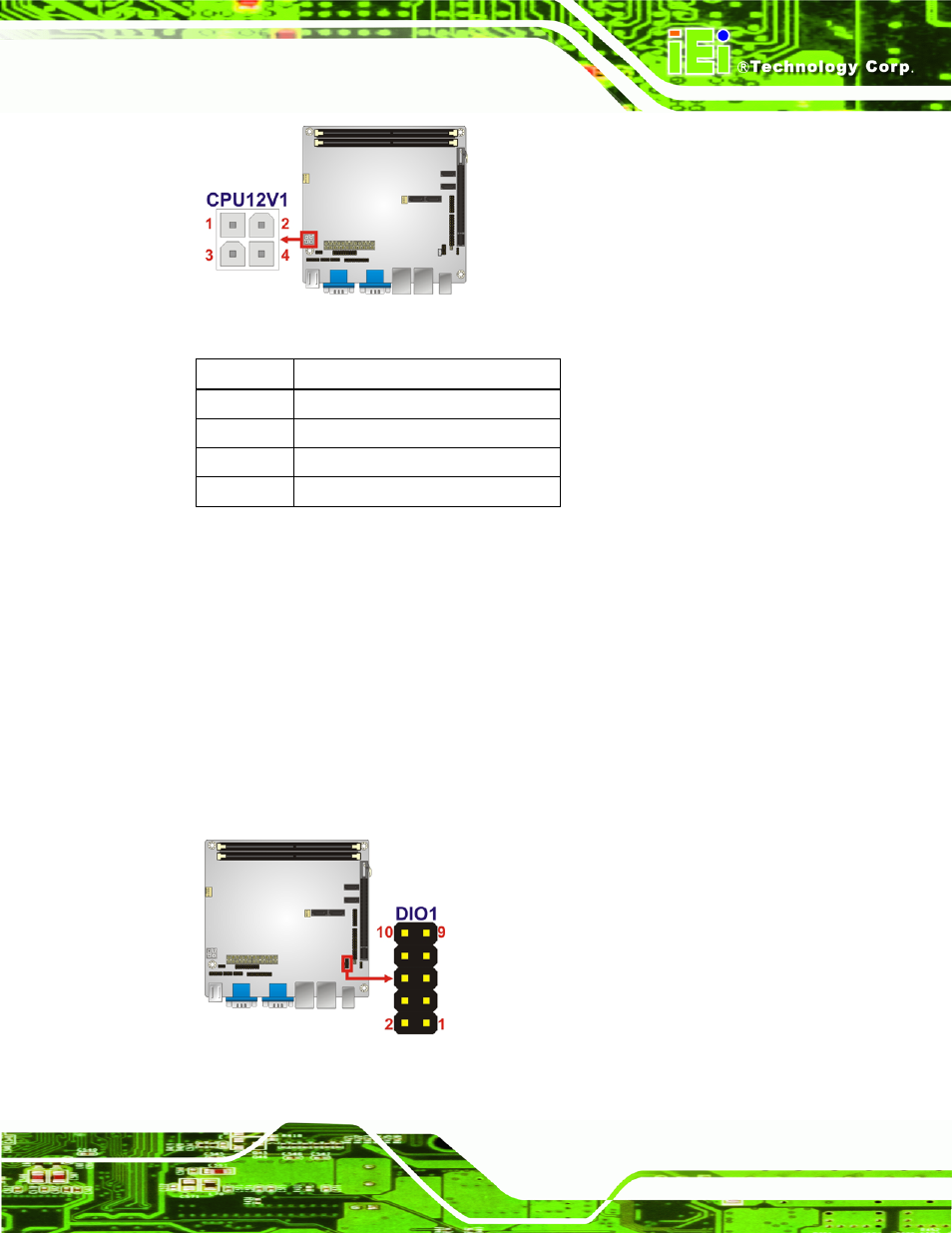

Figure 3-5: CPU Power Input Connector Location

Pin Description

1 GND

2 GND

3 +12

V

4 +12

V

Table 3-6: CPU Power Input Connector Pinouts

3.2.5 Digital I/O Connector

CN Label:

DIO1

CN Type:

10-pin header

CN Location:

See Figure 3-6

CN Pinouts:

See Table 3-7

The digital I/O connector provides programmable input and output for external devices.

The digital I/O provides 4-bit output and 4-bit input.

Figure 3-6: Digital I/O Connector Locations
