KINO-G410 Mini-ITX Motherboard

Page 20

Pin Description Pin Description

1 GND

2 VCC5S

3 Output

3 4 Output

2

5 Output

1 6 Output

0

7 Input

3

8 Input

2

9

Input 1

10

Input 0

Table 3-7: Digital I/O Connector Pinouts

3.2.6 Front Panel Connector

CN Label:

F_PANEL1

CN Type:

14-pin header

CN Location:

See Figure 3-7

CN Pinouts:

See Table 3-8

The front panel connector connects to the indicator LEDs and buttons on the computer's

front panel.

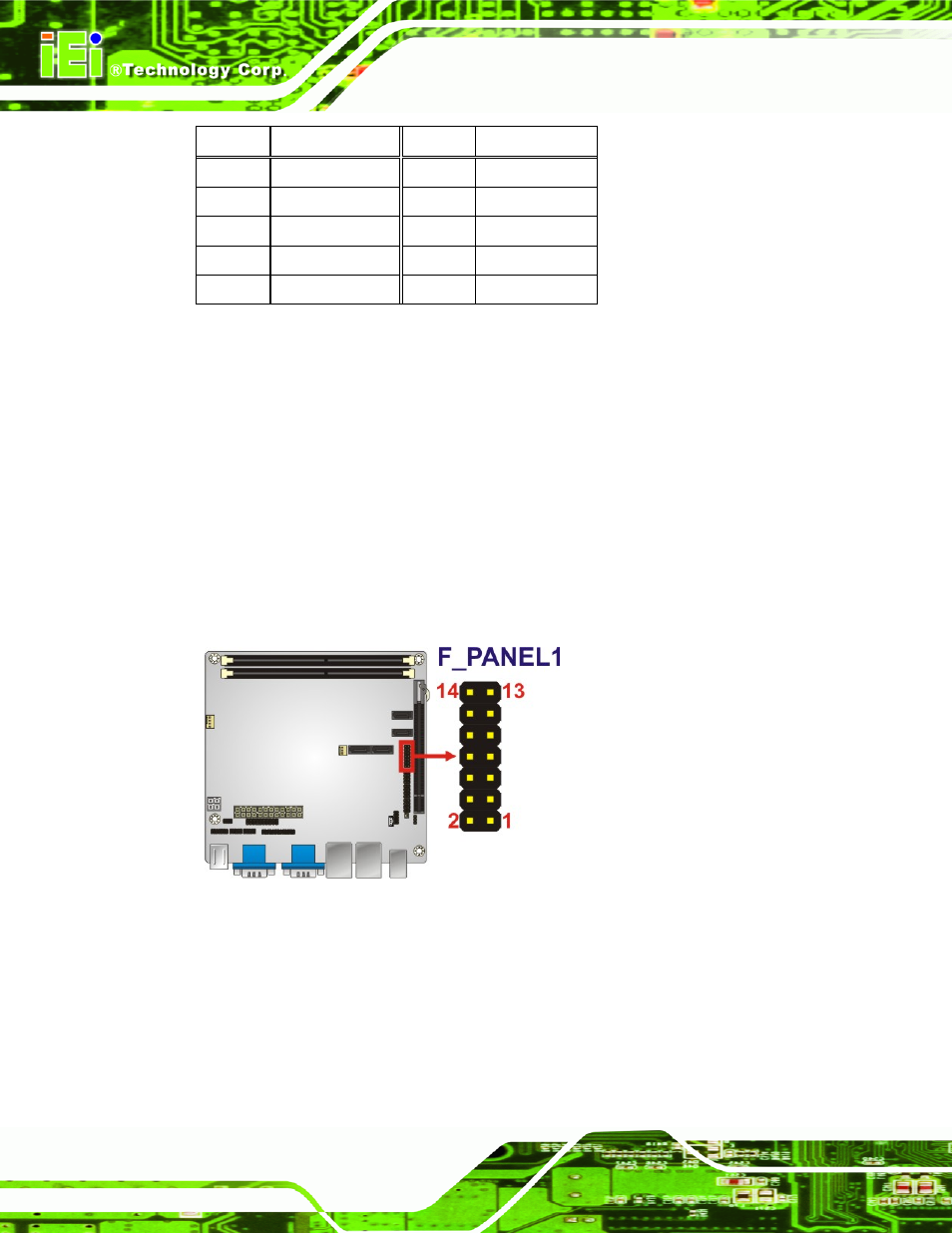

Figure 3-7: Front Panel Connector Location
