KINO-G410 Mini-ITX Motherboard

Page 17

Pin Description

1 Battery+

(+3V)

2 Ground

Table 3-3: Battery Connector Pinouts

3.2.2 CPU Fan Connector

CN Label:

CPU_FAN1

CN Type:

4-pin wafer

CN Location:

See Figure 3-3

CN Pinouts:

See Table 3-4

The fan connector attaches to a CPU cooling fan.

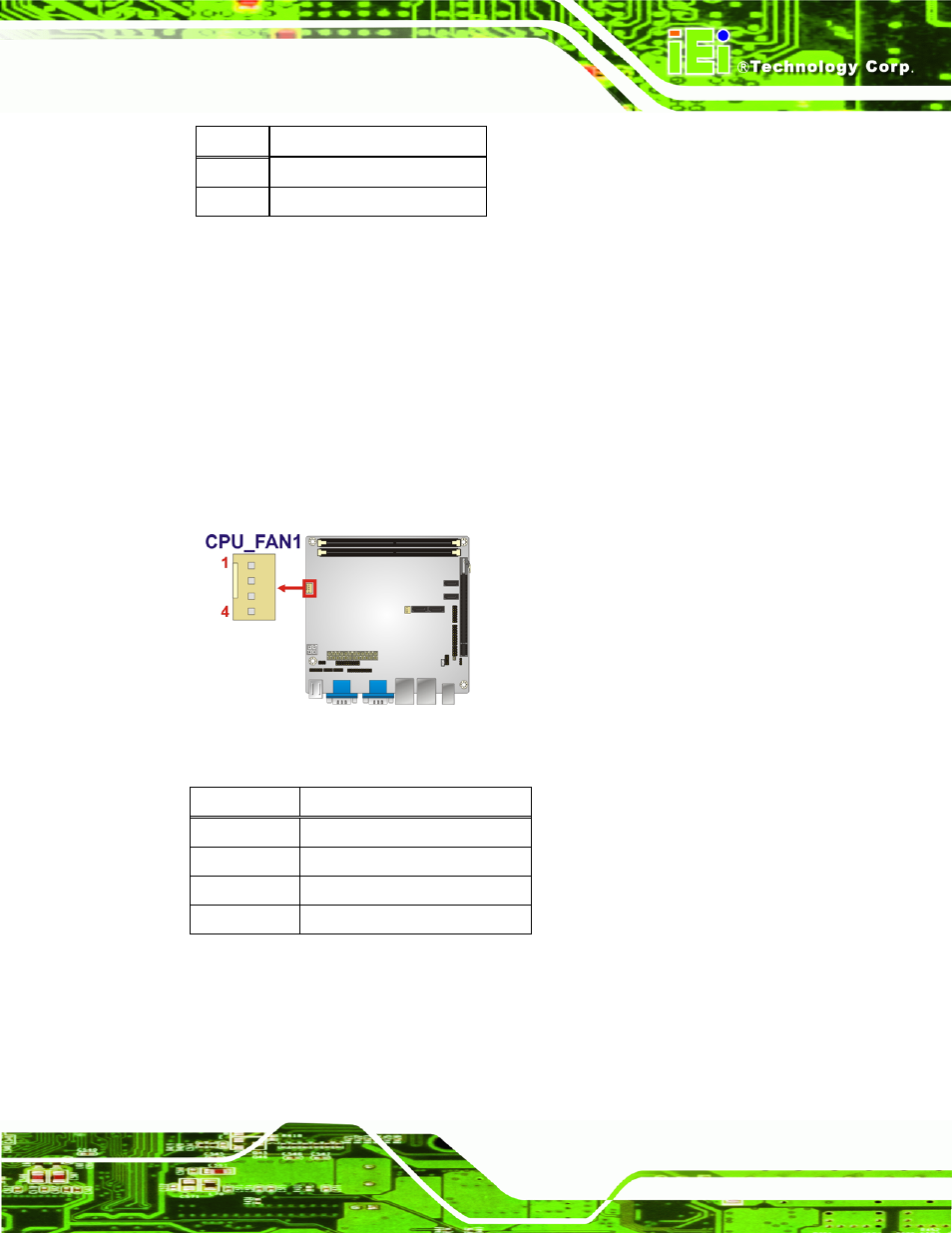

Figure 3-3: CPU Fan Connector Location

Pin Description

1 GND

2 +12

V

3 Fan

In

4 Fan

Control

Table 3-4: CPU Fan Connector Pinouts
