KINO-G410 Mini-ITX Motherboard

Page 24

3.2.10 RS-232 Serial Port Connector

CN Label:

COM4, COM5

CN Type:

10-pin header

CN Location:

See Figure 3-11

CN Pinouts:

See Table 3-11

This connector provides RS-232 communications.

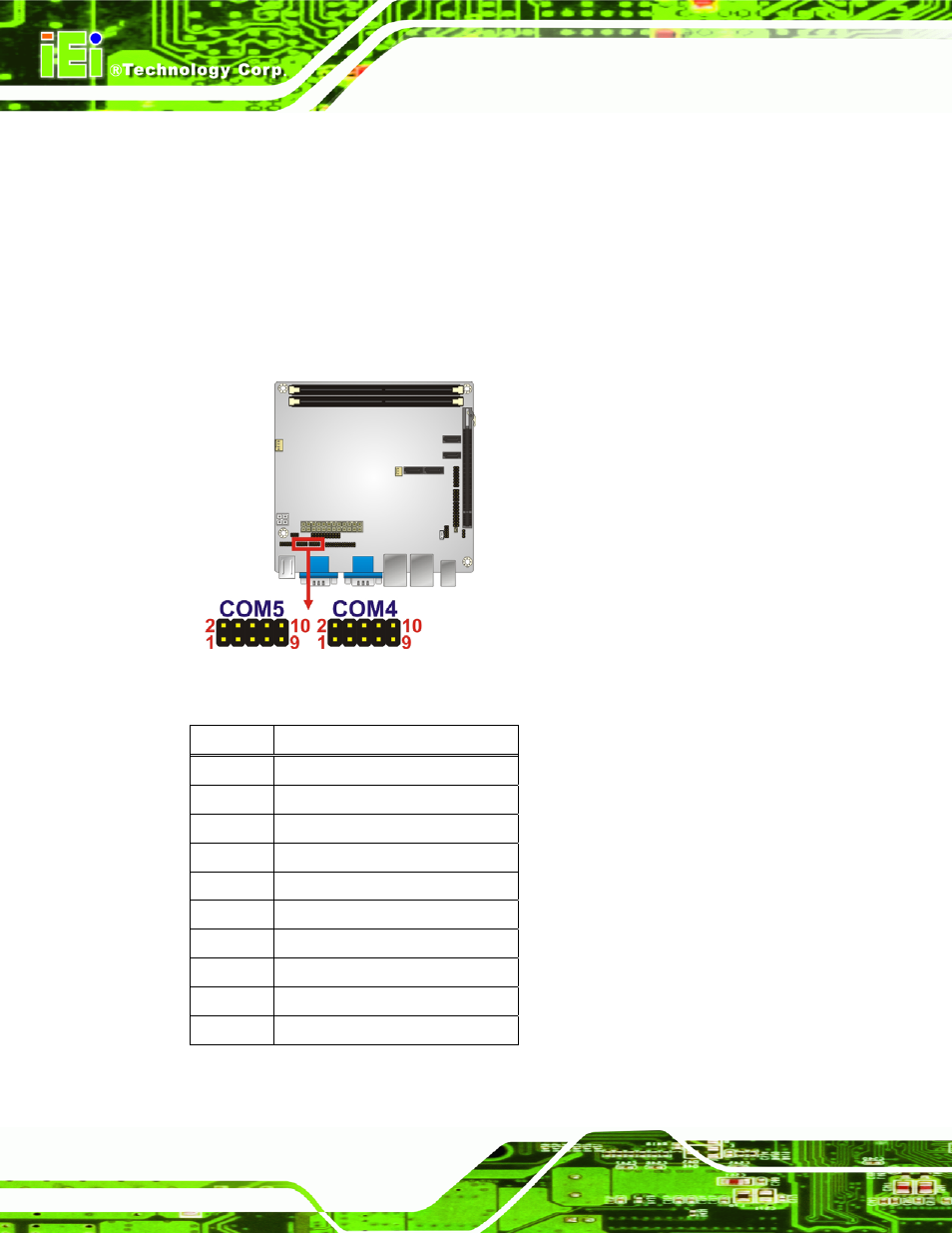

Figure 3-11: Serial Port Connector Location

Pin Description

1

Data Carrier Direct (DCD)

2

Receive Data (RXD)

3

Transmit Data (TXD)

4

Data Terminal Ready (DTR)

5 Ground

(GND)

6

Data Set Ready (DSR)

7

Request To Send (RTS)

8

Clear To Send (CTS)

9 Ring

Indicator

(RI)

10 GND

Table 3-11: Serial Port Connector Pinouts
