3.3.2 Keyboard/Mouse Connector
CN Label: KBMS1
CN Type: PS/2
CN Location: See Figure 3-18
CN Pinouts: See Figure 3-20, Table 3-17
The PS/2 ports are for connecting a PS/2 mouse and a PS/2 keyboard.

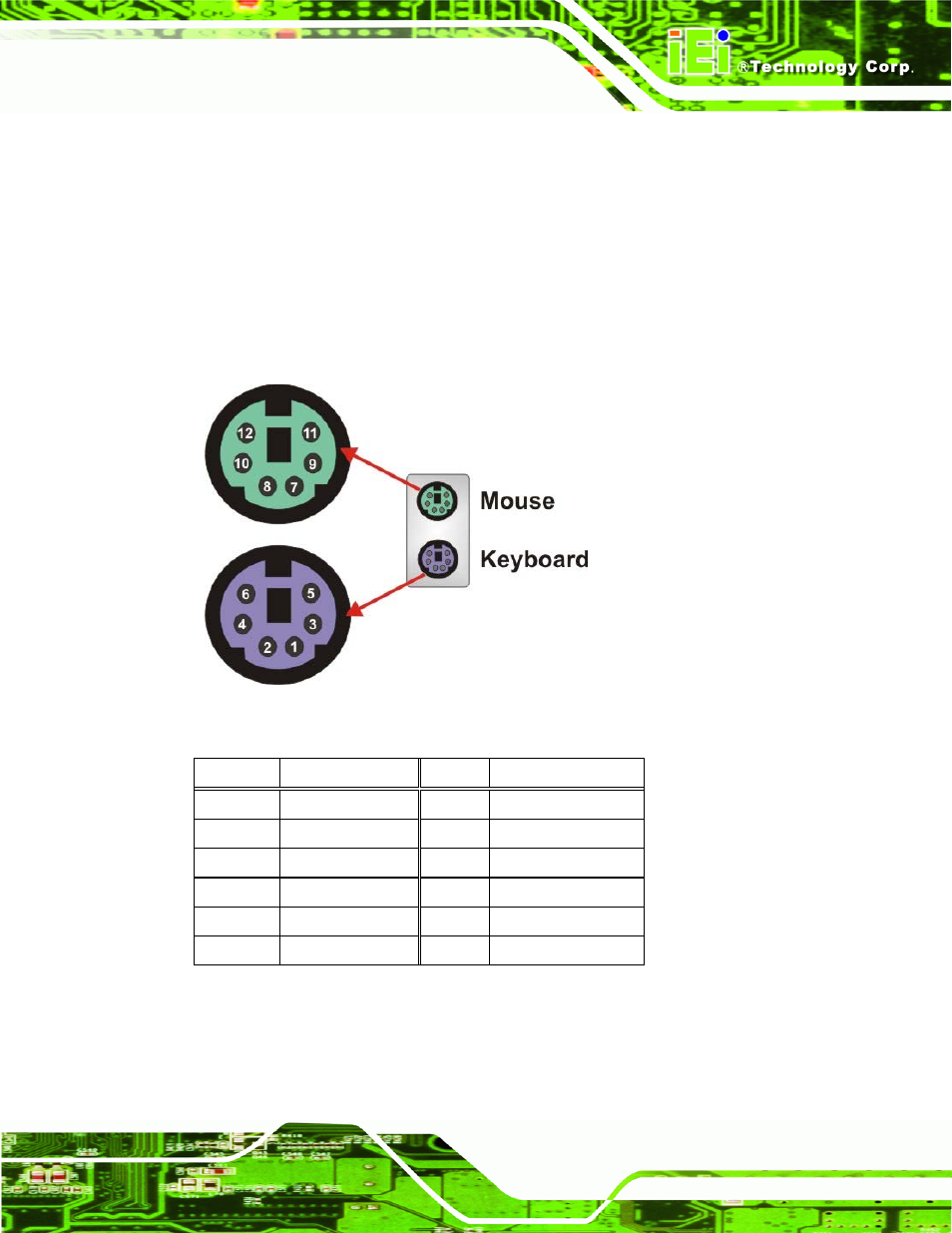

Figure 3-20: PS/2 Pinouts
Pin Description Pin Description
1 L_KDAT 7 L_MDAT
2 NC 8 NC
3 GND 9 GND
4 5 V 10 5 V
5 L_KCLK 11 L_MCLK
6 NC 12 NC
Table 3-17: PS/2 Connector Pinouts
