KINO-G410 Mini-ITX Motherboard
Page 18
3.2.3 System Fan Connector
CN Label: SYS_FAN1
CN Type: 3-pin wafer
CN Location: See Figure 3-4
CN Pinouts: See Table 3-5
The fan connector attaches to a system cooling fan.

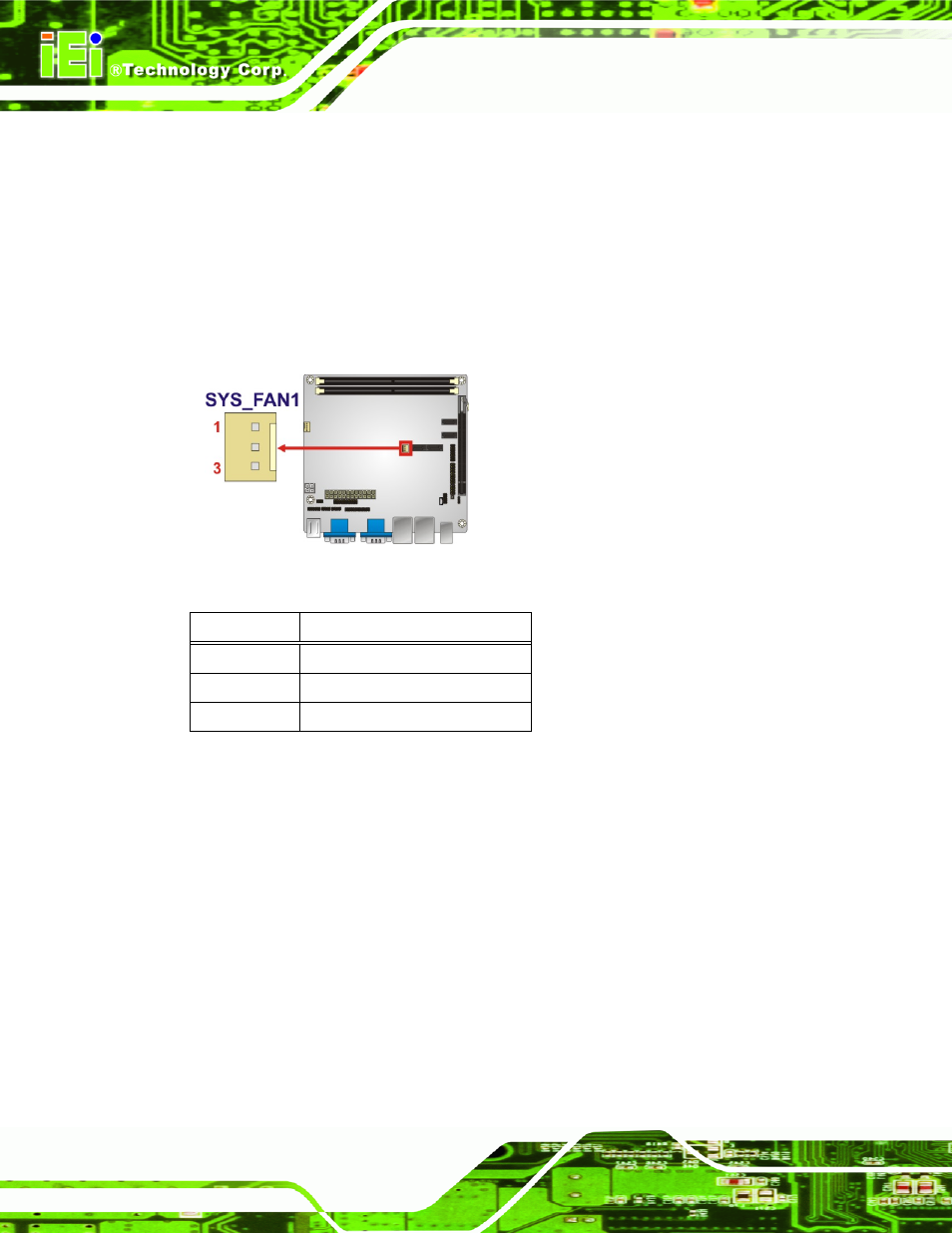

Figure 3-4: CPU Fan Connector Location
Pin Description
1 Fan In
2 VCC_FAN
3 GND
Table 3-5: CPU Fan Connector Pinouts
3.2.4 CPU Power Input Connector
CN Label: CPU12V1
CN Type: 4-pin connector
CN Location: See Figure 3-5
CN Pinouts: See Table 3-6
The CPU power input connector provides power to the CPU.
