KINO-G410 Mini-ITX Motherboard

Page 21

FUNCTION PIN DESCRIPTION FUNCTION PIN DESCRIPTION

1 LED+

2 BEEP_PWR

3 NC

4 NC

Power LED

5 LED-

6 NC

7 BUTTON1

Buzzer

8 PC_BEEP

Power

Button

9 BUTTON2

-- 10

NC

11 HDD

LED+

12 RESET

HDD LED

13 HDD

LED-

Reset

14 GND

Table 3-8: Front Panel Connector Pinouts

3.2.7 Memory Slot

CN Label:

DIMM1, DIMM2

CN Type:

DIMM slot

CN Location:

See Figure 3-8

The DIMM slots are for DIMM memory modules.

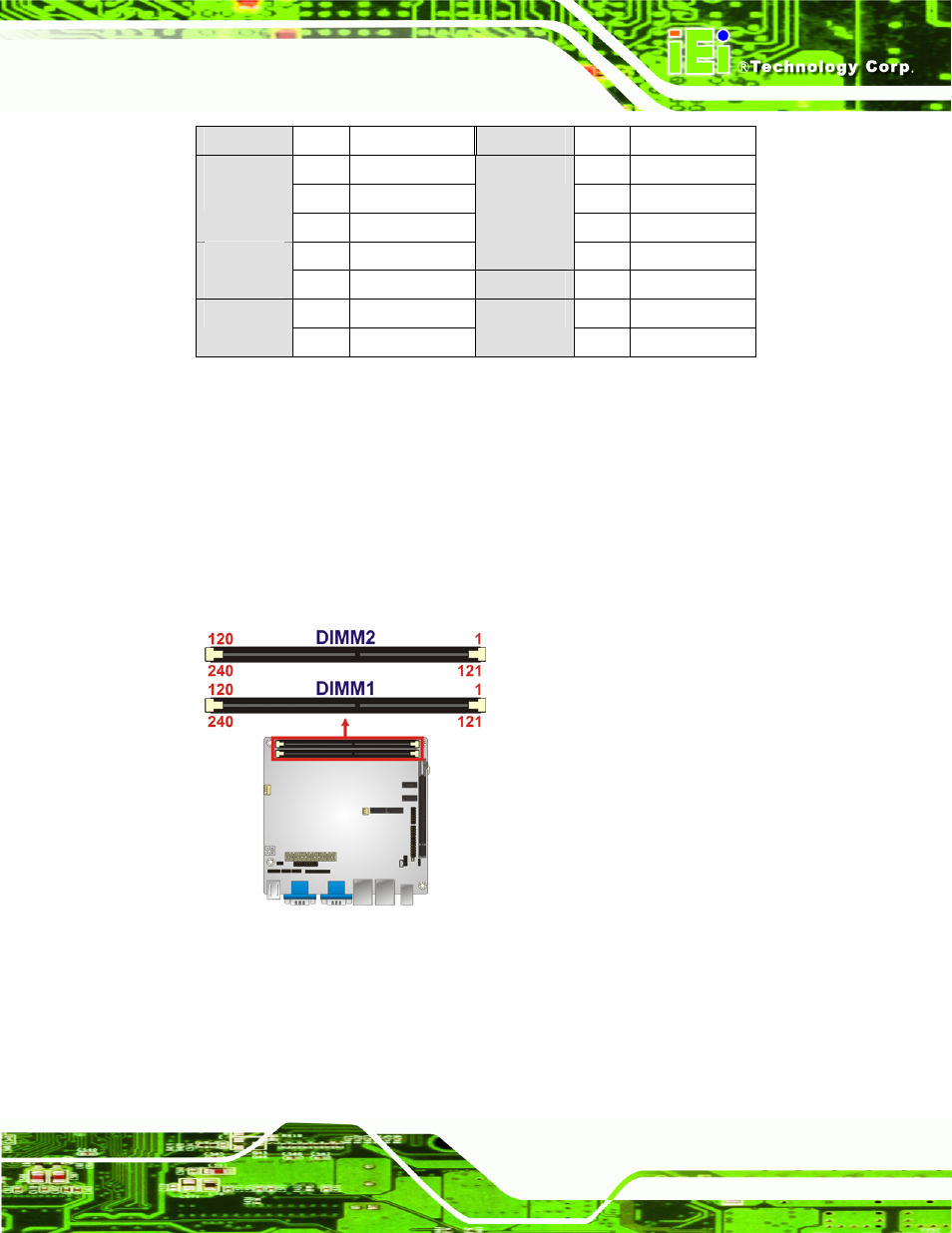

Figure 3-8: Memory Card Slot Location

3.2.8 Parallel Port Connector

CN Label:

LPT1

CN Type:

26-pin header
