3.2.9 Power Connector

CN Label:

ATX1

CN Type:

24-pin connector

CN Location:

See Figure 3-10

CN Pinouts:

See Table 3-10

The power connector connects to an ATX power supply.

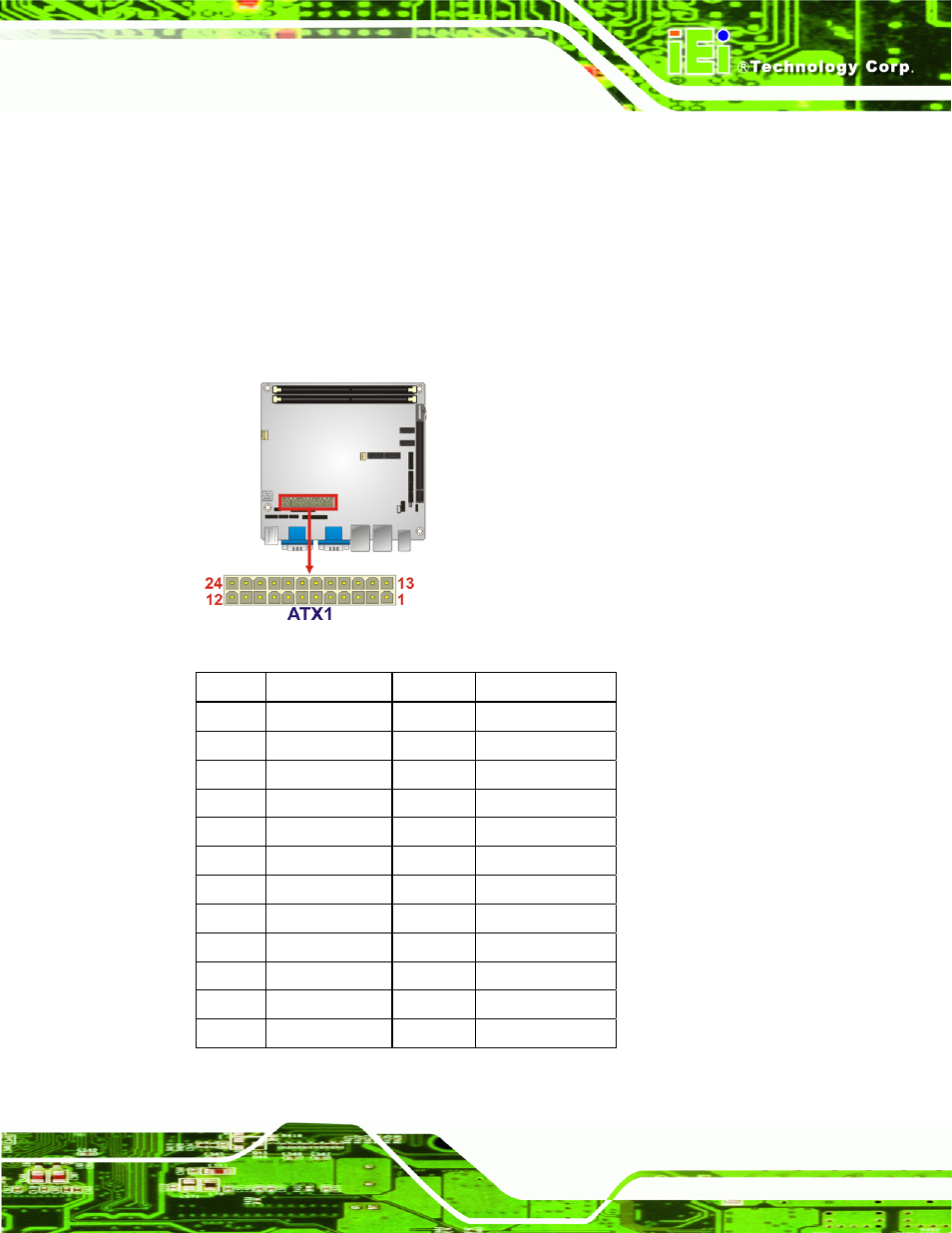

Figure 3-10: Power Connector Location

Pin Description Pin Description

1 3.3V

13 3.3V

2 3.3V

14 -12V

3 GND

15 GND

4 5V

16 PS_ON-

5 GND

17 GND

6 5V

18 GND

7 GND

19 GND

8 ATXPWROK 20 NC

9 5VSB

21 5V

10 12V

22 5V

11 12V

23 5V

12 3.3V

24 GND

Table 3-10: Power Connector Pinouts
