KINO-G410 Mini-ITX Motherboard

Page 27

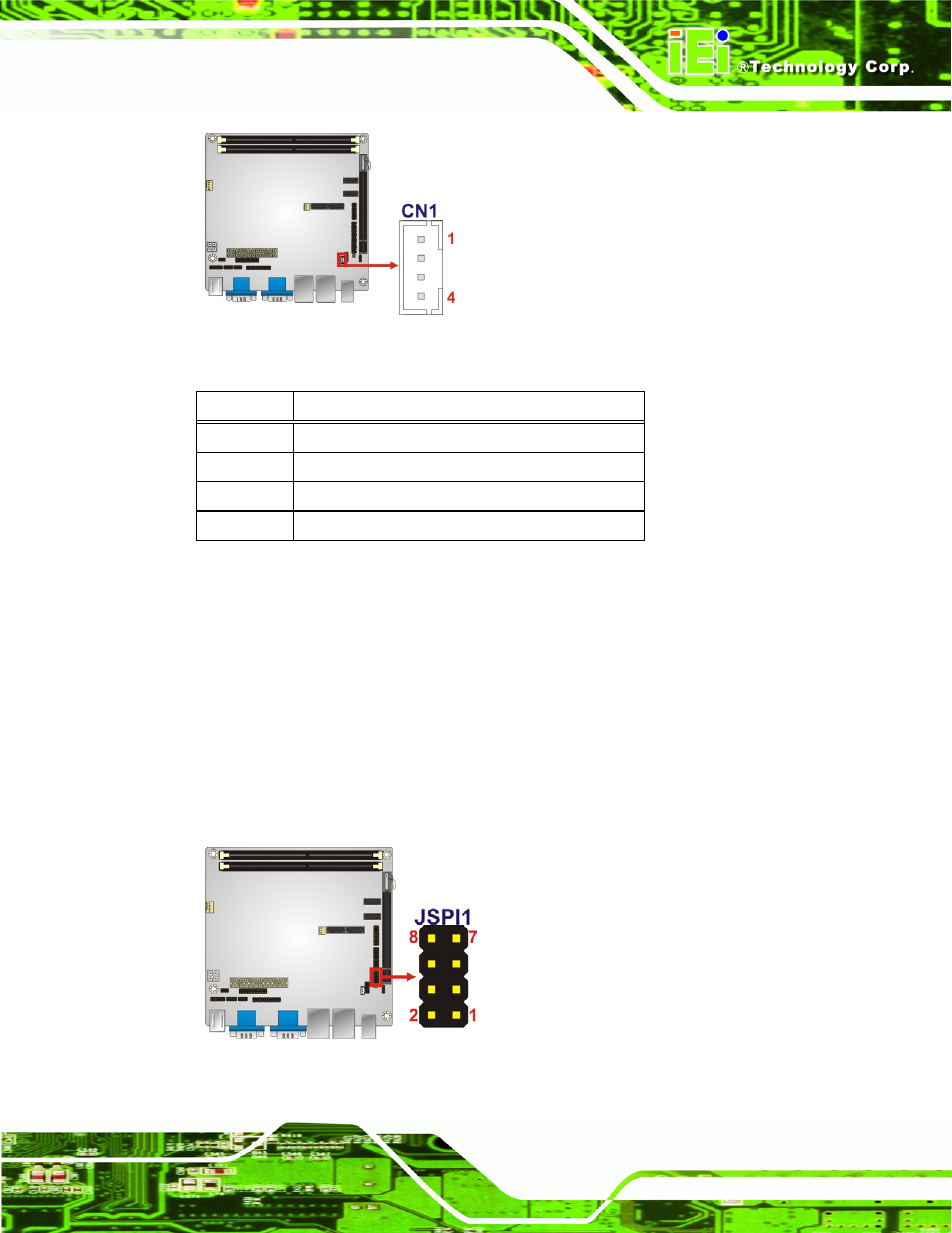

Figure 3-14: SMBus Connector Location

Pin Description

1 GND

2 SDAT

3 SCLK

4 +5V

Table 3-13: SMBus Connector Pinouts

3.2.14 SPI Flash Connector

CN Label:

JSPI1

CN Type:

8-pin header

CN Location:

See Figure 3-15

CN Pinouts:

See Table 3-14

The 8-pin SPI Flash connector is used to flash the BIOS.

Figure 3-15: SPI Flash Connector
