Page 94
C
HAPTER
9
ECG M
ONITORING
9–6
www.zoll.com
9650-0912-01 Rev. K
To disable detection of pacemaker spikes:
1. Press the Param softkey.
2.
Press ECG.
3.
Press Disable Pacer Detect.
To re-enable detection of pacemaker spikes:
1. Press the Param softkey.
2.
Press ECG.
3.
Press Enable Pacer Detect.
5-Lead Monitoring
You can perform 5-lead ECG monitoring with the appropriate ECG patient cable. The 5-lead
cable allows you to monitor the following ECG leads:
•
I, II, III
•
aVR, aVL, aVF
•
V1
Changing from 3-Lead Monitoring
To change from 3-lead to 5-lead monitoring, simply disconnect the 3-Lead ECG patient cable
(or OneStep Pacing cable ECG connector) and connect the 5-lead ECG cable. Refer to the
beginning of this section for appropriate preparations (i.e., placing electrodes, attaching
electrodes, setting the controls, etc.).
If any ECG lead becomes disconnected during monitoring, an ECG LEAD OFF message
appears on the display.

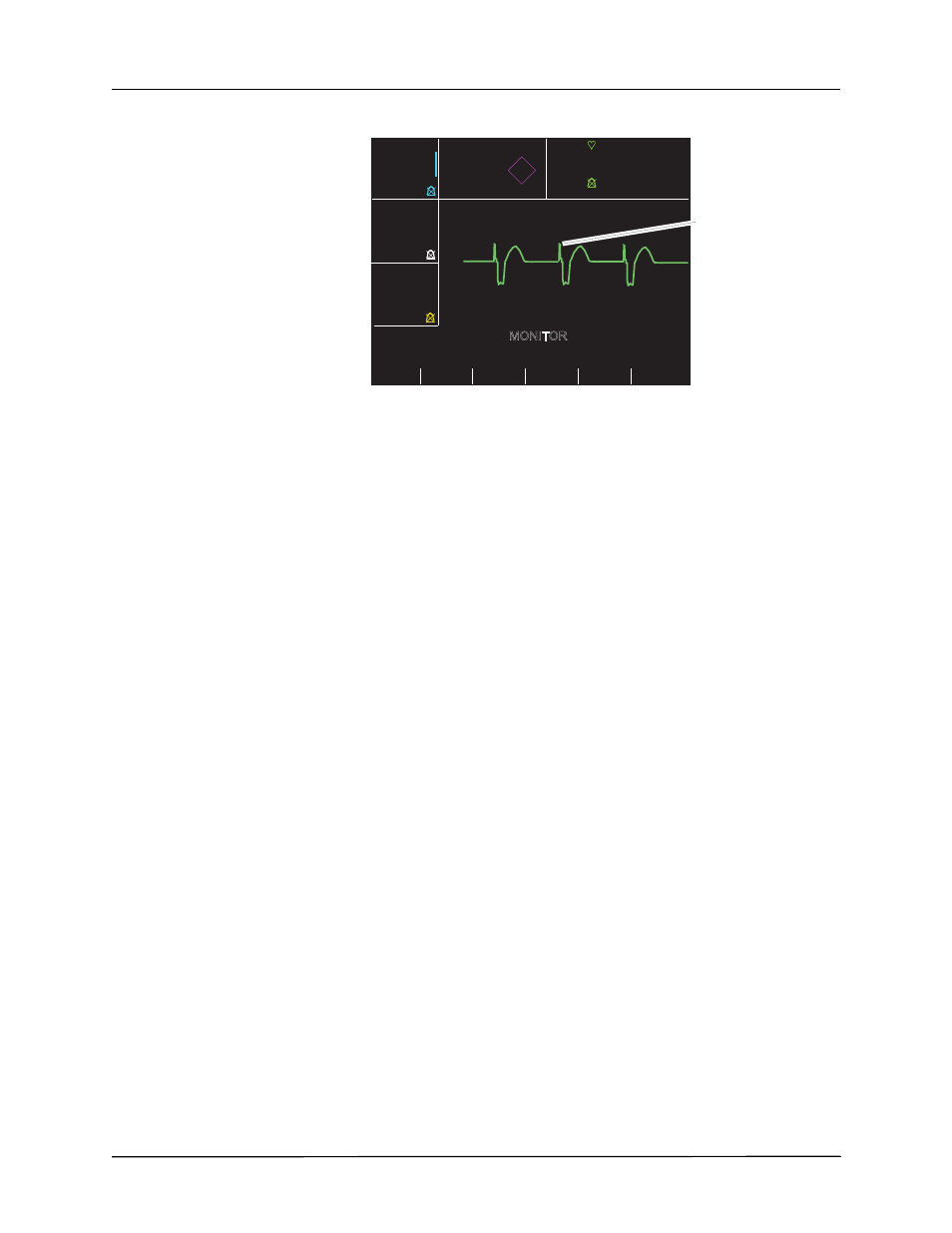

Param
