Common Tasks
9650-0912-01 Rev. K
ZOLL R Series Operator’s Guide
2–13
Common Tasks
Follow the instructions in the subsequent sections for:
•
“Replacing a Battery Pack” on page 2-13.
•
“Adjusting Display Brightness” on page 2-13.
•
“Using Code Markers” on page 2-14.
Replacing a Battery Pack
To remove a battery pack, press the tab on the end of the battery pack inward, and lift the
battery pack out of the compartment.

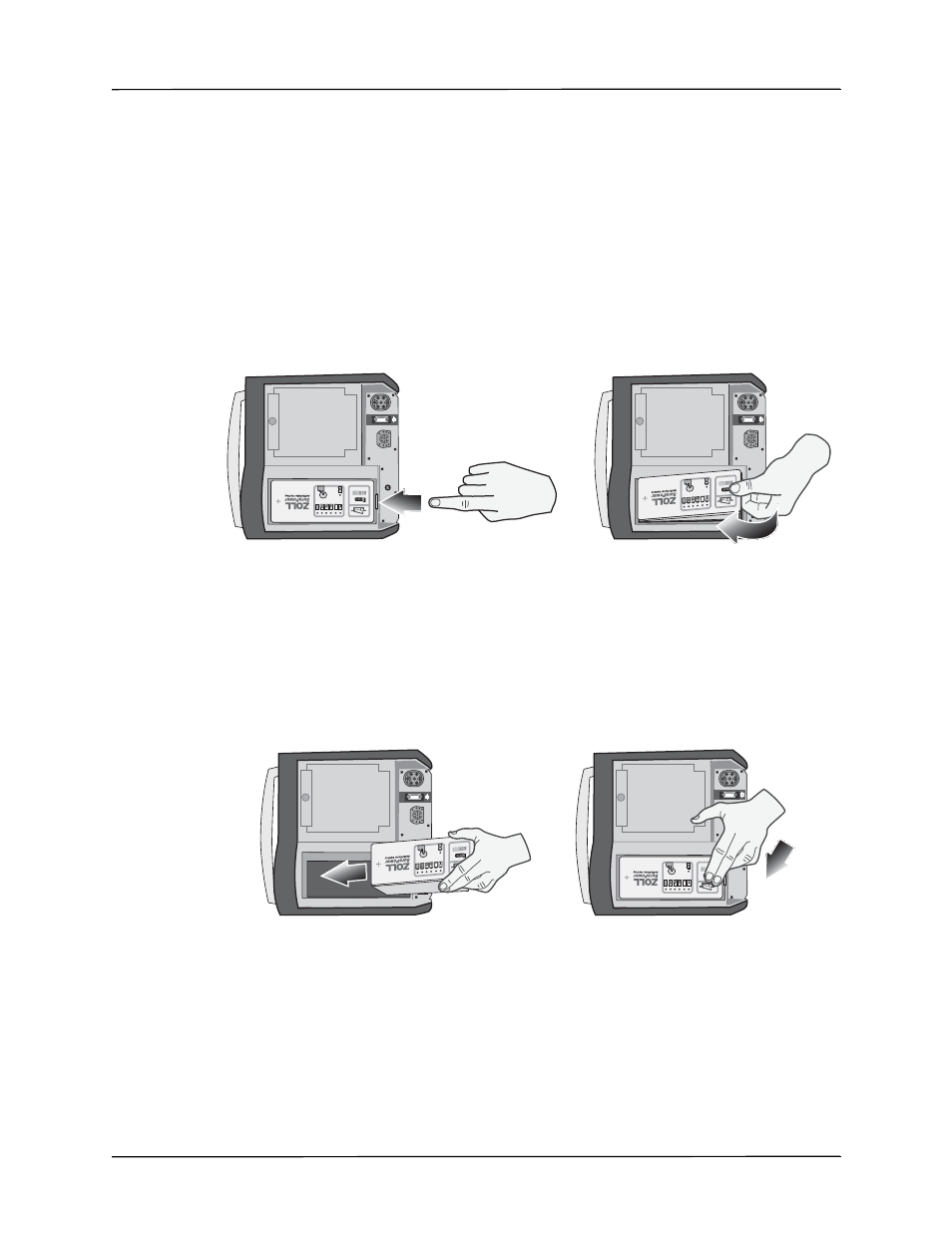

Figure 2-12.
Removing a Battery Pack
To install a battery pack:
1. Place the end of the battery pack opposite the tab into the end of the compartment closest to
the front of the unit.
2.
Lower the tabbed end of the battery pack into the compartment and press down on the tabbed
end until it locks into place.
Figure 2-13.
Installing a Battery Pack
Adjusting Display Brightness
To adjust brightness:
1. Press the Options softkey.
?
?
3P/3P
/
3P/3P
/
?
?
3P/3P
/
3P/3P
/
