A PPENDIX A S PECIFICATIONS
A–14 www.zoll.com 9650-0912-01 Rev. K
* For all energy levels, accuracy is equal to either ±15% or 3 joules, whichever is greater.
The R Series Rectilinear Biphasic waveform employs the same first and second phase timing,
similar first and second phase currents/voltages, and essentially the same mechanisms for
controlling defibrillation waveshape as the ZOLL M Series
®
defibrillator. The M Series and
R Series defibrillation waveforms are considered substantially equivalent.
Figures A-1 through A-21 show the Rectilinear Biphasic waveforms that are produced when
the R Series defibrillator is discharged into loads of 25, 50, 75, 100, 125, 150, and 175 ohms at
each energy setting.
The vertical axis shows the current in amperes (A); the horizontal axis shows the duration of
time in milliseconds (ms).

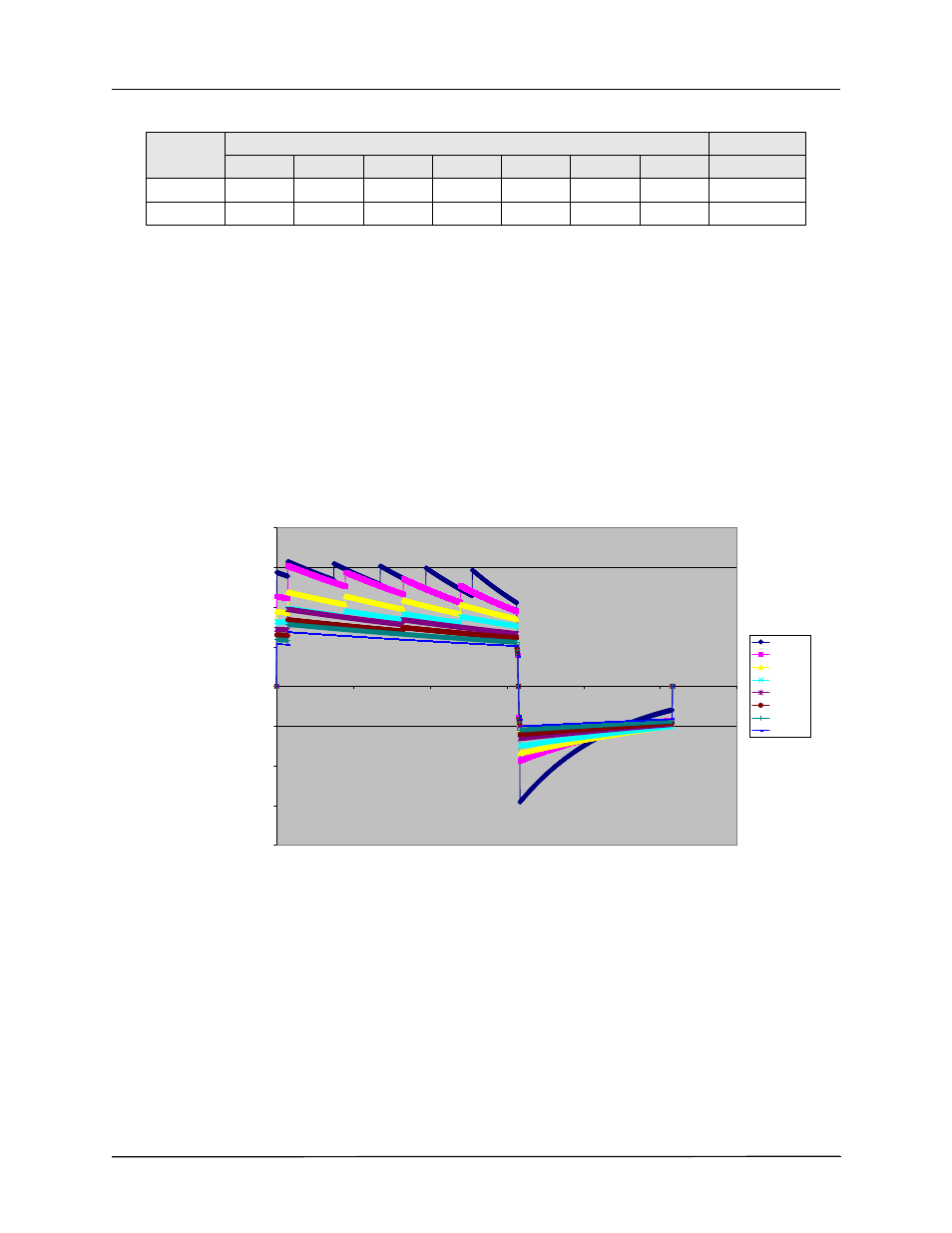

Figure A-1. Rectilinear Biphasic Waveform at 200 Joules
150 J 107 J 164 J 180 J 183 J 188 J 184 J 179 J ±15%
200 J 142 J 230 J 249 J 253 J 269 J 261 J 260 J ±15%
Table A-2. Delivered Energy at Every Defibrillator Setting into a Range of Loads
Selected
Energy
Load
25

50

75

100

125

150

175

Accuracy*
-40
-30
-20
-10
0
10
20
30
40
0 2 4 6 8 10 12
ms
A
25 Ohm
50 Ohm
75 Ohm
100 Ohm
125 Ohm
150 Ohm
175 Ohm
200 Ohm
